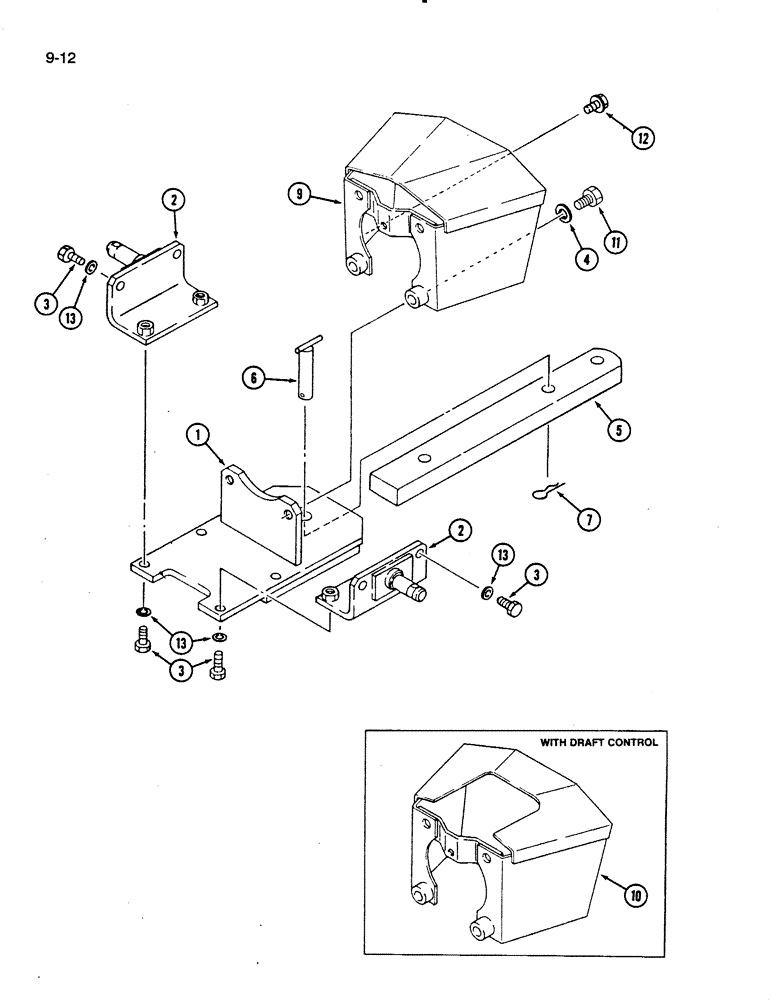

Запчасти Case IH 275 (9-12) - DRAWBAR AND PTO SHIELD (09) - CHASSIS/ATTACHMENTS

1

1962432C1

BRACKET

- drawbar

1шт.

2

1962433C1

BRACKET

- mounting

2шт.

3

813-14035

BOLT,Hex, M14 x 2 x 35mm, Cl 8.8, Full Thd

- hex, M14 x 35 mm

8шт.

4

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

1шт.

5

1962434C2

BAR

DRAWBAR - towing

1шт.

6

1962431C1

HITCH PIN

PIN - drawbar

1шт.

7

1273156C1

AXLE PIN

PIN - hair

1шт.

9

1963118C1

SHIELD

- PTO (Without draft control)

1шт.

10

1962435C1

COVER ASSY

SHIELD - PTO (With draft control)

1шт.

11

814-14050

BOLT,Hex, M14 x 2 x 50mm, Cl 8.8

2шт.

12

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

13

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

- hardened, 15 x 28 x 3 mm

8шт.
