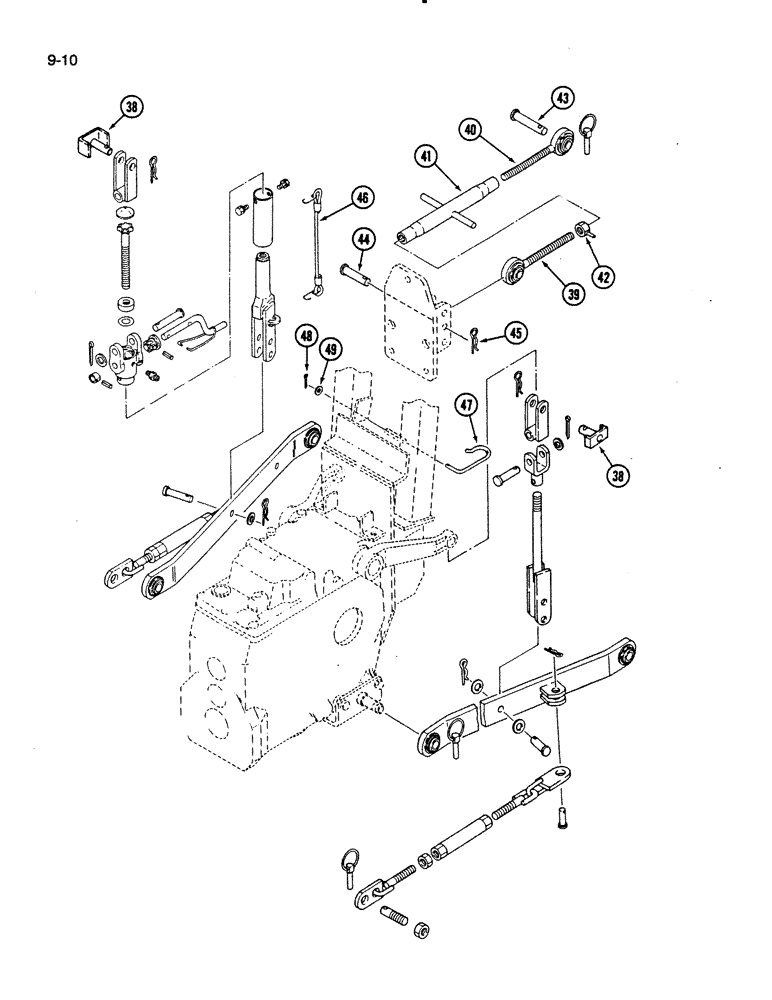

Запчасти Case IH 275 (9-10) - THREE POINT HITCH (CONTD) (09) - CHASSIS/ATTACHMENTS

38

1962405C1

AXLE PIN

PIN - lift arm

2шт.

1962633C1

DRAG LINK

LINK ASSEMBLY - upper (Replaces 1962421C1), Includes: Ref. 39 - 42

1шт.

39

1273306C1

ADJUSTER

ROD - upper link, left (Replaces 1962409C1)

1шт.

40

1273307C1

ADJUSTER

ROD - upper link, right (Replaces 1962410C1)

1шт.

41

1273308C1

TURNBUCKLE

- upper link (Replaces 1962418C1)

1шт.

42

1273316C1

LOCK NUT

- lock, upper link

1шт.

43

1273157C2

PIN

- clevis, upper link

1шт.

44

1273155C1

AXLE PIN

PIN - upper link, headed, 75 mm long

1шт.

45

1273156C1

AXLE PIN

PIN - hair

1шт.

46

1273313C1

STRAP

- retaining, upper link

1шт.

47

1963107C1

HOOK

- upper link

1шт.

48

632-604

PIN - cotter, 3 x 20 mm

1шт.

49

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.
