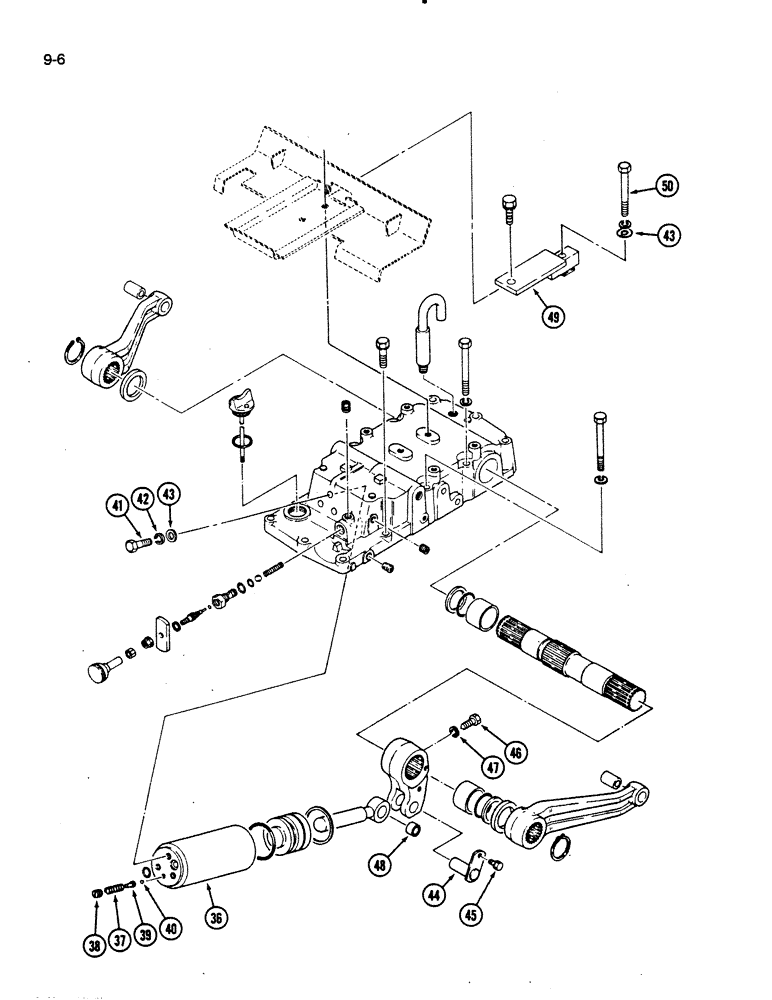

Запчасти Case IH 275 (9-06) - HITCH SYSTEM, HOUSING, ROCKSHAFT, LIFT ARMS AND PISTON (CONTD) (09) - CHASSIS/ATTACHMENTS

36

1962298C1

CYLINDER BLOCK

CYLINDER ASSEMBLY - lift, Includes: Ref. 37 - 40

1шт.

37

1963079C1

VALVE SPRING

SPRING - cylinder

1шт.

38

1963080C1

SCREW

- cylinder

1шт.

39

1963081C1

SEAT

- cylinder

1шт.

40

17004R1

BALL,1/8" Dia

- steel, 1/8 inch (3 mm) diameter

1шт.

41

514-831

BOLT,Hex, M12 x 1.25 x 45mm, Cl 8.8, Full Thd

- steel, M12 x 1.25 x 45 mm

3шт.

42

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

3шт.

43

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

44

1275059C1

AXLE PIN

PIN - pivot

1шт.

45

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

46

1963628C1

BOLT (SPREADER),M8 - 1.25 x 25mm

BOLT - hex special, M8 x 25 mm (Replaces 1269864C1)

1шт.

47

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

48

1275194C1

BUSHING

- piston rod

1шт.

49

1962286C1

SUPPORT ASSY.

SUPPORT - cover

1шт.

Ref. 49 - Bolt above is 514-832

1шт.

50

814-12130

BOLT,Hex, M12 x 1.75 x 130mm, Cl 8.8

1шт.
