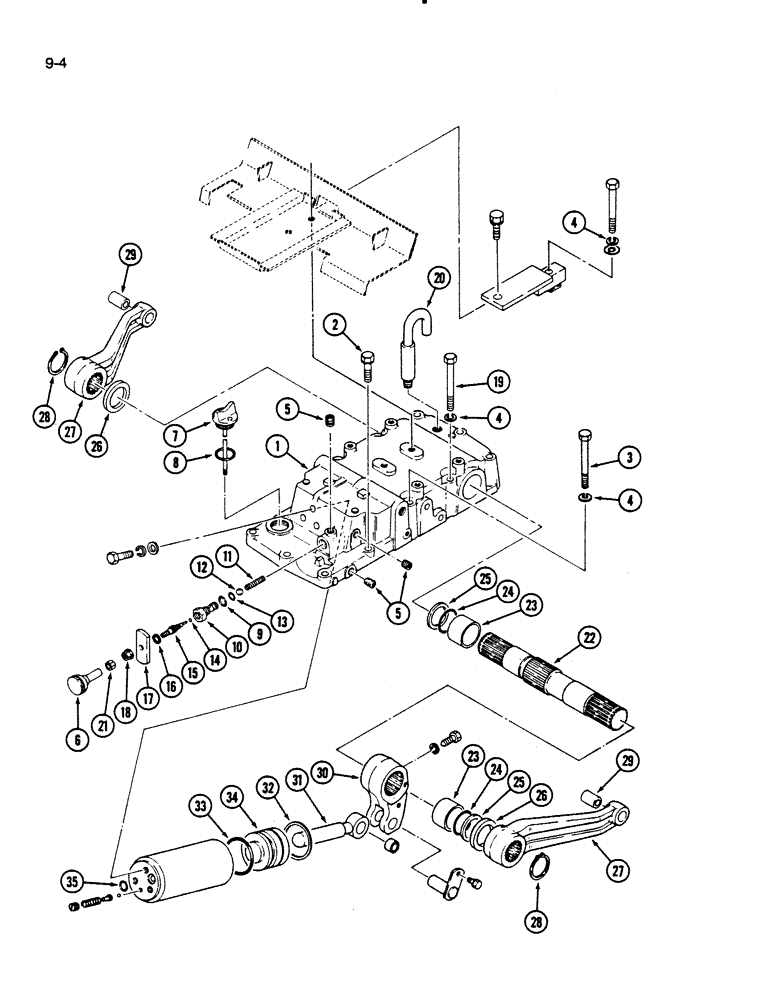

Запчасти Case IH 275 (9-04) - HITCH SYSTEM, HOUSING, ROCKSHAFT, LIFT ARMS AND PISTON (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
1962299C1
HOUSING
- rockshaft
1шт.
2
514-831
BOLT,Hex, M12 x 1.25 x 45mm, Cl 8.8, Full Thd
- hex, M12 x 1.25 x 45 mm
1шт.
892-11012
LOCK WASHER,M12
WASHER, LOCK, M12
4шт.
3
814-12100
BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8
3шт.
4
892-11012
LOCK WASHER,M12
WASHER, LOCK, M12
6шт.
5
444692
PLUG,Hex Soc, 1/4"-18
- hex socket head, 1/4 - 18 automatic pipe
3шт.
6
99231C1
KNOB
- adjuster
1шт.
7
1962287C1
PLUG
DIPSTICK - fluid level
1шт.
8
1269877C1
O-RING
- 28 mm ID
1шт.
9
1273524C1
O-RING
O-RING - 14 mm ID
1шт.
10
1275053C1
UNION
SLEEVE - pilot screw
1шт.
11
1963615C1
VALVE SPRING
SPRING - pilot screw (Replaces 1962293C1)
1шт.
12
17012R1
BALL,3/8" Dia
1шт.
13
1273522C1
O-RING
O-RING - 10 mm ID
1шт.
14
1273521C1
O-RING
O-RING - 6 mm ID
1шт.
15
1962292C1
ADJUSTMENT SCREW
SCREW - pilot
1шт.
16
1275052C1
WAVE WASHER
- spring
1шт.
17
1275049C1
BAR
PLATE - stop
1шт.
18
86505868
SERRATED NUT,Hex, M8 x 1.25, Cl 8
1шт.
19
1962291C1
BOLT (SPREADER),Hex, M12 x 1.75 x 107mm
BOLT - hex, 107 mm long
2шт.
20
1269861C1
VENTILATION PIPE,10.5 mm Diameter, 50, 37 mm Length
TUBE - vent pipe
1шт.
21
825-1108
NUT,Hex, M8, Cl 8
1шт.
22
1962295C1
SHAFT HOUSING
ROCKSHAFT - hitch
1шт.
23
1981367C1
SPACER
BUSHING - housing, 50 mm long (Replaces 1273299C1)
2шт.
24
1282531C1
O-RING
O-RING - 45 mm ID
2шт.
25
1962290C1
COLLAR CLAMP
SPACER - rockshaft, 5 mm wide
2шт.
26
1962289C1
COLLAR CLAMP
SPACER - rockshaft, 12 mm wide
2шт.
27
1962294C1
ARM
- lift
2шт.
28
933572R1
SNAP RING,M42, Ext
RING - retaining, external, 38 mm ID
2шт.
29
1963078C1
BUSHING
- lift arm
2шт.
30
1962297C1
ARM
- power
1шт.
31
1275058C1
ROD
- piston
1шт.
32
1275056C1
RING
- back up (Replaces 1275061C1)
1шт.
33
1269883C1
O-RING
O-RING - 60 mm ID
1шт.
34
1962288C1
PISTON ASSY.
PISTON - lift
1шт.
35
1273524C1
O-RING
O-RING - 14 mm ID
1шт.
