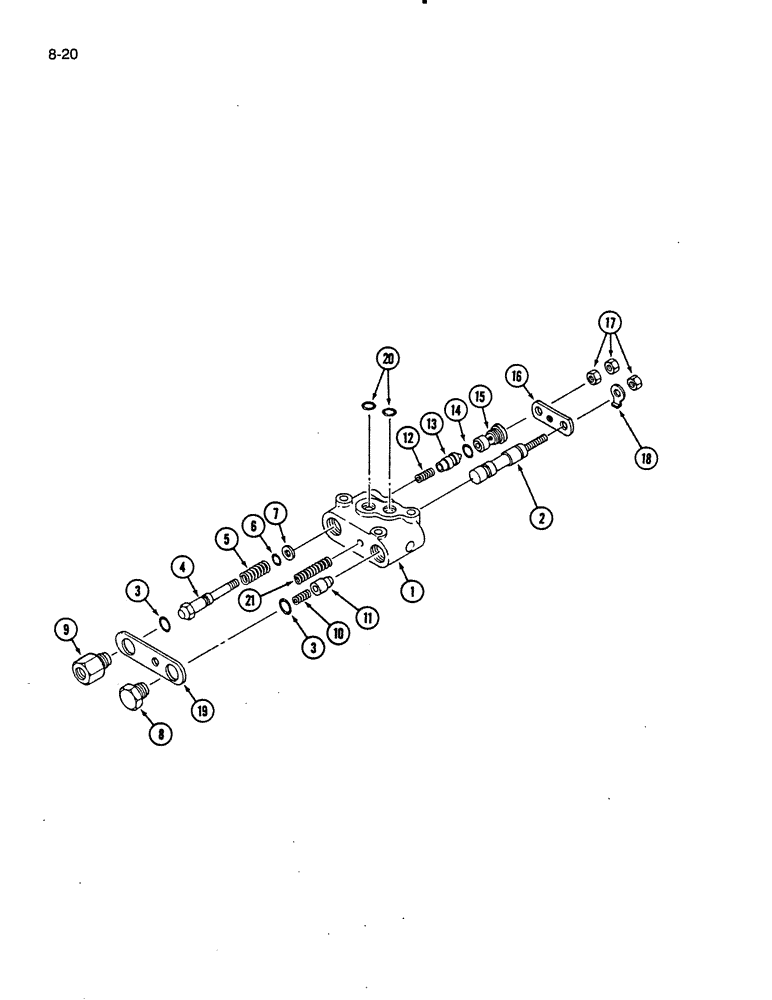

Запчасти Case IH 275 (8-20) - HYDRAULIC CONTROL VALVE (08) - HYDRAULICS

1962320C1

LOCK VALVE

VALVE ASSEMBLY - control, hydraulic, Includes: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve (Order 1962320C1)

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - control valve (Order 1962320C1)

1шт.

3

1282754C1

O-RING

O-RING - 15 mm ID

2шт.

4

1282755C1

LOCK VALVE

VALVE - poppet

1шт.

5

1282756C1

VALVE SPRING

SPRING - valve poppet

1шт.

6

1273520C1

O-RING

O-RING - 7 mm ID

1шт.

7

1282608C1

RING

- backup

1шт.

8

1282757C1

PLUG

- unloader valve

1шт.

9

1963114C1

PLUG

- seat

1шт.

10

1282759C1

VALVE SPRING

SPRING - valve

1шт.

11

1282760C1

LOCK VALVE

VALVE - unloader

1шт.

12

1282761C1

VALVE SPRING

SPRING - check valve

1шт.

13

1282762C1

LOCK VALVE

VALVE - check

1шт.

14

1282763C1

O-RING

O-RING - 9 mm ID

1шт.

15

1282764C1

STOP

SEAT - check valve

1шт.

16

1963115C1

PLATE ASSY.

PLATE - valve

1шт.

17

1282766C1

NUT

- hex, jam

3шт.

18

1282767C1

LOCK WASHER

- lock, tab

1шт.

19

1282768C1

PLATE ASSY.

PLATE - end, valve

1шт.

20

1273523C1

O-RING

O-RING - 12 mm ID

2шт.

21

1963116C1

VALVE SPRING

SPRING - return

1шт.
