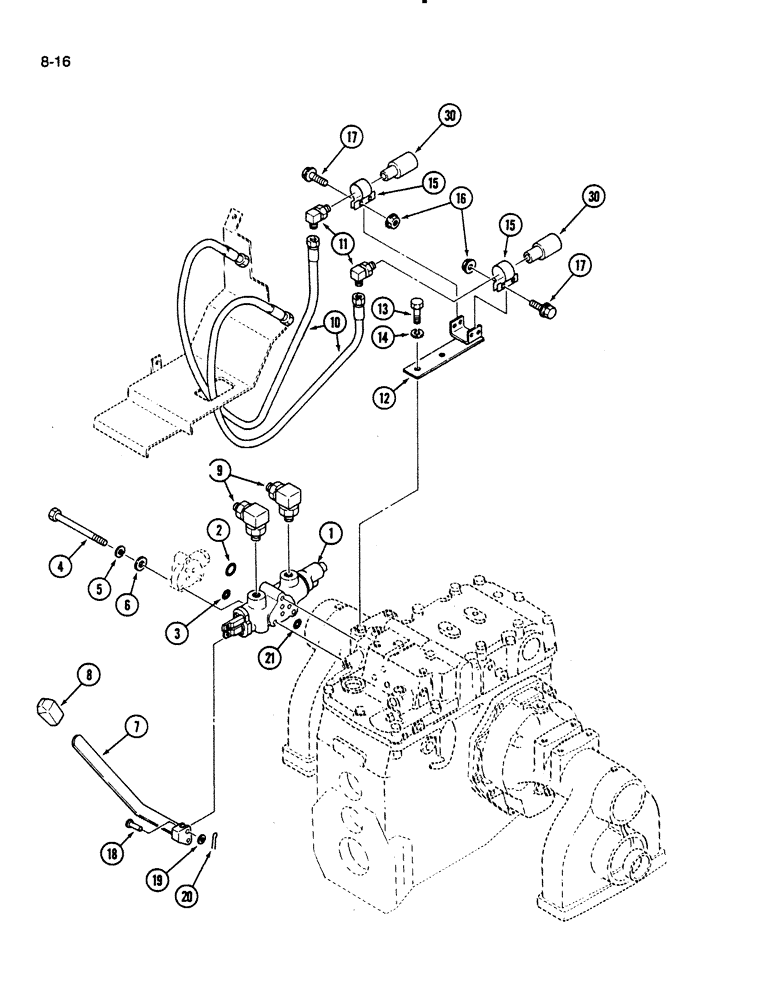

Запчасти Case IH 275 (8-16) - AUXILIARY VALVE (08) - HYDRAULICS

99082C1

KIT

- auxiliary valve, with coupler, Includes: Ref. 1 - 30

1шт.

1

1288097C91

LOCK VALVE

VALVE ASSEMBLY - auxiliary

1шт.

2

1288101C1

O-RING

O-RING - 16 mm ID

1шт.

3

1282749C1

O-RING

O-RING - 12 mm ID

3шт.

4

814-8130

BOLT,Hex, M8 x 1.25 x 130mm, Cl 8.8

- hex, M8 x 130 mm, 5.12 inches

3шт.

5

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

3шт.

7

1962928C1

LEVER

- auxiliary valve

1шт.

8

1273379C1

KNOB

- lever

1шт.

9

1962933C1

ELBOW UNION

ELBOW - 90 degree

2шт.

10

1962929C1

HOSE ASSY.

HOSE ASSEMBLY - coupler, 930 mm long

2шт.

11

1962934C1

FITTING

CONNECTOR ASSEMBLY - coupler to hose, Includes: o-ring

2шт.

NSS

NOT SOLD SEPARAT

O-RING - connector (Order 1962934C1)

1шт.

12

1962930C1

BRACKET

- coupler

1шт.

13

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

- M12 x 25 mm

2шт.

14

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

15

1962931C1

CLAMP

- coupler

2шт.

16

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

4шт.

17

931431R1

BOLT,Hex, M8 x 20, 8.8, Full Thd

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

4шт.

18

20155R1

CLEVIS PIN,3/16" x .719"

PIN - clevis, 3/16 x 23/32 inch

2шт.

19

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

20

632-526

PIN - cotter, 1x 10 mm

2шт.

21

1282749C1

O-RING

O-RING - 12 mm ID

3шт.

30

1282338C91

COUPLING, QUICK, FEM

COUPLER ASSEMBLY - breakaway, Includes: ring

2шт.

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

RING - sealing

1шт.
