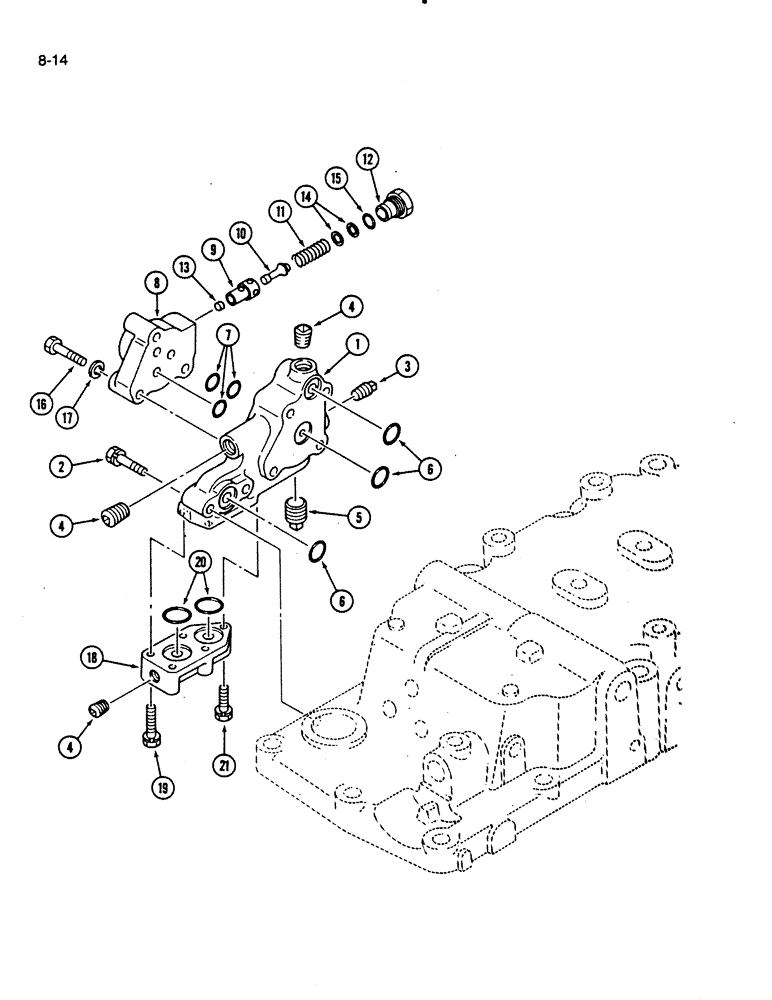

Запчасти Case IH 275 (8-14) - HYDRAULIC ADAPTER (08) - HYDRAULICS

1

1962330C1

BLOCK

ADAPTER - hydraulic

1шт.

(Power Beyond)

1шт.

2

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

3шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

3

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

1шт.

4

444692

PLUG,Hex Soc, 1/4"-18

- hex socket, 1/4-18 automotive pipe

13шт.

5

103885

PLUG,Slotted, 3/8" NPT

- slotted, headless, 3/8 PT

1шт.

6

1288101C1

O-RING

O-RING - 16 mm ID

3шт.

7

1282749C1

O-RING

O-RING - 12 mm ID

3шт.

8

1962332C1

COVER ASSY

COVER ASSEMBLY - hydraulic, Includes: Ref. 9 - 15

1шт.

9

1265309C1

HOUSING

- poppet

1шт.

10

1265310C1

LOCK VALVE

VALVE - poppet

1шт.

11

1265311C1

VALVE SPRING

SPRING - poppet

1шт.

12

1963082C1

PLUG

- poppet

1шт.

13

1265308C1

PLUG

- cover

1шт.

14

1265314C1

SET

SHIM SET - cover assembly poppet

1шт.

15

1265312C1

O-RING,0.614" ID x 0.754" OD x 0.07"

O-RING - 16 mm ID

1шт.

16

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

3шт.

17

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

18

1962331C1

COVER ASSY

COVER - adapter

1шт.

(Remove for Power Beyond) 12/14/95

1шт.

19

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

4шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

20

1962521C1

O-RING

- 22 mm ID

2шт.

21

814-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, M6 x 25 mm

1шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.
