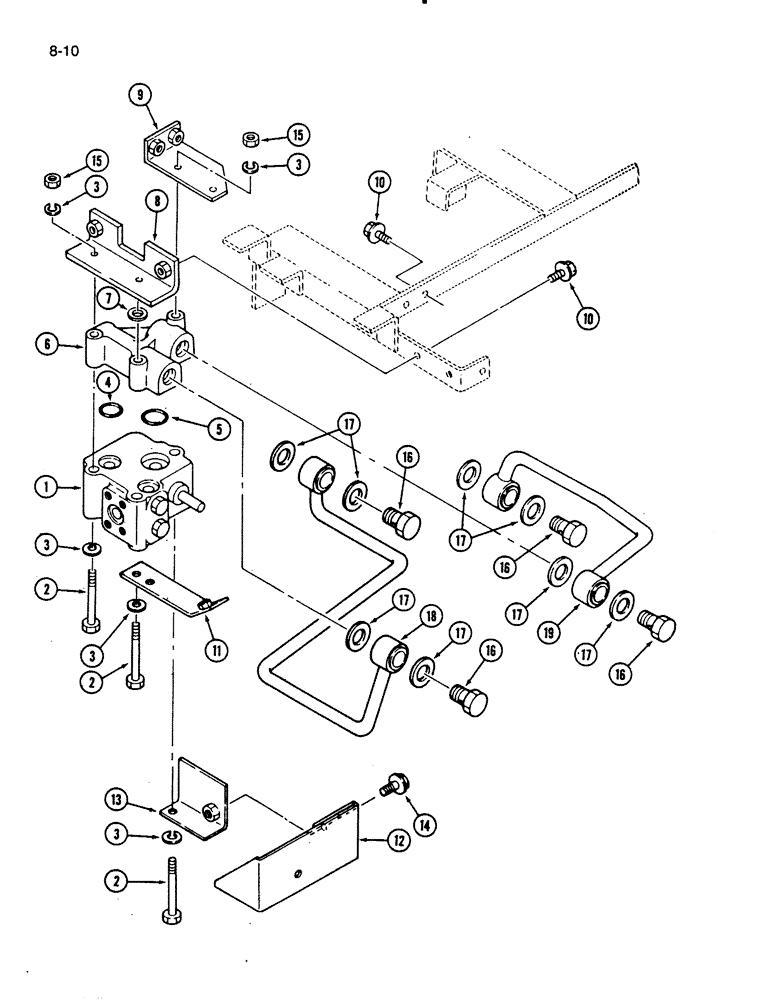

Запчасти Case IH 275 (8-10) - FLOW DIVIDER VALVE AND LINES (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - flow divider, See Figure 8-12

1шт.

2

814-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

- hex, M8 x 90 mm

3шт.

3

892-1108

LOCK WASHER,M8

6шт.

4

1273793C1

O-RING

O-RING - 14 mm ID

2шт.

5

1269872C1

O-RING

- 20 mm ID

1шт.

6

1962358C1

BLOCK

COVER - valve

1шт.

7

1962351C1

WASHER

- flat, special

1шт.

8

1962352C1

BRACKET

- mounting

1шт.

9

1962353C1

BRACKET

- mounting

1шт.

10

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

4шт.

11

1962354C1

BRACKET

- cover mounting

1шт.

12

1962359C1

COVER ASSY

COVER - valve

1шт.

13

1962355C1

BRACKET

- cover mounting

1шт.

14

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

2шт.

15

525-5115

NUT,M12 x 1.25, Cl 8

- hex, M8, Grade 10

3шт.

16

1273414C1

BOLT,Hex, M16 x 25mm, Drilled

BOLT - special

4шт.

17

1963085C1

SEALING WASHER

- seal

8шт.

18

1962356C1

TUBE

- return

1шт.

19

1962360C1

TUBE

- clutch

1шт.
