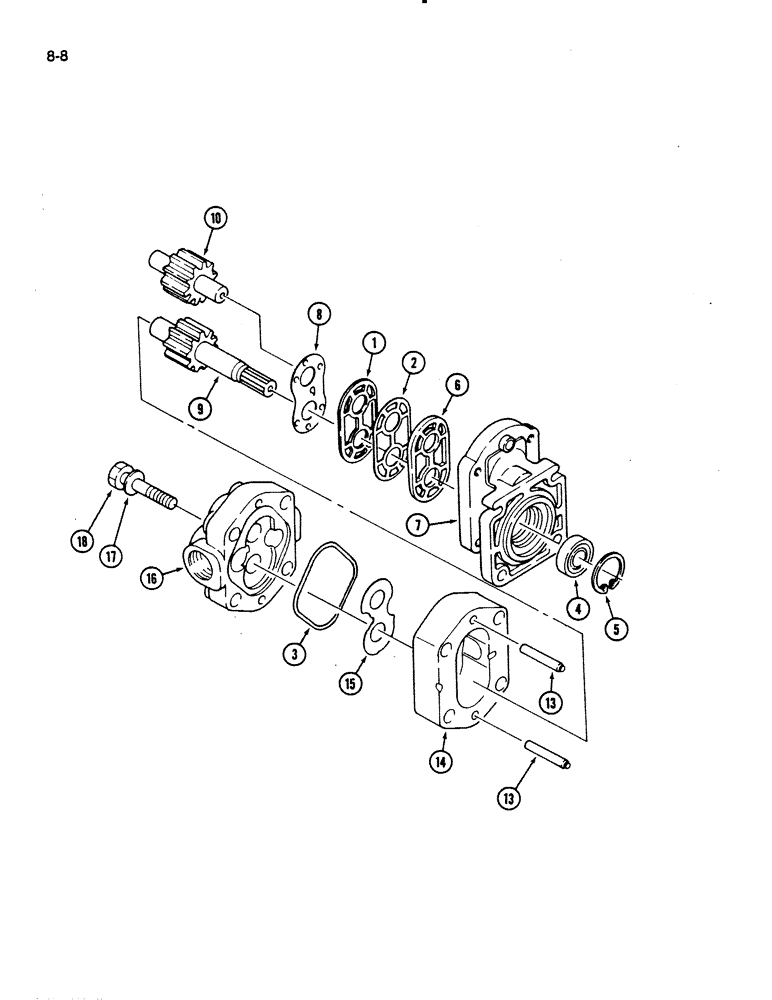

Запчасти Case IH 275 (8-08) - MAIN HYDRAULIC PUMP (08) - HYDRAULICS

1962341C1

PUMP

- hydraulic, Includes: Ref. 1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

GASKET - pump

1шт.

Part of Hydraulic Pump Seal Kit, P/N 1963086C1

1шт.

2

NSS

NOT SOLD SEPARAT

GASKET - pump

1шт.

Part of Hydraulic Pump Seal Kit, P/N 1963086C1

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - pump

1шт.

Part of Hydraulic Pump Seal Kit, P/N 1963086C1

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil

11шт.

Part of Hydraulic Pump Seal Kit, P/N 1963086C1

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

Part of Hydraulic Pump Seal Kit, P/N 1963086C1

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - pump

1шт.

Part of Hydraulic Pump Seal Kit, P/N 1963086C1

1шт.

7

NSS

NOT SOLD SEPARAT

COVER - pump, front

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE - pump

1шт.

9

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

10

NSS

NOT SOLD SEPARAT

GEAR - idler

1шт.

13

NSS

NOT SOLD SEPARAT

DOWEL - pump

2шт.

14

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - pump

1шт.

16

NSS

NOT SOLD SEPARAT

COVER - pump

1шт.

17

NSS

NOT SOLD SEPARAT

WASHER - pump

4шт.

18

NSS

NOT SOLD SEPARAT

BOLT - pump

4шт.

1963086C1

PUMP

SEAL KIT - hydraulic pump, Includes: Ref. 1 - 6

1шт.
