(8-04) - HYDRAULIC PUMP AND LINES (CONTD)

Запчасти Case IH 275 (8-04) - HYDRAULIC PUMP AND LINES (CONTD) (08) - HYDRAULICS

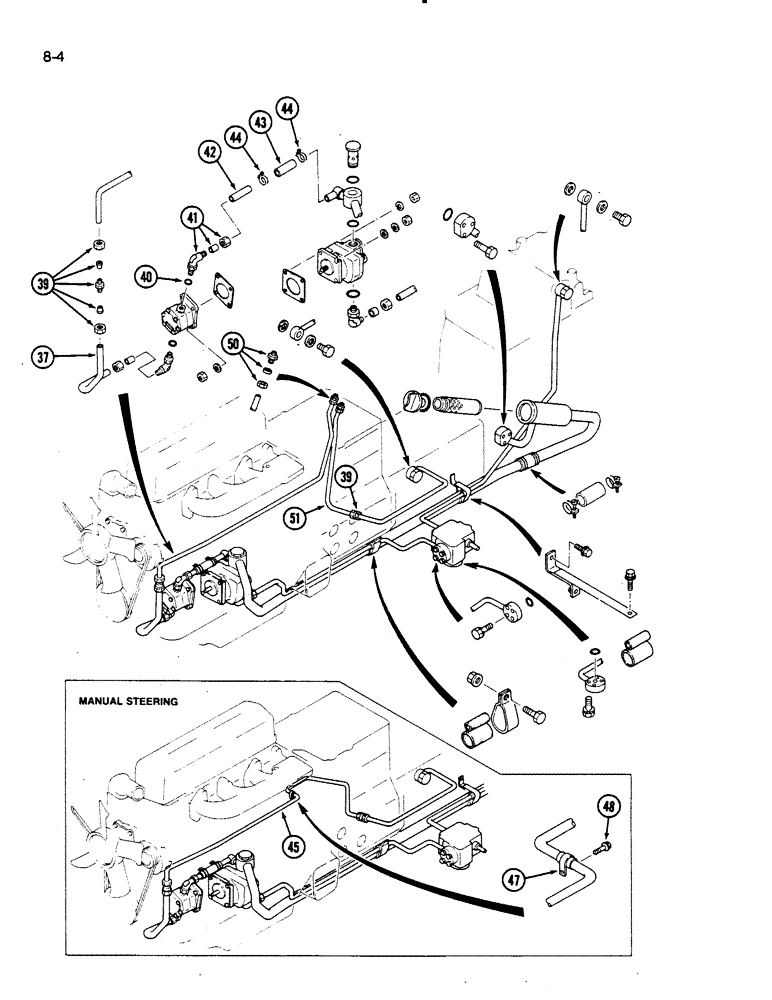

Схема запчастей Case IH 275 - (8-04) - HYDRAULIC PUMP AND LINES (CONTD) (08) - HYDRAULICS
37
50
40
48
47
41
44
45
43
39
44
42
51
39
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

37

1962337C1

TUBE

- pressure

1шт.

39

1273774C1

UNION

CONNECTOR - straight

2шт.

40

1269871C1

O-RING,17.8mm ID x 2.4mm Width

- 18 mm ID

1шт.

41

1963013C1

ELBOW UNION

ELBOW - 90 degree

1шт.

42

1962339C1

TUBE,15 mm Diameter, 50 mm Length

- 70 mm long

1шт.

43

1962340C1

HYDRAULIC HOSE

HOSE - rubber, 70 mm long

1шт.

44

27861R1

HOSE CLAMP,#10, .56/1.06 Type F Worm, W/liner

CLAMP - hose

2шт.

45

1962347C1

TUBE

- pressure (Manual steering)

1шт.

47

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- tube (Manual steering)

1шт.

48

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm, (Manual steering)

1шт.

50

1275158C2

CONNECTOR, ELEC

CONNECTOR - 12 mm tube x 3/8 inch PT (Power steering)

2шт.

51

1963084C1

TUBE

- return (Power steering)

1шт.
