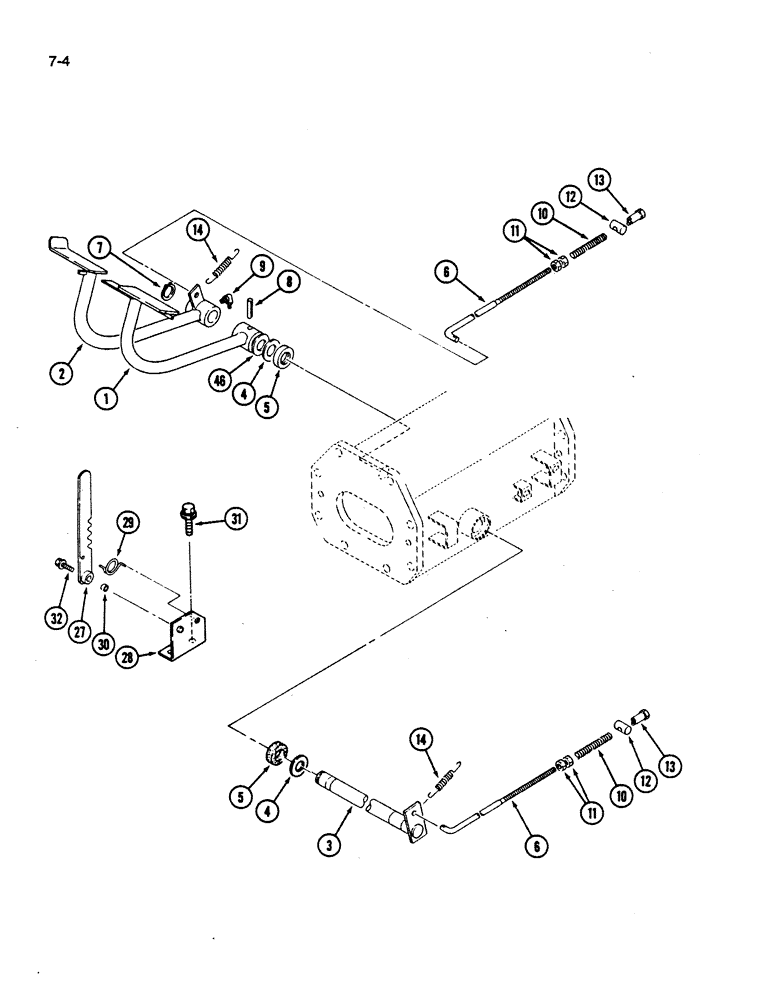

Запчасти Case IH 275 (7-04) - BRAKE CONTROLS (07) - BRAKES

1

1962250C1

PEDAL

- brake, left

1шт.

2

1962251C1

PEDAL

- brake, righ

1шт.

3

1962252C1

SHAFT HOUSING

SHAFT - brake pedal

1шт.

4

896-12024

WASHER,26mm ID x 44mm OD x 5mm Thk

- flat, 26 x 44 x 5 mm

2шт.

5

1273180C1

OIL SEAL

SEAL - oil

2шт.

6

1962246C1

ROD

- brake

2шт.

7

933128R1

SNAP RING,M25, Ext

RING - retaining, external, 23 mm ID

1шт.

8

30332R1

LOCK PIN,M8 x 40 Slotted

PIN - spring

1шт.

9

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING - grease, 65 degree, 1/8 inch PT

2шт.

10

1962247C1

VALVE SPRING

SPRING - brake rod

2шт.

11

525-5115

NUT,M12 x 1.25, Cl 8

- hex, M8, Grade 10

4шт.

12

1962248C1

SUPPORT ASSY.

STOP - spring

2шт.

13

1962249C1

NUT

- adjustment

2шт.

14

1288345C1

VALVE SPRING

SPRING - pedal return (Replaces 1962242C1)

2шт.

27

1962254C1

RATCHET

- parking

1шт.

28

1962255C1

BRACKET

- ratchet mounting

1шт.

29

1269820C1

VALVE SPRING

SPRING - ratchet

1шт.

30

1269821C1

SPACER

- ratchet

1шт.

31

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

2шт.

32

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, M8 x 25 mm

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

1шт.

46

1963039C1

WASHER

SHIM - brake pedal

1шт.
