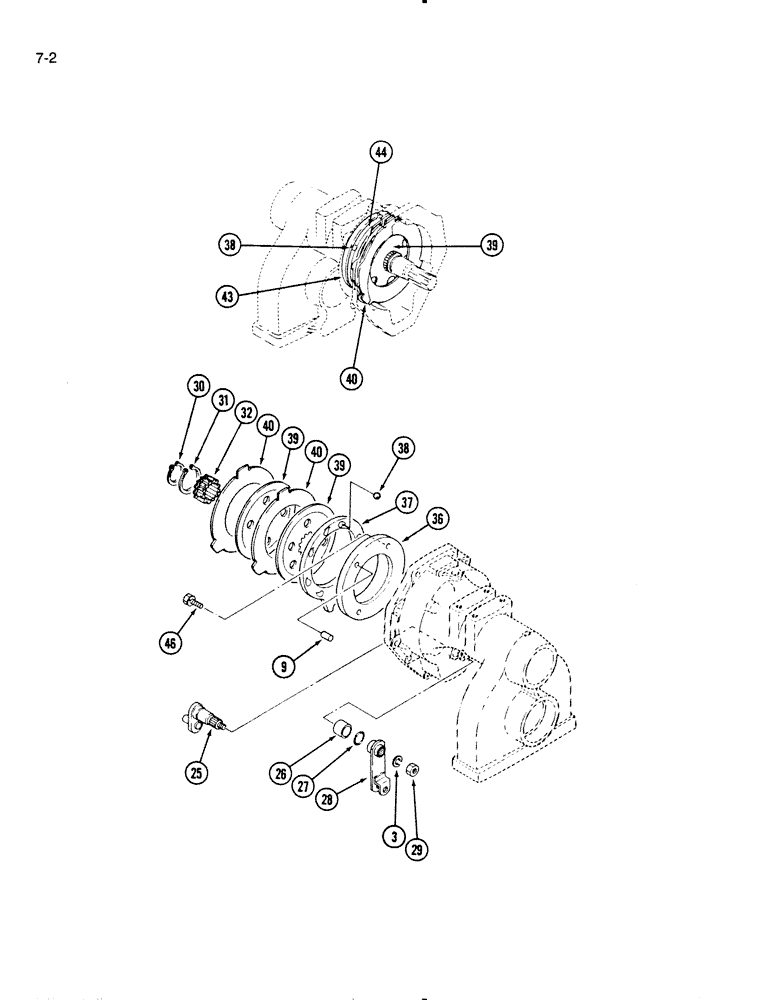

Запчасти Case IH 275 (7-02) - BRAKES (07) - BRAKES

3

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

25

1963601C1

ARM

- brake, inner (Replaces 1962171C1)

2шт.

26

1963021C1

BUSHING

- brake arm

2шт.

27

1269873C1

O-RING

O-RING - 21 mm ID

2шт.

28

1962181C1

LEVER

- brake

2шт.

29

1963588C1

NUT

- hex jam special, M12

2шт.

30

933683R1

SNAP RING,M36, Ext

- retaining, external, 33 mm ID

2шт.

31

933030R1

SNAP RING,M55, Ext

RING - retaining, external, 50 mm ID

2шт.

32

1962172C1

COLLAR CLAMP

COLLAR - splined

2шт.

36

1962183C1

GUIDE

- ball, left brake

1шт.

37

1962184C1

PLATE ASSY.

PLATE - cam, left brake

1шт.

1963625C1

STRIPPER PACKAGE

KIT - balls, steel (Replaces 1962481C1), Includes: Ref. 38

2шт.

38

NSS

NOT SOLD SEPARAT

BALL - steel

16шт.

1963626C1

DISC

ASSEMBLY - brake, Includes: Ref. 39 & 40

2шт.

39

NSS

NOT SOLD SEPARAT

DISC - brake

4шт.

40

NSS

NOT SOLD SEPARAT

PLATE - brake

4шт.

43

1962186C1

PLATE ASSY.

PLATE - cam, right brake

1шт.

44

1962188C1

GUIDE

- ball, right brake

1шт.

46

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

- hex, M10 x 25 mm, Grade 10.9

4шт.

892-11010

LOCK WASHER,M10

4шт.
