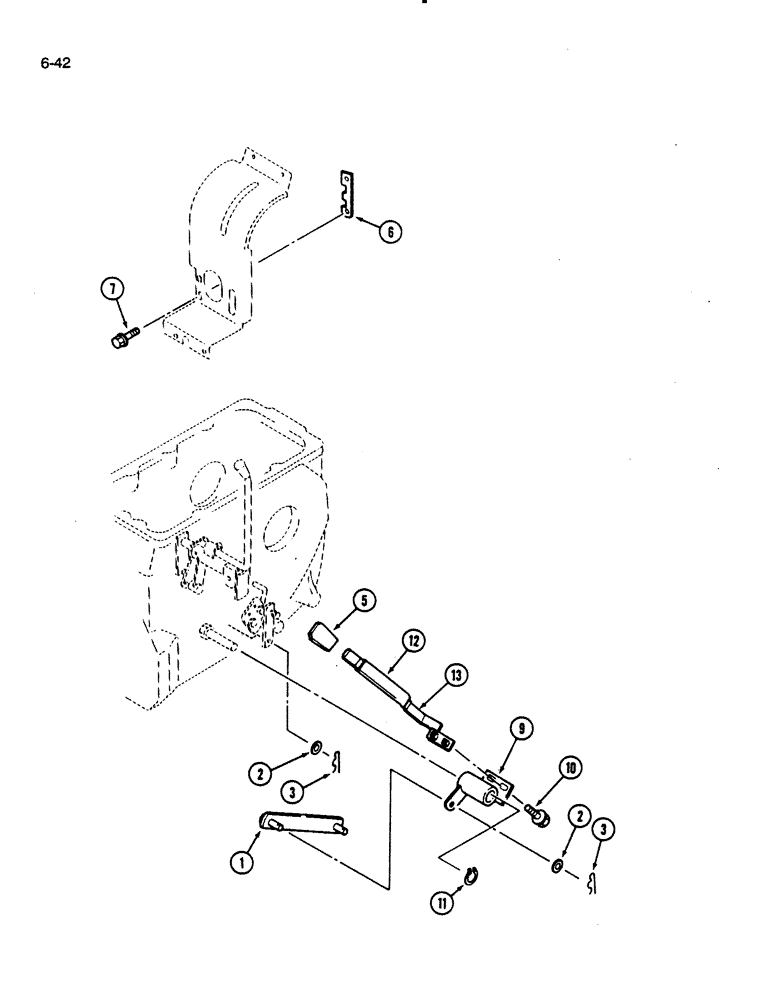

Запчасти Case IH 275 (6-42) - MID PTO CONTROLS (06) - POWER TRAIN

1

1962284C1

DRAG LINK

BRACKET - mid PTO linkage

1шт.

2

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

3

1269735C1

AXLE PIN

PIN - hair

2шт.

5

1273379C1

KNOB

- power takeoff lever

1шт.

6

1962283C1

PLATE ASSY.

PLATE - guide

1шт.

7

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

895-1106

WASHER

- flat, 6 x 12 x 2 mm

2шт.

9

1963000C1

LEVER

ARM - shift, mid PTO

1шт.

10

815-8020

BOLT - hex, M8 x 20 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

11

933123R1

SNAP RING,M20, Ext

RING - retaining, external, 18 mm ID

1шт.

12

1962999C1

LEVER

ASSEMBLY - mid PTO, Includes: Ref. 13

1шт.

13

1963005C1

TUBE

- PTO lever

1шт.
