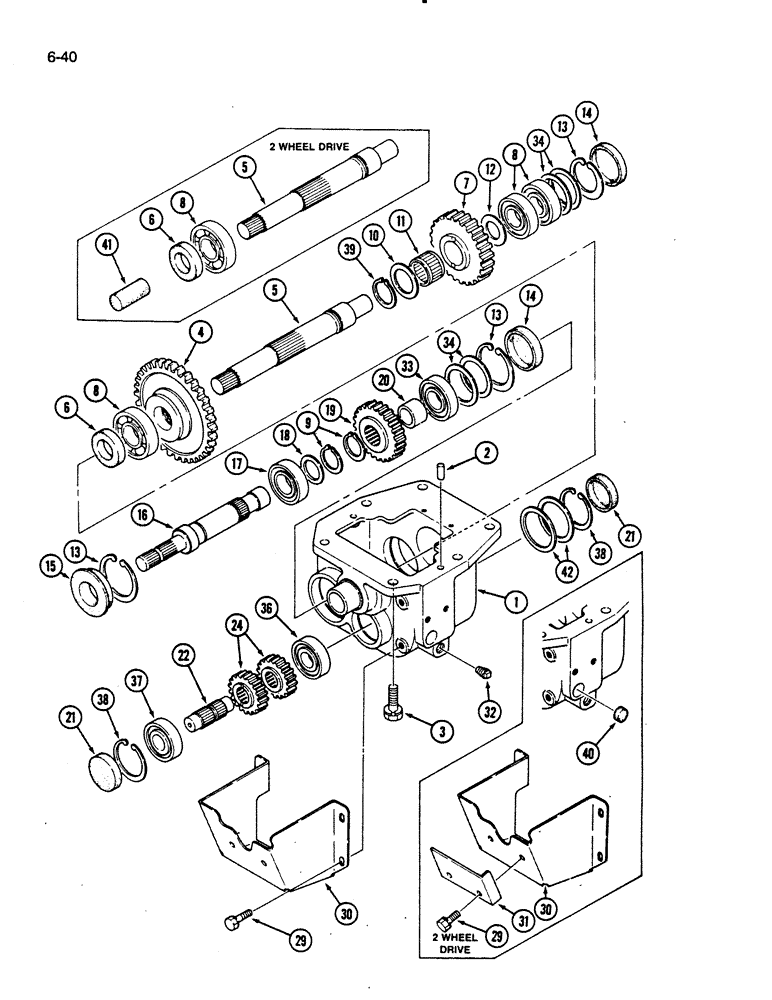

Запчасти Case IH 275 (6-40) - MID PTO, FOR TWO AND FOUR WHEEL DRIVE UNITS (06) - POWER TRAIN

1

1962079C1

CASE

HOUSING - mid PTO

1шт.

2

1963004C1

AXLE PIN

PIN - dowel

2шт.

3

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

6шт.

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

6шт.

4

1962068C1

GEAR WHEEL

GEAR - 42 tooth (MFD Tractors)

1шт.

5

1962080C1

SHAFT HOUSING

SHAFT - mid PTO

1шт.

6

1962550C1

OIL SEAL

SEAL - oil

1шт.

7

1962077C1

GEAR WHEEL

GEAR - 32 tooth

1шт.

8

1271864C91

CRANKSHAFT BEARING

BEARING ASSEMBLY - ball

3шт.

9

933086R1

SNAP RING,M30, Ext

- retaining, external, 28 mm ID

2шт.

10

99200C1

WASHER

- flat (Replaces 1963002C1)

1шт.

11

1962538C1

BEARING ASSY

BEARING - needle, 32 mm ID

1шт.

12

1273579C1

WASHER

SPACER - grooved, 42 mm OD

1шт.

13

933108R1

SNAP RING,M62, Int

RING - retaining, internal, 66 mm OD

3шт.

14

1269508C1

PLUG

CAP - rubber

2шт.

15

1962466C1

OIL SEAL

SEAL - oil

1шт.

16

1962081C1

SHAFT HOUSING

SHAFT - mid PTO

1шт.

17

1271858C91

BALL BEARING

BEARING ASSEMBLY - ball

1шт.

18

1273133C1

WASHER

- thrust

1шт.

19

1962072C1

GEAR WHEEL

GEAR - 25 tooth

1шт.

20

1962073C1

COLLAR CLAMP

COLLAR - 34 mm OD x 20 mm long

1шт.

21

1269521C1

PLUG

SEAL - cap

2шт.

22

1962074C1

SHAFT HOUSING

SHAFT - mid PTO idler, 18 tooth

1шт.

24

1962075C1

GEAR WHEEL

GEAR - 17tooth

2шт.

29

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

30

1962082C1

COVER ASSY

COVER - mid PTO (MFD Tractors)

1шт.

31

1962078C1

COVER ASSY

COVER - mid PTO (2WD Tractors)

1шт.

32

103885

PLUG,Slotted, 3/8" NPT

- slotted, headless, 3/8 inch PT

1шт.

33

1273574C91

BEARING, BALL

BEARING - ball, 25 mm ID

1шт.

1273013C2

STRIPPER PACKAGE

SHIM KIT - mid PTO shaft, Includes: shims

1шт.

34

NSS

NOT SOLD SEPARAT

SHIM - 0.006 inch (0.15 mm) thick

2шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.016 inch (0.4 mm) thick

2шт.

36

1271862C91

BEARING, BALL

BEARING ASSEMBLY - ball, 20 mm ID

1шт.

37

1273747C91

BEARING, BALL

BEARING ASSEMBLY - ball, 20 mm ID, non-sealed type

1шт.

38

933032R1

SNAP RING,M52, Int

RING - retaining, internal, 56 mm OD

2шт.

39

933082R1

SNAP RING,M32, Ext

RING - retaining, external, 29 mm ID

1шт.

40

1962638C1

SEAL

SEAL - cap (2WD Tractors)

1шт.

41

1962998C1

CYLINDER END CAP

CAP - (2WD Tractors)

1шт.

1963144C1

SHIM

KIT - shim, Includes: Ref. 42

1шт.

42

NSS

NOT SOLD SEPARAT

SHIM - 0.006 inch (0.15 mm) thick

2шт.

42

NSS

NOT SOLD SEPARAT

SHIM - 0.016 inch (0.4 mm) thick

2шт.
