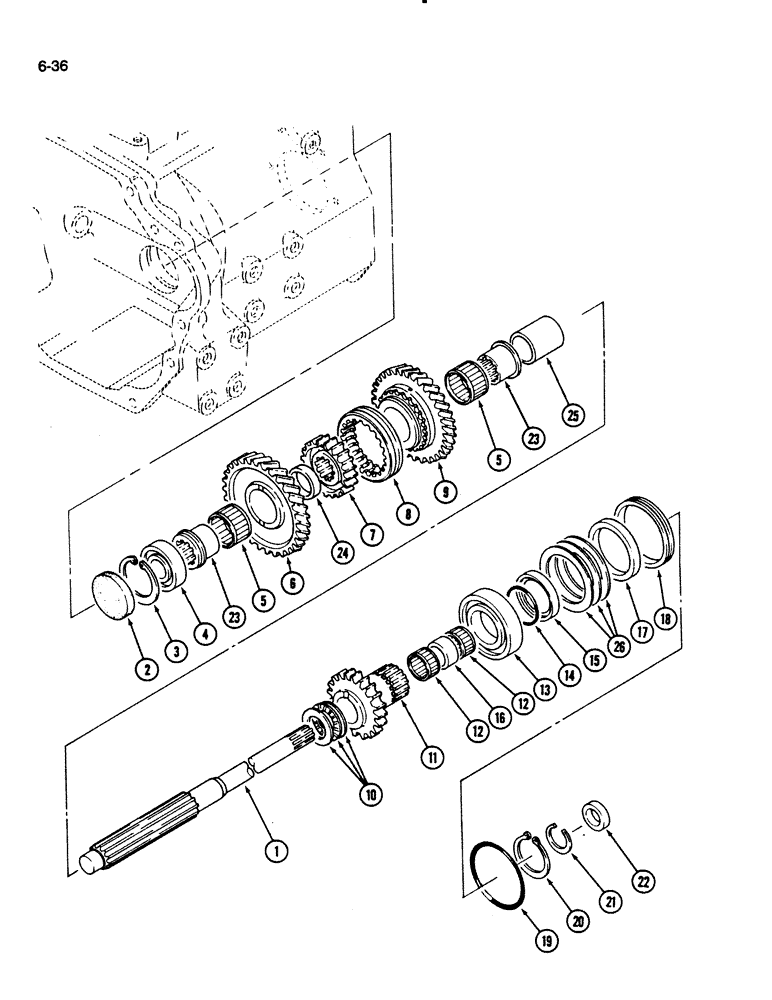

Запчасти Case IH 275 (6-36) - PTO COUNTERSHAFT (06) - POWER TRAIN

1

1961972C1

SHAFT HOUSING

SHAFT - PTO

1шт.

2

1963242C1

SEAL ASSY.

PLUG - rubber (Replaces 1269429C1)

1шт.

3

933108R1

SNAP RING,M62, Int

RING - retaining, internal, 66 mm OD

1шт.

4

1962986C1

BALL BEARING,25 mm ID x 62 mm OD x 17 mm

BEARING - countershaft

1шт.

5

1273332C91

NEEDLE BEARING

ASSEMBLY - needle

2шт.

6

1961971C1

GEAR WHEEL

GEAR - 48 tooth

1шт.

7

1961959C1

HUB CAP

HUB - 30 splines, 36 tooth

1шт.

8

1269516C1

GEAR WHEEL

GEAR - 36 tooth

1шт.

9

1961970C1

GEAR WHEEL

GEAR - 40 tooth

1шт.

10

1961960C1

THRUST BEARING,47 mm ID x 30 mm OD x 11 mm

BEARING - thrust

1шт.

11

1961961C1

GEAR WHEEL

GEAR - 26 tooth

1шт.

12

1273329C91

NEEDLE BEARING

ASSEMBLY - needle

2шт.

13

1271860C91

BEARING, BALL

BEARING ASSEMBLY - ball

1шт.

14

1282531C1

O-RING

O-RING - 45 mm ID

1шт.

15

1961962C1

COLLAR CLAMP

COLLAR - 58 mm OD

1шт.

16

1962987C1

COLLAR CLAMP

COLLAR - bearing

1шт.

17

1962551C1

OIL SEAL

SEAL - oil

1шт.

18

1961963C1

COLLAR CLAMP

COLLAR - grooved, 85 mm OD

1шт.

19

1962515C1

O-RING

O-RING - 80 mm ID

1шт.

20

933283R1

SNAP RING,M45, Ext

RING - retaining, external, 41 mm ID

1шт.

Ref #2 - (Tapered)

1шт.

21

1963056C1

RING

- retaining

1шт.

22

1962552C1

OIL SEAL

SEAL - oil

1шт.

23

1961964C1

RETAINER

- bearing

2шт.

24

1961965C1

COLLAR CLAMP

COLLAR - 23/32 inch (18 mm) long

1шт.

25

1961966C1

COLLAR CLAMP

COLLAR - 2-5/8 inch (67 mm) long

1шт.

1963141C1

SHIM

KIT - shim, Includes: Ref. 26

1шт.

26

NSS

NOT SOLD SEPARAT

SHIM - PTO shaft, 0.006 inch (0.15 mm)

2шт.

26

NSS

NOT SOLD SEPARAT

SHIM - PTO shaft, 0.016 inch (0.4 mm)

2шт.

26

NSS

NOT SOLD SEPARAT

SHIM - PTO shaft, 0.031 inch (0.8 mm)

2шт.
