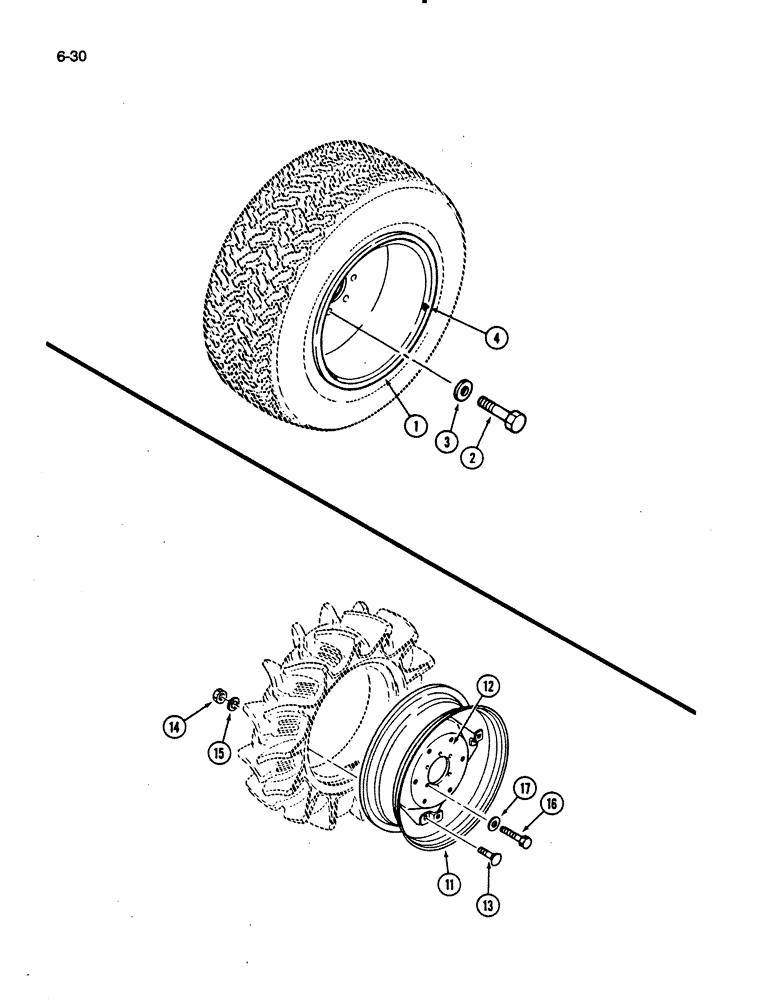

Запчасти Case IH 275 (6-30) - REAR WHEELS, ONE PIECE (06) - POWER TRAIN

1

99379C1

WHEEL (STEERING)

WHEEL - rear, W11 x 20 (For 355/80 PD Turf tire)

2шт.

1

1962452C1

WHEEL (STEERING)

WHEEL - rear, 16LB x 16.1 (For 18.4-16.1 PD Turf tire)

2шт.

2

514-917

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT - hex special, M14 x 30 mm

12шт.

3

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

- hardened, 15 x 28 x 3 mm

12шт.

4

NSS

NOT SOLD SEPARAT

VALVE - wheel (With 18.4-16.1 PD Turf tire)

2шт.

11

196244C1C

RIM - wheel, W10 x 24 (For 12.4-24 RI rear tire) (Shown), 2 piece disc

2шт.

11

1962446C1

RIM

- wheel, W11 x 24 (For 13.6-24 RI rear tire), 2 piece disc

2шт.

12

1962456C1

DISC

- wheel, W10 x 24 (For 12.4-24 R1 rear tire) (Replaces 1962442C1) (Shown), 2 piece rim

2шт.

12

1962447C1

DISK HARROW

DISC - wheel, W11 x 24 (For 13.6-24 RI rear tire), 2 piece rim

2шт.

13

1962457C1

BOLT (SPREADER),M16 x 1.5 x 37mm

BOLT - wheel, M16, 2 piece rim and disc

8шт.

14

525-5109

NUT,M16 x 1.5, Cl 8

- hex, M16 x 1.5 mm, 2 piece rim and disc

8шт.

15

934185R1

LOCK WASHER,M16

WASHER - lock, 16 mm, 2 piece rim and disc

8шт.

16

514-917

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT - hex special, M14 x 30 mm, 2 piece rim and disc

12шт.

17

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

- hardened, 15 x 28 x 3 mm (W10 x 24 rim), 2 piece rim and disc

12шт.

17

446229

WASHER,1/2" x 1 1/4" x .109"

- flat, 14 x 32 x 2 mm (W11 x 24 rim), 2 piece rim and disc

12шт.
