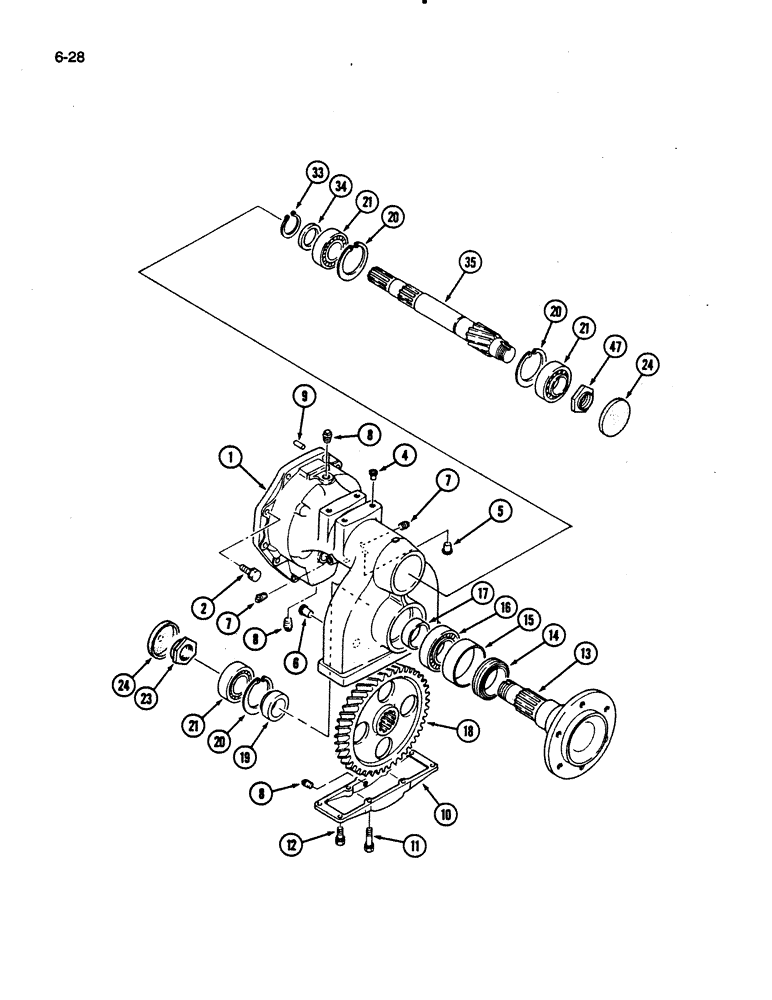

Запчасти Case IH 275 (6-28) - REAR AXLE FINAL DRIVE (06) - POWER TRAIN

1

1962177C1

HOUSING

- rear axle

2шт.

2

814-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hex, M12 x 40 min

20шт.

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

20шт.

4

NSS

NOT SOLD SEPARAT

PLUG - housing

8шт.

5

NSS

NOT SOLD SEPARAT

PLUG - housing

4шт.

6

NSS

NOT SOLD SEPARAT

PLUG - housing

4шт.

7

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

4шт.

8

103885

PLUG,Slotted, 3/8" NPT

- slotted, headless, 3/8 inch PT

6шт.

9

1963004C1

AXLE PIN

PIN - dowel

8шт.

10

1962178C1

PAN ASSY.

PAN - oil

2шт.

11

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, M8 x 35 mm

8шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

12

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, M8 x 25 mm

8шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

13

1962179C1

SHAFT HOUSING

SHAFT - axle, rear

2шт.

14

1962166C1

OIL SEAL

SEAL - oil

2шт.

15

1962167C1

COLLAR CLAMP

COLLAR - oil seal

2шт.

16

1963018C1

TAPERED BEARING

BEARING - taper roller, 55 mm ID

2шт.

17

1962168C1

COLLAR CLAMP

COLLAR - 52 mm ID

2шт.

18

1962180C1

GEAR WHEEL

GEAR - final drive, 67 tooth

2шт.

19

1962169C1

COLLAR CLAMP

COLLAR - 41 mm ID

2шт.

20

933154R1

SNAP RING,M80, Int

RING - retaining, internal, 86 mm OD

6шт.

21

1963015C1

TAPERED BEARING

BEARING - taper roller, 40 mm ID

6шт.

23

1963611C1

NUT

- bearing lock (Replaces 1963026C1)

2шт.

24

1962170C1

CYLINDER END CAP

CAP - rubber

4шт.

33

933075R1

SNAP RING,M40, Ext

RING - retaining, external, 36 mm ID

2шт.

34

1962173C1

COLLAR CLAMP

COLLAR - 55 mm OD x 5 mm thick

2шт.

35

1962182C1

SHAFT HOUSING

SHAFT - final drive

2шт.

47

1962176C1

NUT

- special, M35

2шт.
