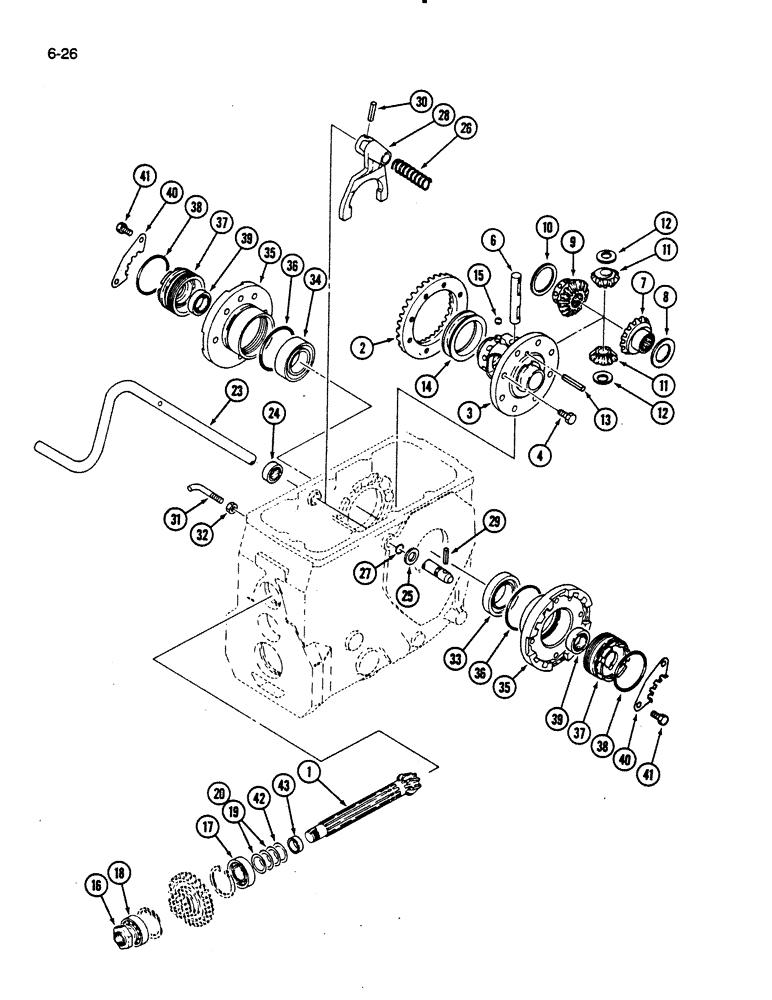

Запчасти Case IH 275 (6-26) - DIFFERENTIAL AND FINAL DRIVE (06) - POWER TRAIN

1963075C1

GEAR WHEEL

PINION AND RING GEAR - differential, Includes: Ref. 1 & 2

1шт.

1

NSS

NOT SOLD SEPARAT

SHAFT - pinion

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

3

1962053C1

CASE

HOUSING - differential

1шт.

4

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

8шт.

6

1962049C1

SHAFT HOUSING

SHAFT - side gears

1шт.

7

1962054C1

GEAR WHEEL

GEAR - side

1шт.

8

1962041C1

THRUST WASHER

- thrust

1шт.

9

1962055C1

GEAR WHEEL

GEAR - side

1шт.

10

1962042C1

THRUST WASHER

- thrust

1шт.

11

1962039C1

GEAR WHEEL

GEAR - pinion

2шт.

12

1962040C1

THRUST WASHER

- thrust

2шт.

13

30394R1

LOCK PIN,M6 x 50, Slotted

PIN - spring

1шт.

14

1962043C1

HUB CAP

HUB - differential lock

1шт.

15

17015R1

BALL,15/32" Dia

- 15/32 inch (12 mm) diameter

10шт.

16

1962038C1

NUT

- hex, special, M25 x 1.5 mm

1шт.

17

1963016C1

TAPERED BEARING

BEARING - taper roller (Prior to P.I.N. 17657689)

1шт.

17

1963620C1

TAPERED BEARING

BEARING - taper roller (P.I.N. CCJ0028001 and after)

1шт.

18

1963017C1

TAPERED BEARING

BEARING - taper roller

1шт.

1963143C1

KIT

- shim, pinion shaft (Prior to P.I.N. 17657689), Includes: Ref. 19

1шт.

19

NSS

NOT SOLD SEPARAT

SHIM - pinion shaft, 0.003 inch (0.075 mm)

1шт.

19

NSS

NOT SOLD SEPARAT

SHIM - pinion shaft, 0.006 inch (0.15 mm)

1шт.

19

NSS

NOT SOLD SEPARAT

SHIM - pinion shaft, 0.010 inch (0.25 mm)

1шт.

19

NSS

NOT SOLD SEPARAT

SHIM - pinion shaft, 0.030 inch (0.75 mm)

1шт.

1963621C1

SHIM

KIT - shim, pinion shaft (P.I.N. CCJ0028001 and after), Includes: Ref. 20

1шт.

20

NSS

NOT SOLD SEPARAT

SHIM - pinion shaft, 0.001 inch (0.05 mm)

1шт.

20

NSS

NOT SOLD SEPARAT

SHIM - pinion shaft, 0.003 inch (0.10 mm)

1шт.

20

NSS

NOT SOLD SEPARAT

SHIM - pinion shaft, 0.007 inch (0.20 mm)

1шт.

20

NSS

NOT SOLD SEPARAT

SHIM - pinion shaft, 0.031 inch (0.80 mm)

1шт.

23

1962056C1

SHAFT HOUSING

SHAFT - differential lock

1шт.

24

1962556C1

OIL SEAL

SEAL - oil

1шт.

25

1962044C1

WASHER

- flat, 30 mmm OD

1шт.

26

1962045C1

VALVE SPRING

SPRING - differential lock fork

1шт.

27

1288101C1

O-RING

O-RING - 16 mm ID

1шт.

28

1962050C1

FORK TEDDER

FORK - differential lock

1шт.

29

30419R1

LOCK PIN,M8 x 32, Slotted

PIN - slotted spring

1шт.

30

30332R1

LOCK PIN,M8 x 40 Slotted

PIN - slotted spring, M8 x 40 mm

1шт.

31

1962046C1

BOLT (SPREADER),M10 - 1.25 x 72mm

BOLT - stop

1шт.

32

525-5100

NUT,M10 x 1.25, Cl 8

- hex, M10 x 1.25 mm

1шт.

33

1963014C1

TAPERED BEARING

BEARING - taper roller

1шт.

34

1271861C91

BALL BEARING

ASSEMBLY - ball

1шт.

35

1962057C1

SUPPORT ASSY.

HOLDER - bearing

2шт.

36

1962513C1

O-RING

O-RING - bearing holder

2шт.

37

1962058C1

BEARING HOUSING

SCREW - adjusting

2шт.

38

1962515C1

O-RING

O-RING - adjusting screw

2шт.

39

1962555C1

OIL SEAL

SEAL - oil

2шт.

40

1962047C1

STRAP

- lock

4шт.

41

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

8шт.

42

1962048C1

SHIM

- pinion shaft, 0.059 inch (1.5 mm)

1шт.

43

1269535C1

SPACER

- inner race (P.I.N. CCJ0028001 and after)

2шт.
