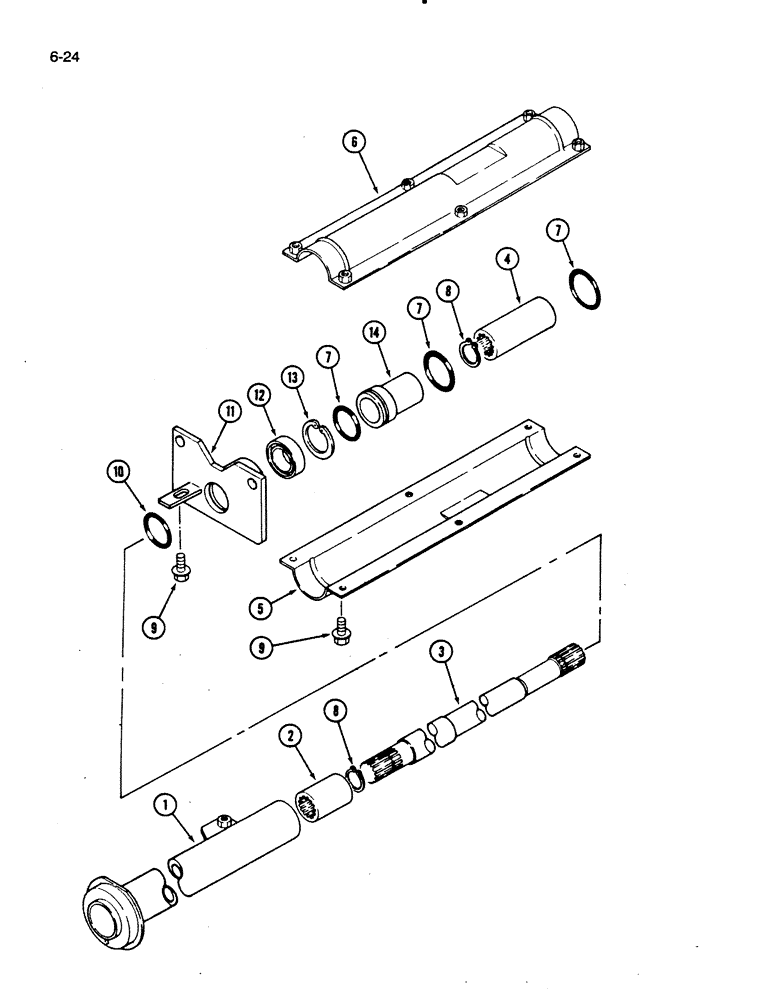

Запчасти Case IH 275 (6-24) - MFD DRIVE SHAFT (06) - POWER TRAIN

1

1962063C1

COVER ASSY

COVER - shaft

1шт.

2

1962059C1

COUPLING

COUPLER - front

1шт.

3

1962064C1

SHAFT

- drive

1шт.

4

1962060C1

JOINT TURNING

COUPLER - rear

1шт.

5

1962065C1

COVER ASSY

COVER - lower

1шт.

6

1962066C1

COVER ASSY

COVER - upper

1шт.

7

1962511C1

O-RING

- 39 mm ID

3шт.

8

933105R1

SNAP RING,M22, Ext

RING - retaining, external, 20 mm ID

2шт.

9

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

7шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

7шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

7шт.

10

1962512C1

O-RING

- 40 mm ID

1шт.

11

1962067C1

NOZZLE HOLDER

HOLDER - bearing

1шт.

12

1962061C1

BEARING, BALL,22 mm ID x 44 mm OD x 12 mm

BEARING ASSEMBLY - ball

1шт.

13

933233R1

SNAP RING,M45, Int

RING - retaining, external, 41 mm ID

1шт.

14

1962062C1

PIPE CLAMP

COLLAR - drive shaft

1шт.
