Запчасти Case IH 275 (6-20) - PTO CLUTCH (06) - POWER TRAIN

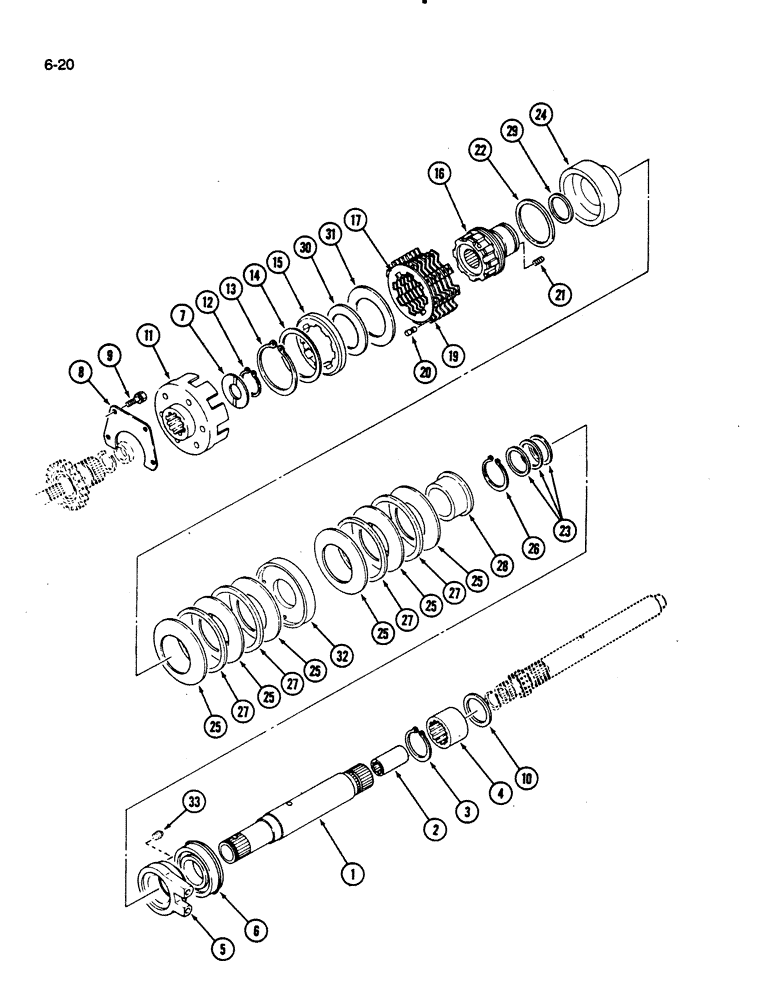

Схема запчастей Case IH 275 - (6-20) - PTO CLUTCH (06) - POWER TRAIN
8
25
25
21
13
27
14
27
23
4
2
7
11
3
30
27
15
24
28
6
20
25
25
22
29
32
33
26
16
9
12
25
5
25
27
31
19
17
10
1

Артикул

Название

Примечание

Количество

1

1961997C1

SHAFT HOUSING

SHAFT - clutch

1шт.

2

1269531C1

COUPLING

- countershaft

1шт.

3

933283R1

SNAP RING,M45, Ext

RING - retaining, external, 41 mm ID

1шт.

4

1961977C1

COUPLING

- clutch shaft

1шт.

5

1961998C1

RING

- oil port

1шт.

6

1963033C1

BALL BEARING

BEARING - ball

1шт.

7

1961979C1

LINING

WASHER - clutch

1шт.

8

1961980C1

PLATE ASSY.

PLATE - retaining

1шт.

9

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

10

1961984C1

LINING

SHIM - 0.020 inch (0.5 mm)

1шт.

11

1961975C1

CLUTCH ASSEMBLY

COVER - clutch

1шт.

12

933075R1

SNAP RING,M40, Ext

RING - retaining, external, 13 mm ID

1шт.

13

934290R1

SNAP RING,M90, Ext

RING - retaining, external, 84 mm ID

1шт.

14

1961978C1

SHIM

KIT - clutch, Includes: shims

1шт.

NSS

NOT SOLD SEPARAT

SHIM - clutch, 0.008 inch (0.2 mm)

1шт.

NSS

NOT SOLD SEPARAT

SHIM - clutch, 0.020 inch (0.5 mm)

1шт.

NSS

NOT SOLD SEPARAT

SHIM - clutch, 0.039 inch (1 mm)

1шт.

15

1961981C1

PLATE ASSY.

PLATE - back

1шт.

16

1963071C1

HUB CAP

HUB ASSEMBLY - clutch, Includes: Ref. 21

1шт.

Ref #16 - (See 1961976C1)

1шт.

1963074C1

SET

DISK ASSEMBLY - clutch, Includes: Ref. 17 - 20

1шт.

17

NSS

NOT SOLD SEPARAT

DISC - clutch

9шт.

19

NSS

NOT SOLD SEPARAT

PLATE - clutch

4шт.

20

NSS

NOT SOLD SEPARAT

PLUG - rubber

16шт.

21

NSS

NOT SOLD SEPARAT

SCREW - hub (Order Ref. 16)

5шт.

1963072C1

SET

KIT - seal ring, Includes: Ref. 29

1шт.

22

NSS

NOT SOLD SEPARAT

RING - seal

1шт.

23

1961989C1

RING

- seal

3шт.

REF 23 CONSISTS OF ALL 3 RINGS

1шт.

24

1961990C1

PISTON ASSY.

PISTON - clutch

1шт.

25

NSS

NOT SOLD SEPARAT

DISC - spring (Order 1963073C1)

6шт.

26

1961992C1

RING

- retaining

1шт.

27

NSS

NOT SOLD SEPARAT

SPACER - spring (Order 1963073C1)

4шт.

28

1961994C1

GUIDE

- spring

1шт.

29

NSS

NOT SOLD SEPARAT

RING - seal (Order 1963072C1)

1шт.

30

1961973C1

VALVE SPRING

SPRING - wave

1шт.

31

1961983C1

PLATE ASSY.

PLATE - clutch

1шт.

32

1961974C1

SUPPORT ASSY.

SUPPORT - spring (Order 1963073C1)

1шт.

33

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

2шт.

1963073C1

SET

KIT - clutch spring, Includes: Ref. 25, 27 and 32

1шт.

Выбрано товаров: 41
