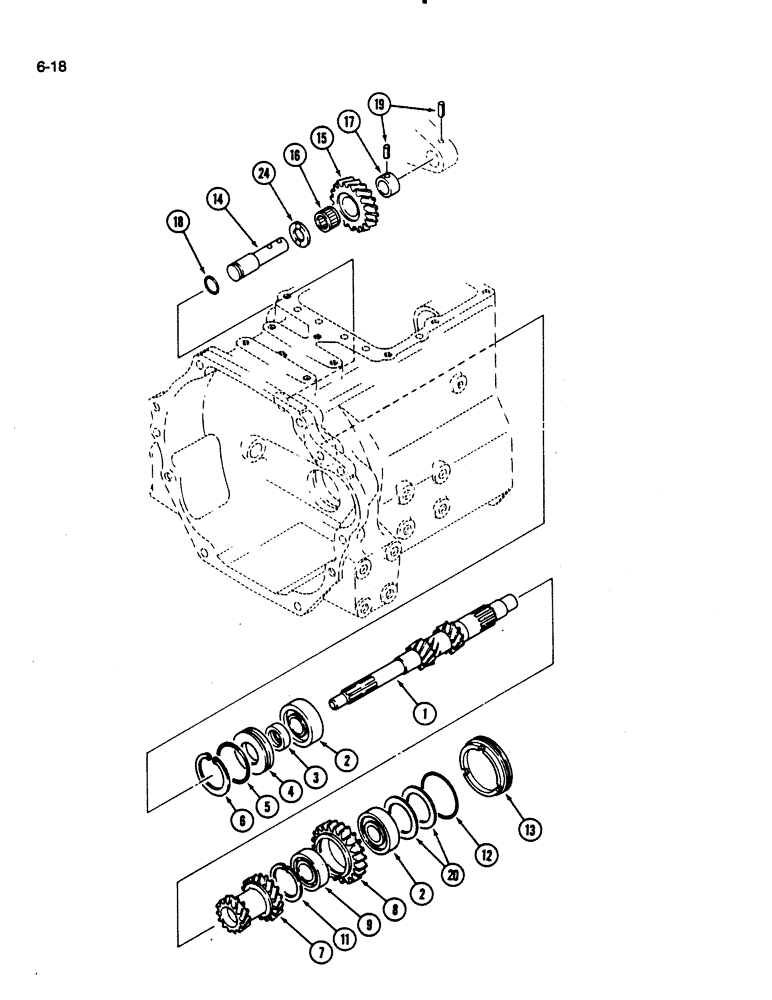

Запчасти Case IH 275 (6-18) - MAIN SHAFT AND IDLER SHAFT (06) - POWER TRAIN

1

1961950C1

SHAFT HOUSING

SHAFT - main

1шт.

2

1962453C2

TAPERED BEARING

BEARING - ball

2шт.

Ref #2 - (Tapered)

1шт.

Note - No thrust washer used between Ref #2 & #9.

1шт.

3

1962553C1

OIL SEAL

SEAL - oil

1шт.

4

1961945C1

SUPPORT ASSY.

RETAINER - seal

1шт.

5

1961946C1

RING

O-RING - 56 mm ID

1шт.

6

933108R1

SNAP RING,M62, Int

RING - retaining, internal, 66 mm OD

1шт.

7

1961947C1

GEAR WHEEL

GEAR - 19 and 23 tooth

1шт.

8

1961949C1

GEAR WHEEL

GEAR - 28 tooth

1шт.

9

1962983C1

ROLLER BEARING,30 mm ID x 62 mm OD x 20 mm

- main shaft

1шт.

11

933108R1

SNAP RING,M62, Int

RING - retaining, internal, 66 mm OD

1шт.

12

1962520C1

O-RING

- 20 mm ID

1шт.

13

1961943C1

SPACER

- main shaft

1шт.

14

1961944C1

SHAFT

- idler

1шт.

15

1961948C1

GEAR WHEEL

GEAR - idler, 25 tooth

1шт.

16

1963622C1

BUSHING

- idler gear (Replaces 1961939C1)

1шт.

17

1961940C1

COLLAR CLAMP

COLLAR - idler shaft

1шт.

18

1269872C1

O-RING

- 20 mm ID

1шт.

19

31122R1

LOCK PIN,M6 x 40, Slotted

PIN - spring

2шт.

1273013C1

STRIPPER PACKAGE

SHIM KIT - main shaft, Includes: Ref. 20

1шт.

20

NSS

NOT SOLD SEPARAT

SHIM - main shaft, 0.003 inch (0.075 mm)

1шт.

20

NSS

NOT SOLD SEPARAT

SHIM - main shaft, 0.004 inch (0.1 mm)

2шт.

20

NSS

NOT SOLD SEPARAT

SHIM - main shaft, 0.015 inch (0.4 mm)

2шт.

20

NSS

NOT SOLD SEPARAT

SHIM - main shaft, 0.031 inch (0.08 mm)

2шт.

24

1962985C1

SPACER

WASHER - grooved

1шт.
