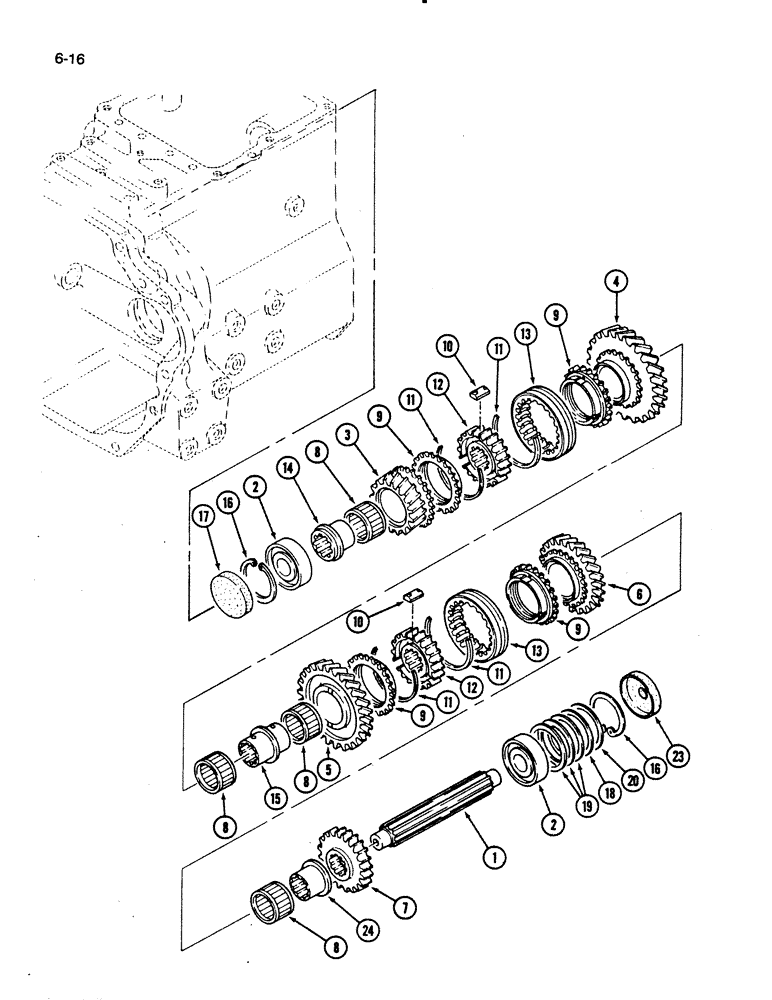

Запчасти Case IH 275 (6-16) - COUNTERSHAFT (06) - POWER TRAIN

1

1961958C1

SHAFT HOUSING

COUNTERSHAFT - transmission

1шт.

2

1273574C91

BEARING, BALL

BEARING - ball

2шт.

3

1961957C1

GEAR WHEEL

GEAR - 24 tooth

1шт.

4

1961956C1

GEAR WHEEL

GEAR - 43 tooth

1шт.

5

1961955C1

GEAR WHEEL

GEAR - 40 tooth

1шт.

6

1961954C1

GEAR WHEEL

GEAR - 36 tooth

1шт.

7

1961951C1

GEAR WHEEL

GEAR - 27 tooth

1шт.

8

1273332C91

NEEDLE BEARING

ASSEMBLY - needle

4шт.

9

1282619C1

SYNCHRONIZER

- transmission

4шт.

10

1282620C1

KEY

- GEAR

6шт.

11

1282621C1

VALVE SPRING

SPRING - retaining

4шт.

12

1269517C1

GEAR WHEEL

GEAR - 36 tooth

2шт.

13

1269516C1

GEAR WHEEL

GEAR - 36 tooth

2шт.

14

1961952C1

RETAINER

- bearing

1шт.

15

1961953C1

RETAINER

- bearing

1шт.

16

933108R1

SNAP RING,M62, Int

RING - retaining, internal, 66 mm OD

2шт.

17

1963242C1

SEAL ASSY.

PLUG - rubber (Replaces 1269429C1)

1шт.

18

1282797C1

SHIM

- countershaft, 0.063 inch (1.6 mm)

1шт.

1273013C2

STRIPPER PACKAGE

SHIM KIT - countershaft, Includes: Ref. 19

1шт.

19

NSS

NOT SOLD SEPARAT

SHIM - countershaft, 0.004 inch (0.1 mm)

2шт.

19

NSS

NOT SOLD SEPARAT

SHIM - countershaft, 0.015 inch (0.4 mm)

2шт.

19

NSS

NOT SOLD SEPARAT

SHIM - countershaft, 0.031 inch (0.8 mm)

2шт.

20

1963054C1

SPACER

- countershaft

1шт.

23

1269508C1

PLUG

CAP - rubber

1шт.

24

1961964C1

RETAINER

- bearing

1шт.
