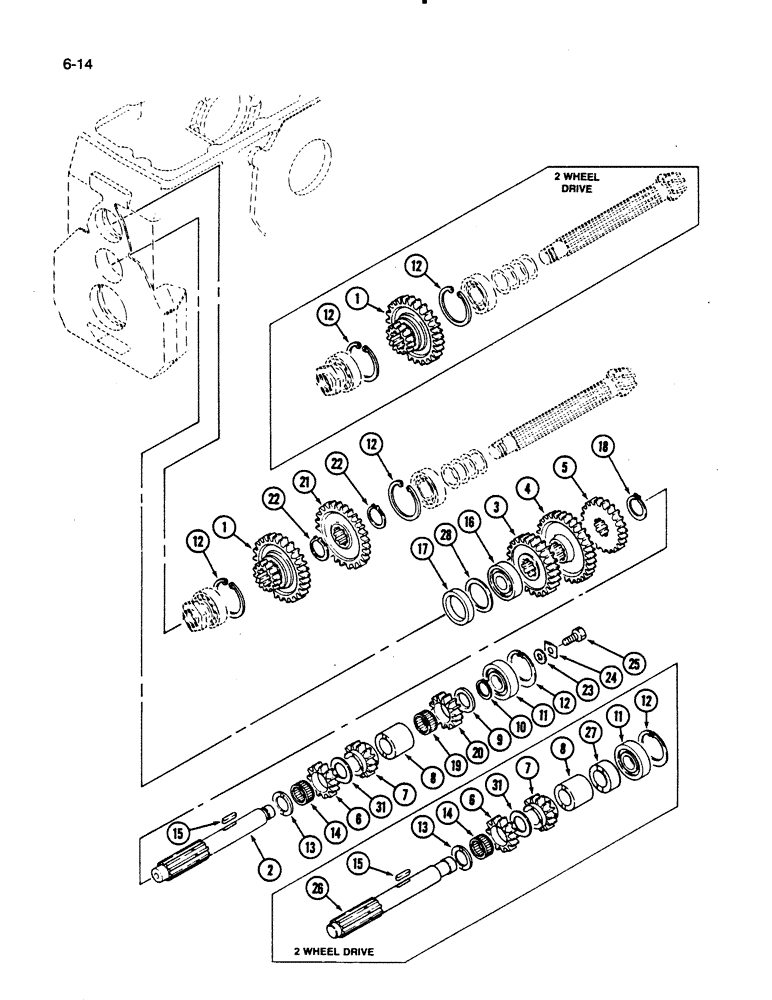

Запчасти Case IH 275 (6-14) - RANGE GEARS (06) - POWER TRAIN

1

1962035C1

GEAR WHEEL

GEAR - 16 and 38 tooth

1шт.

2

1962036C1

SHAFT HOUSING

SHAFT - drive (MFD Tractors)

1шт.

3

1962022C1

GEAR WHEEL

GEAR - 29 tooth

1шт.

4

1962023C1

GEAR WHEEL

GEAR - 38 tooth

1шт.

5

1962024C1

GEAR

- 28 tooth

1шт.

6

1962025C1

GEAR WHEEL

GEAR - 16 tooth

1шт.

REF #6 1962025C1 IS STEPPED AND NOT EXACTLY AS DIAGRAM SHOWS. (SIMILAR TO REF 7) CNS 6/27/97

1шт.

7

1962026C1

GEAR WHEEL

GEAR - 16 tooth

1шт.

8

1962027C1

COLLAR CLAMP

COLLAR - grooved, 32 mm wide

1шт.

9

1273579C1

WASHER

- grooved (MFD Tractors)

1шт.

10

933128R1

SNAP RING,M25, Ext

RING - retaining, external, 23 mm ID (MFD Tractors)

1шт.

11

1271864C91

CRANKSHAFT BEARING

BEARING ASSEMBLY - ball

1шт.

12

933108R1

SNAP RING,M62, Int

RING - retaining, internal, 66 mm OD (Prior to P.I.N. 17657689)

3шт.

12

933108R1

SNAP RING,M62, Int

RING - retaining, internal, 66 mm OD (P.I.N. CCJ0028001 and after)

2шт.

13

1962028C1

LINING

WASHER - grooved, 3 mm thick

1шт.

14

1962532C1

NEEDLE BEARING

BEARING - needle

1шт.

15

1963010C1

KEY

- drive shaft

1шт.

16

1963011C1

ROLLER BEARING,25 mm ID x 62 mm OD x 17 mm

BEARING - roller

1шт.

17

1962029C1

COLLAR CLAMP

COLLAR - 60 mm OD x 12 mm wide

1шт.

18

933082R1

SNAP RING,M32, Ext

RING - retaining, external, 29 mm ID

1шт.

19

1962533C1

NEEDLE BEARING

BEARING - needle (MFD Tractors)

1шт.

20

1962030C1

GEAR WHEEL

GEAR - 16 tooth (MFD Tractors)

1шт.

21

1962031C1

GEAR WHEEL

GEAR - 38 tooth (MFD Tractors)

1шт.

22

933086R1

SNAP RING,M30, Ext

- retaining, external, 28 mm ID (MFD Tractors)

2шт.

23

1962032C1

WASHER

- special (MFD Tractors)

1шт.

24

1962033C1

PLATE ASSY.

PLATE - lock (MFD Tractors)

1шт.

25

514-700

BOLT,Hex, M10 x 1 x 16mm, Cl 8.8, Full Thd

- hex, M10 x 1 x 20 mm, full thread (MFD Tractors)

1шт.

26

1962037C1

SHAFT HOUSING

SHAFT - drive (2WD Tractors)

1шт.

27

1962034C1

COLLAR CLAMP

COLLAR - grooved (2WD Tractors)

1шт.

1273013C2

STRIPPER PACKAGE

SHIM KIT - drive shaft, Includes: Ref. 28

1шт.

28

NSS

NOT SOLD SEPARAT

SHIM - shaft, 0.004 inch (0.1 mm)

2шт.

28

NSS

NOT SOLD SEPARAT

SHIM - shaft, 0.015 inch (0.4 mm)

2шт.

28

NSS

NOT SOLD SEPARAT

SHIM - shaft, 0.031 inch (0.08 mm)

2шт.

31

1962988C1

SPACER

- drive shaft

1шт.
