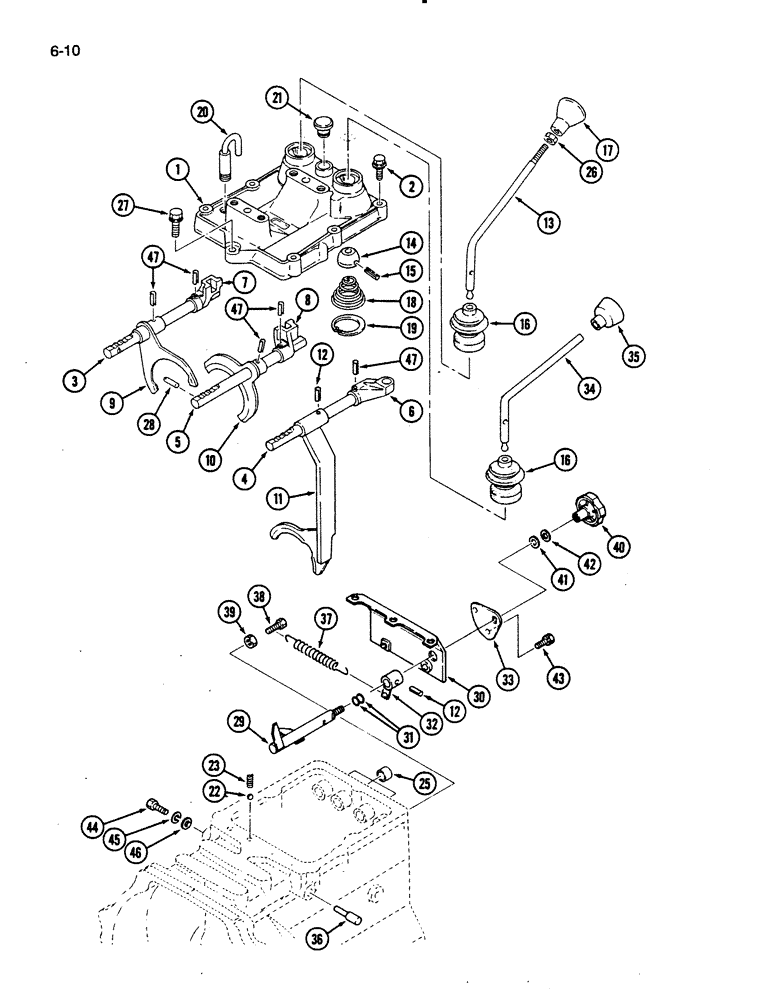

Запчасти Case IH 275 (6-10) - GEAR SHIFT LINKAGE AND MECHANISM (06) - POWER TRAIN

1

1962206C1

COVER ASSY

COVER - transmission

1шт.

2

514-713

BOLT,Hex, M10 x 1.25 x 45mm, Cl 5.6

- hex, M10 x 45 mm

7шт.

892-11010

LOCK WASHER,M10

7шт.

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

7шт.

3

1962207C1

RAIL

- shift, first and reverse

1шт.

4

1962208C1

RAIL

- shift, PTO

1шт.

5

1962209C1

RAIL

- shift, second and third

1шт.

6

1962210C1

ADAPTER

- PTO

1шт.

7

1962211C1

ADAPTER

- left shift rail

1шт.

8

1962212C1

ADAPTER

- right shift rail

1шт.

9

1963658C1

FORK TEDDER

FORK - shift, first and reverse (Replaces 1962213C1)

1шт.

10

1963659C1

FORK TEDDER

FORK - second and third (Replaces 1962214C1)

1шт.

11

1962215C1

FORK TEDDER

FORK - PTO

1шт.

12

30369R1

LOCK PIN,M6 x 32, Slotted

PIN - slotted spring, 6 x 26 mm (Replaces 31121R1)

2шт.

13

1963104C1

LEVER

ASSEMBLY - gear shift, Includes: Ref. 14 & 15

1шт.

14

1273478C1

BALL

- shift lever

1шт.

15

30320R1

PIN,M5 x 33, Coiled

- slotted spring, 5 x 32 mm

1шт.

16

1273480C1

INSULATOR

COVER - shift lever

2шт.

17

1962202C1

GRIP

KNOB - shift lever

1шт.

18

1273479C1

VALVE SPRING

SPRING - shift lever

2шт.

19

933032R1

SNAP RING,M52, Int

RING - retaining, internal, 56 mm OD

2шт.

20

1269861C1

VENTILATION PIPE,10.5 mm Diameter, 50, 37 mm Length

VENT - transmission

1шт.

21

1273458C1

PLUG

CAP - cover

1шт.

22

17011R1

BALL

- 11/32 inch diameter (9 mm)

3шт.

23

1273482C1

VALVE SPRING

SPRING - shift detent

3шт.

25

1962204C1

CYLINDER END CAP

PLUG - shift rail

3шт.

26

525-5100

NUT,M10 x 1.25, Cl 8

- hex, M10 x 1.25

1шт.

27

514-702

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

- hex, M10 x 1.25 x 35 mm

1шт.

892-11010

LOCK WASHER,M10

1шт.

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

1шт.

28

99396C1

KEY

PIN - shift position (Replaces 1962205C1)

1шт.

29

1962217C1

ARM

- inner

1шт.

30

1962218C1

BRACKET

- stop

1шт.

31

1288101C1

O-RING

O-RING - 16 mm ID

2шт.

32

1962200C1

BUSHING

COLLAR - PTO switch

1шт.

33

1962201C1

STOP

PLATE - stop

1шт.

34

1963105C1

LEVER

ASSEMBLY - shift, PTO, Includes: Ref. 14 & 15

1шт.

35

1963064C1

KNOB

- shift lever

1шт.

36

1962199C1

AXLE PIN

PIN - PTO switch

1шт.

37

1963065C1

VALVE SPRING

SPRING - return

1шт.

38

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

1шт.

39

825-1108

NUT,Hex, M8, Cl 8

1шт.

40

99231C1

KNOB

- PTO select

1шт.

41

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

1шт.

42

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

43

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

1шт.

44

514-919

BOLT,Hex, M14 x 1.5 x 20mm, Cl 8.8, Full Thd

- hex, M14 x 20 mm

1шт.

45

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

1шт.

46

1963110C1

WASHER

- flat, special

1шт.

47

30369R1

LOCK PIN,M6 x 32, Slotted

PIN - slotted spring, 6 x 32 mm

5шт.
