Запчасти Case IH 275 (6-08) - TRANSMISSION RANGE SHIFT LINKAGE, MFD CONTROLS (06) - POWER TRAIN

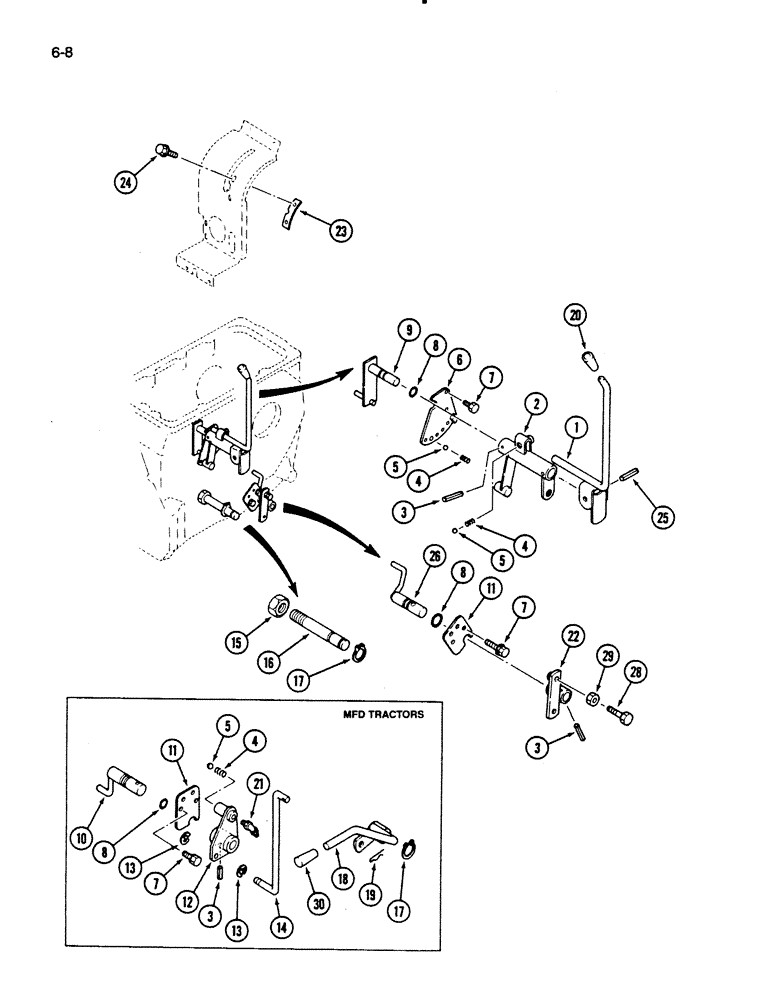

Схема запчастей Case IH 275 - (6-08) - TRANSMISSION RANGE SHIFT LINKAGE, MFD CONTROLS (06) - POWER TRAIN
17
1
4
28
3
11
29
30
7
8
7
21
3
12
15
26
3
23
9
20
14
4
13
5
17
16
4
7
8
5
13
25
2
22
18
24
10
5
8
6
11
19

Артикул

Название

Примечание

Количество

1

1962231C1

LEVER

ROD - range shift

1шт.

2

1962232C1

LEVER

- range shift

1шт.

3

30419R1

LOCK PIN,M8 x 32, Slotted

PIN - spring, 8 x 32 mm

1шт.

4

1962227C1

VALVE SPRING

SPRING - shift linkage

1шт.

5

17011R1

BALL

- 11/32 inch (9 mm) diameter

1шт.

6

1962233C1

PLATE ASSY.

PLATE - stop

1шт.

7

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

8

1288101C1

O-RING

O-RING - 16 mm ID

1шт.

9

1962234C1

ARM

LEVER - range shift

1шт.

10

1962221C1

LEVER

ARM - control (MFD Tractors)

1шт.

11

1962220C1

PLATE ASSY.

PLATE - guide

1шт.

12

1962230C1

PLATE ASSY.

PLATE - linkage (MFD Tractors)

1шт.

13

1271817C1

CIRCLIP,M9

RING - retaining, E-type (MFD Tractors)

2шт.

14

1962222C1

ROD

- shift linkage (MFD Tractors)

1шт.

15

525-5116

NUT,M20 x 1.5, Cl 8

- hex, M20 x 1.5 mm

1шт.

16

1962223C1

AXLE PIN

PIN - threaded

1шт.

17

933123R1

SNAP RING,M20, Ext

RING - retaining, external, 18 mm ID

1шт.

18

1962229C1

LEVER

- MFD control (MFD Tractor)

1шт.

19

1269735C1

AXLE PIN

PIN - hair

1шт.

20

1962980C1

GRIP

KNOB - lever (Replaces 1269854C1)

1шт.

21

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING - grease, 65 degree, 1/8 inch PT (MFD Tractors)

1шт.

22

1962224C1

PLATE ASSY.

PLATE - link

1шт.

23

1962228C1

PLATE ASSY.

PLATE - guide

1шт.

24

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

25

30868R1

LOCK PIN,M8 x 65 Slotted

PIN - spring, 8 x 65 mm

1шт.

26

1962225C1

LEVER

ARM - control

1шт.

28

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

29

825-1108

NUT,Hex, M8, Cl 8

1шт.

30

1273483C1

KNOB

- control lever (MFD Tractors) (Replaces 1963068C1)

1шт.

Выбрано товаров: 32
