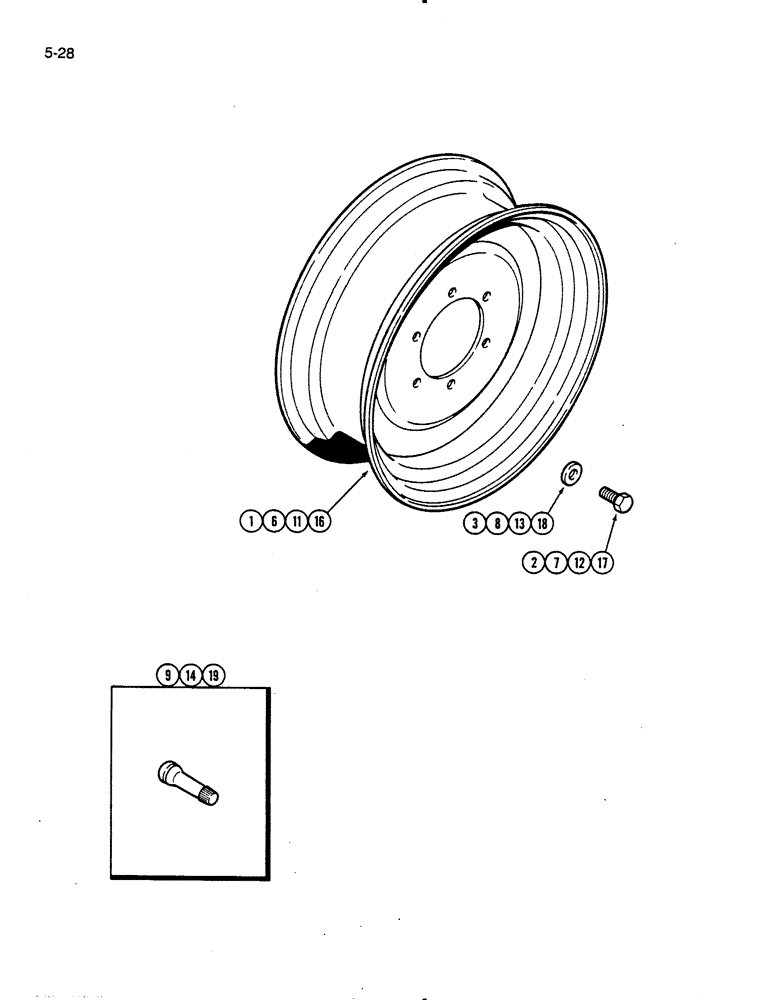

Запчасти Case IH 275 (5-28) - FRONT WHEELS, TWO WHEEL DRIVE WITH AGRICULTURAL TIRES (05) - STEERING

1

1963740C1

WHEEL (STEERING)

WHEEL - front, 16 x 4.25 KA (For 5.50-16 F2 and 6.00-16 F2 tire

2шт.

2

514-917

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT - hex special, M14 x 30 mm

12шт.

3

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

- hardened, 15 x 28 x 3 mm

12шт.

6

1963741C1

WHEEL (STEERING)

WHEEL - front, 14 x 6 KB (For 25 x 8.50-14 STRAC turf tire), 2WD with turf tires

2шт.

6

1963746C1

WHEEL

- front, 15 x 7 JA (For 27 x 8.50-15 STRAC turf tire), 2WD with turf tires

2шт.

7

514-834

BOLT,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, M12 x 30 mm, 2WD with turf tires

12шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2WD with turf tires M13.5 x 24.5 x 3, HT

12шт.

9

NSS

NOT SOLD SEPARAT

VALVE - wheel, 2WD with turf tires

2шт.

11

1963743C1

WHEEL (STEERING)

WHEEL - front, 16 x 6 LB (For 7.2-16 R1 and 8.3-16 R1 tire), MFD tractors with agricultural tires

2шт.

12

514-917

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT - hex special, M14 x 30 mm, MFD tractors with agricultural tires

12шт.

13

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

- hardened, 15 x 28 x 3 mm, MFD tractors with agricultural tires

12шт.

14

NSS

NOT SOLD SEPARAT

VALVE - wheel, MFD tractors with agricultural tires

2шт.

16

1963724C1

WHEEL (STEERING)

WHEEL - front, 15 x 7 JA (For 27 x 8.50-15 STRAC turf tire), MFD tractors with turf tires

2шт.

17

514-917

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT - hex special, M14 x 30 mm, MFD tractors with turf tires

12шт.

18

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

- hardened, 15 x 28 x 3 mm, MFD tractors with turf tires

12шт.

19

NSS

NOT SOLD SEPARAT

VALVE - wheel, MFD tractors with turf tires

2шт.
