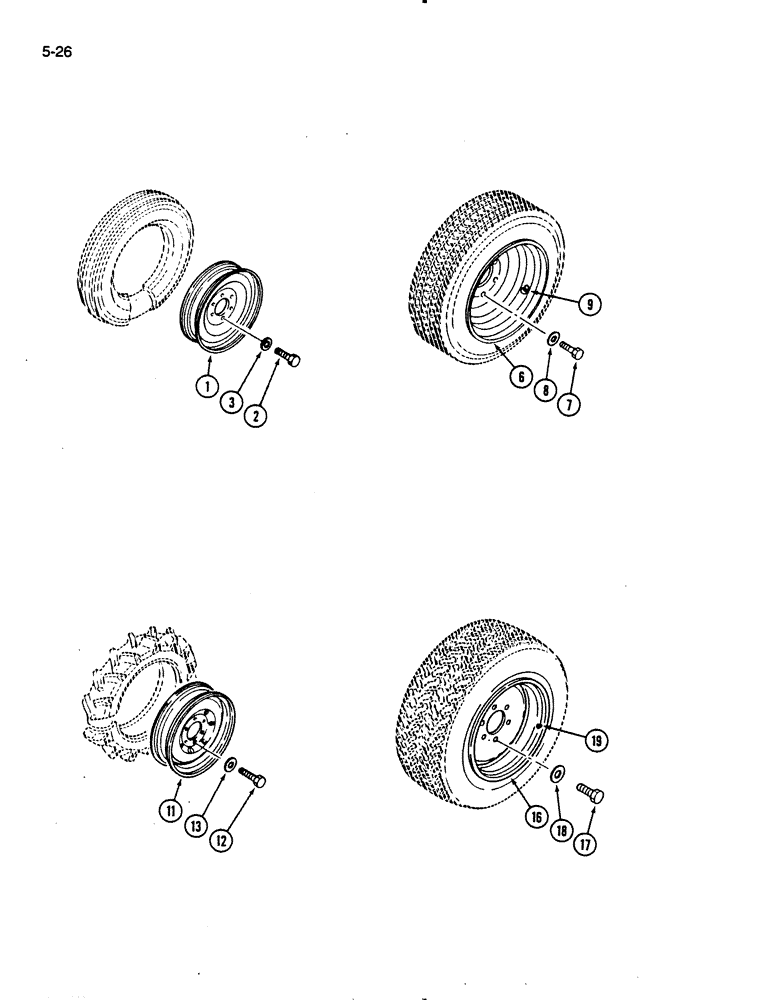

Запчасти Case IH 275 (5-26) - FRONT WHEELS, TWO WHEEL DRIVE WITH AGRICULTURAL TIRES (05) - STEERING

1

1963111C1

WHEEL (STEERING)

WHEEL - front, 4.00E x 16DC (For 5.50-16 F2 and 6.00-16 F2 tire)

2шт.

2

514-834

BOLT,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

- wheel mounting

12шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

6

1962448C1

WHEEL (STEERING)

WHEEL - front, 7JA x 14 WDC (for 24 x 8.50- 14 PD turf tire), 2WD

2шт.

6

1962450C1

WHEEL (STEERING)

WHEEL - front, 7JA x 15 WDC (for 27 x 8.50- 15 PD turf tire), 2WD

2шт.

7

514-834

BOLT,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

- wheel mounting, 2WD with turf tires

12шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2WD with turf tires M13.5 x 24.5 x 3, HT

12шт.

9

NSS

NOT SOLD SEPARAT

VALVE - wheel, 2WD with turf tires

2шт.

11

1962439C1

WHEEL (STEERING)

WHEEL - front, 5 JA x 16 WDC (For 7-16 RI and 8-16 RI tire), MFD tractors with agricultural tires

2шт.

12

514-917

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT - hex special, M14 x 30 mm, MFD tractors with agricultural tires

12шт.

13

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

- hardened, 15 x 28 x 3 mm, MFD tractors with agricultural tires

12шт.

16

1273432C1

WHEEL (STEERING)

WHEEL - front, 7 JA x 15 (For 27 x 8,50-15 PD front turf tire) (Replaces 1963112C1), MFD tractors with turf tires

2шт.

16

1963113C1

RIM

WHEEL - front, 7JA x 15 WBC (For 212/80D/5PD front turf tire), MFD tractors with turf tires

2шт.

17

514-917

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT - hex special, M14 x 30 mm, MFD tractors with turf tires

12шт.

18

446229

WASHER,1/2" x 1 1/4" x .109"

- flat, 14 x 32 x 2 mm (7JA x 15 rim), MFD tractors with turf tires

12шт.

18

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

-hardened, 15 x 28 x 3 mm (7JA x 15 WBC rim), MFD tractors with turf tires

12шт.

19

NSS

NOT SOLD SEPARAT

VALVE - wheel (7JA x 15 rim), MFD tractors with turf tires

2шт.
