(5-24) - DRAG LINK ASSEMBLY, TWO WHEEL DRIVE TRACTORS

Запчасти Case IH 275 (5-24) - DRAG LINK ASSEMBLY, TWO WHEEL DRIVE TRACTORS (05) - STEERING

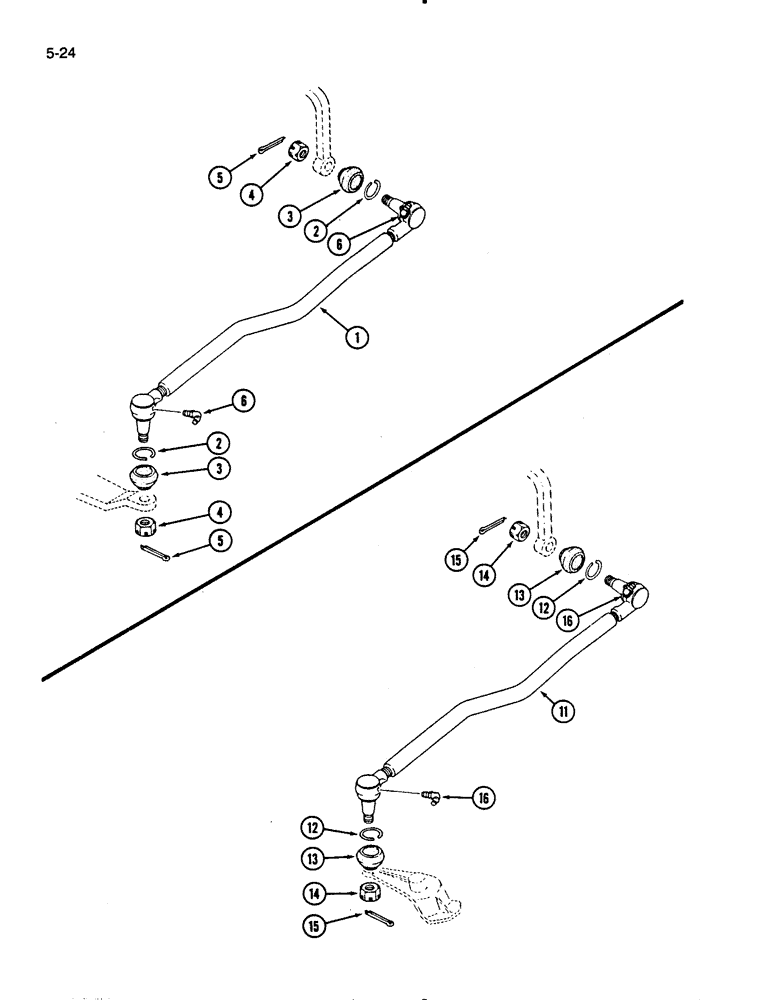

Схема запчастей Case IH 275 - (5-24) - DRAG LINK ASSEMBLY, TWO WHEEL DRIVE TRACTORS (05) - STEERING
14
16
13
11
4
6
3
4
6
14
3
15
5
13
2
5
12
16
1
15
12
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1962281C1

DRAG LINK

ROD ASSEMBLY - drag link, Includes: Ref. 2 - 6

1шт.

2

1963066C1

RING

- retaining

2шт.

3

1963067C1

SEAL

SEAL - dust

2шт.

4

1271877C1

NUT

- castle, M16

2шт.

5

632-655

COTTER PIN,M4 x 32

PIN - cotter, 4 x 32 mm

2шт.

6

1273649C1

FITTING

- grease, extra short, straight, 1/4-18 PT

2шт.

11

1962282C1

LINK ASSY.

ROD ASSEMBLY - drag link, MFD tractors, Includes: Ref. 12 - 16

1шт.

12

1963066C1

RING

- retaining, MFD tractors

2шт.

13

1963067C1

SEAL

SEAL - dust, MFD tractors

2шт.

14

127187CC1

NUT - castle, M16, MFD tractors

2шт.

15

632-655

COTTER PIN,M4 x 32

PIN - cotter, 4 x 32 mm, MFD tractors

2шт.

16

1273649C1

FITTING

- grease, extra short, straight, 1/4-18 PT, MFD tractors

2шт.
