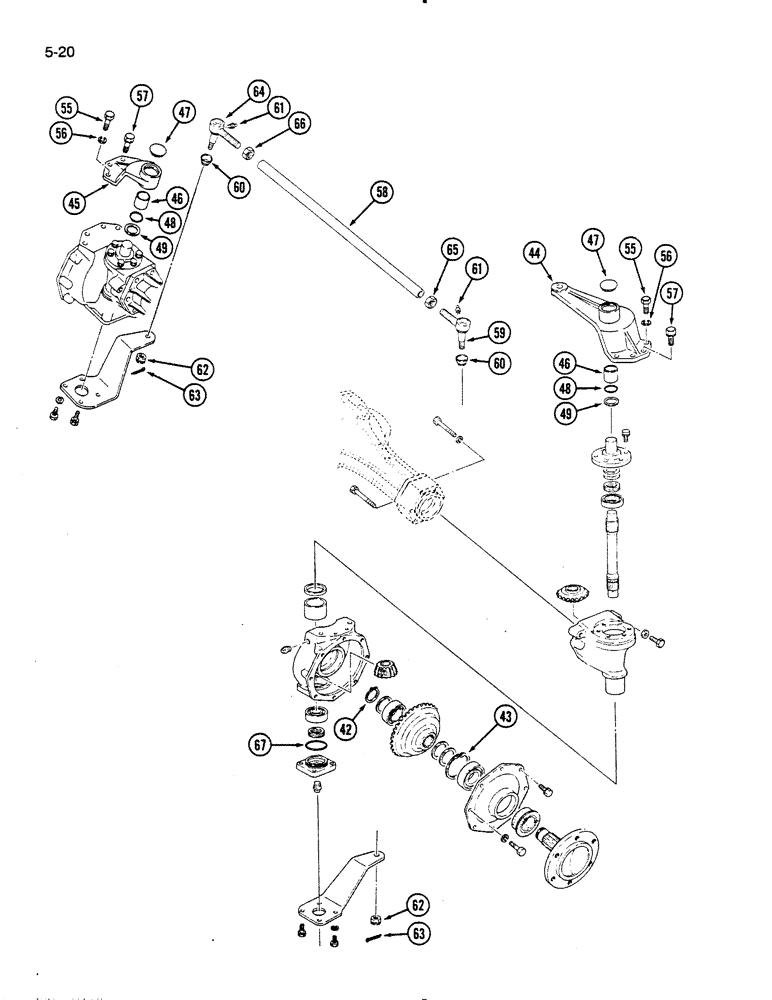

Запчасти Case IH 275 (5-20) - FRONT AXLE FINAL DRIVE, TIE ROD AND STEERING LINKAGE, MFD TRACTORS (CONTD) (05) - STEERING
№
Артикул
Название
Примечание
Количество
42
933029R1
SNAP RING,M35, Ext
RING - retaining, external, 32 mm ID
2шт.
43
933154R1
SNAP RING,M80, Int
RING - retaining, internal, 86 mm OD
2шт.
44
1962158C1
ARM
- pivot, left
1шт.
45
1962159C1
ARM
- pivot, right
1шт.
46
1962151C1
BUSHING
- arm
2шт.
47
41-25
PLUG,Exp, 1 9/16"
- pivot arm
2шт.
48
1962519C1
O-RING
O-RING - 29 mm ID
2шт.
1963149C1
SHIM
KIT - shim, Includes: Ref. 49
1шт.
49
NSS
NOT SOLD SEPARAT
SHIM - pivot arm, 0.004 inch (1 mm)
1шт.
49
NSS
NOT SOLD SEPARAT
SHIM - pivot arm, 0.005 inch (1.2 mm)
1шт.
49
NSS
NOT SOLD SEPARAT
SHIM _ pivot arm, 0.0055 inch (1.4 mm)
1шт.
49
NSS
NOT SOLD SEPARAT
SHIM - pivot arm, 0.006 inch (1.6 mm)
1шт.
49
NSS
NOT SOLD SEPARAT
SHIM - pivot arm, 0.007 inch (1.8 mm)
1шт.
49
NSS
NOT SOLD SEPARAT
SHIM - pivot arm, 0.008 inch (2 mm)
1шт.
55
1273558C1
BOLT,Hex, M12 x 1.25 x 35mm
BOLT - shoulder
4шт.
56
892-11012
LOCK WASHER,M12
WASHER, LOCK, M12
4шт.
57
514-842
BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd
4шт.
892-11012
LOCK WASHER,M12
WASHER, LOCK, M12
4шт.
58
1962160C1
TUBE
ROD - tie
1шт.
Note - 1962160C1 Tie Rod, M F D 12/14/95
1шт.
59
1273546C91
END ASSY.
ROD END ASSEMBLY - tie, left, left hand thread, Includes: Ref. 60 - 62
1шт.
1273546C91 HAS A M17 X 1.5 RH THREAD ON THE END W/O THE NUT, AND M12 X 1.5 STD THREAD ON END W/NUT. 1274547C91 HAS A M17 X 1.5 LH THREAD ON END W/O NUT, M12 X 1.5 STD THREAD ON END W/NUT. bill wolfe 7/22/93
1шт.
60
1273548C1
COVER ASSY
COVER - dust
1шт.
61
219-23
LUBE NIPPLE,1/4" - 18 NPTF
FITTING - grease
1шт.
62
1273549C1
NUT
- castle, M12
1шт.
63
632-628
COTTER PIN,M3.2 x 20
PIN - cotter, 3 x 20 mm
1шт.
64
1273547C91
END ASSY.
ROD END ASSEMBLY - tie, right, right hand threads, Includes: Ref. 60 - 63
1шт.
65
1273544C1
NUT
- hex, special, M17
1шт.
66
1273545C1
NUT
- hex, special, M17, left hand thread
1шт.
67
1962520C1
O-RING
- 56 mm ID
2шт.
Выбрано товаров: 30
