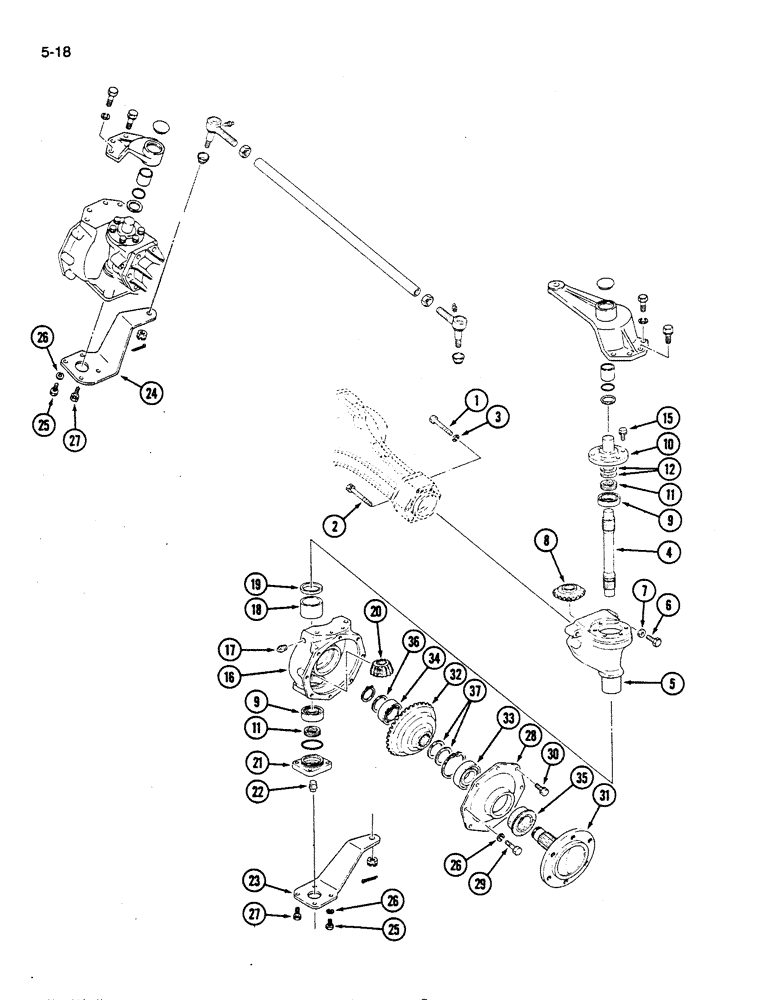

Запчасти Case IH 275 (5-18) - FRONT AXLE FINAL DRIVE, TIE ROD AND STEERING LINKAGE, MFD TRACTORS (05) - STEERING

1

1962139C1

BOLT (SPREADER),Hex, M12 x 1.25 x 95mm

BOLT - hex, 95 mm long

2шт.

2

514-846

BOLT,Hex, M12 x 1.25 x 90mm, Cl 8.8

- hex, M12 x 90 mm

10шт.

3

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

12шт.

4

1962152C1

SHAFT HOUSING

SHAFT - king pin

2шт.

5

1962162C1

CASE

HOUSING - king pin

2шт.

6

514-718

BOLT,Hex, M10 x 1.25 x 40mm, Cl 8.8, Full Thd

- hex, 40 mm long

2шт.

7

525-5100

NUT,M10 x 1.25, Cl 8

- hex, M10 x 1.25 mm

2шт.

8

1962140C1

GEAR WHEEL

GEAR - pinion, 17 tooth

2шт.

9

1271864C91

CRANKSHAFT BEARING

BEARING ASSEMBLY - ball

4шт.

10

1962163C1

ARM

HOLDER - bearing, upper

2шт.

11

1271868C91

BALL BEARING,25 mm ID x 42 mm OD x 11 mm

ASSEMBLY - thrust ball

4шт.

1963146C1

SHIM

KIT - shim, Include: Ref. 12

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - bearing, 0.006 inch (0.15 mm)

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - bearing, 0.008 inch (0.2 mm)

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - bearing, 0.012 inch (0.3 mm)

1шт.

15

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

12шт.

892-11010

LOCK WASHER,M10

12шт.

16

1962153C1

CASE

HOUSING - final drive

2шт.

17

NLS

NO LONGER SERVICED

PLUG - slotted, headless, 1/4 PT

2шт.

18

1962141C1

BUSHING

- housing

2шт.

19

1273212C1

OIL SEAL

SEAL - oil

2шт.

20

1962154C1

GEAR WHEEL

GEAR - pinion, 13 tooth

2шт.

21

1962155C1

COVER ASSY

COVER - housing, lower

2шт.

22

103885

PLUG,Slotted, 3/8" NPT

- slotted, headless, 3/8 PT

2шт.

23

1962157C1

ARM

- steering, left

1шт.

24

1962156C1

ARM

- steering, right

1шт.

25

1962142C1

BOLT (SPREADER),Hex, M10 x 1.25 x 40mm

BOLT - hex, 40 mm long

4шт.

26

892-11010

LOCK WASHER,M10

6шт.

27

514-718

BOLT,Hex, M10 x 1.25 x 40mm, Cl 8.8, Full Thd

- hex, M10 x 1.25 x 40 mm

2шт.

892-11010

LOCK WASHER,M10

2шт.

28

1962164C1

COVER ASSY

COVER - housing

2шт.

29

1273202C1

BOLT,Hex, M10 x 1.25 x 35mm

BOLT - shoulder

2шт.

30

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, M10 x 30 mm

14шт.

892-11010

LOCK WASHER,M10

14шт.

31

1962165C1

SHAFT HOUSING

SHAFT - wheel

2шт.

32

1962161C1

GEAR WHEEL

GEAR - bevel, 38 tooth

2шт.

33

1963032C1

BALL BEARING

BEARING - ball, 40 mm ID (Replaces 1963034C91)

2шт.

34

1963034C1

BALL BEARING

BEARING - ball, 35 mm ID (Replaces 1963032C91)

2шт.

35

1962143C1

OIL SEAL

SEAL - oil

2шт.

36

1962144C1

SPACER

- bearing

2шт.

1963148C1

SHIM

KIT - shim, Includes: Ref. 37

1шт.

37

NSS

NOT SOLD SEPARAT

SHIM - wheel shaft, 0.0015 inch (0.4 mm)

1шт.

37

NSS

NOT SOLD SEPARAT

SHIM - wheel shaft, 0.002 inch (0.6 mm)

1шт.

37

NSS

NOT SOLD SEPARAT

SHIM - wheel shaft, 0.003 inch (0.8 mm)

1шт.

37

NSS

NOT SOLD SEPARAT

SHIM - wheel shaft, 0.004 inch (1 mm)

1шт.

37

NSS

NOT SOLD SEPARAT

SHIM - wheel shaft, 0.005 inch (1.2 mm)

1шт.
