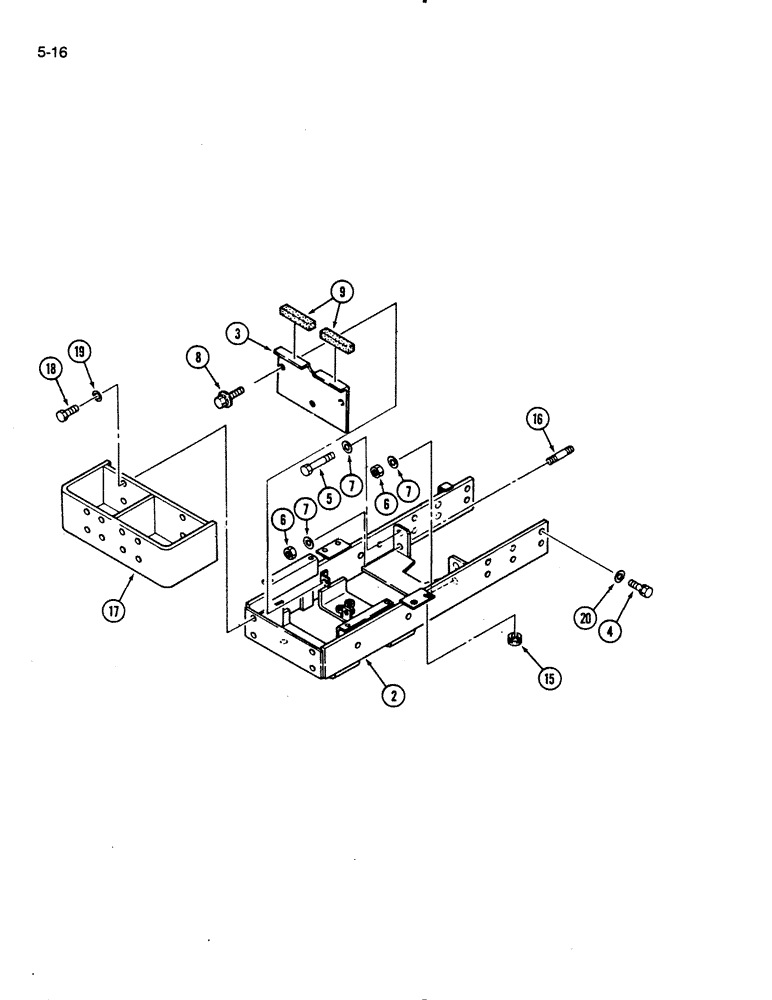

Запчасти Case IH 275 (5-16) - FRONT FRAME, MFD TRACTORS (05) - STEERING

2

1962138C1

BRACKET

FRAME - front

1шт.

3

1962090C1

PLATE ASSY.

PLATE - baffle

1шт.

4

514-832

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

12шт.

5

514-915

BOLT,Hex, M14 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, M14 x 35 mm

2шт.

6

525-5105

NUT,M14 x 1.5, Cl 8

- hex, M14

2шт.

7

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

- hardened, 15 x 28 x 3 mm

4шт.

8

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

3шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

3шт.

9

1962089C1

CUSHION ASSY.

CUSHION - foam

2шт.

15

1961819C1

GROMMET

- front frame

2шт.

16

1963051C1

STUD

- 32 mm long

2шт.

17

1962993C1

BRACKET

FRAME - front weight mounting

1шт.

18

614-14040

BOLT,Hex, M14 x 2 x 40mm, Cl 8.8, Full Thd

4шт.

19

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

4шт.

20

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.
