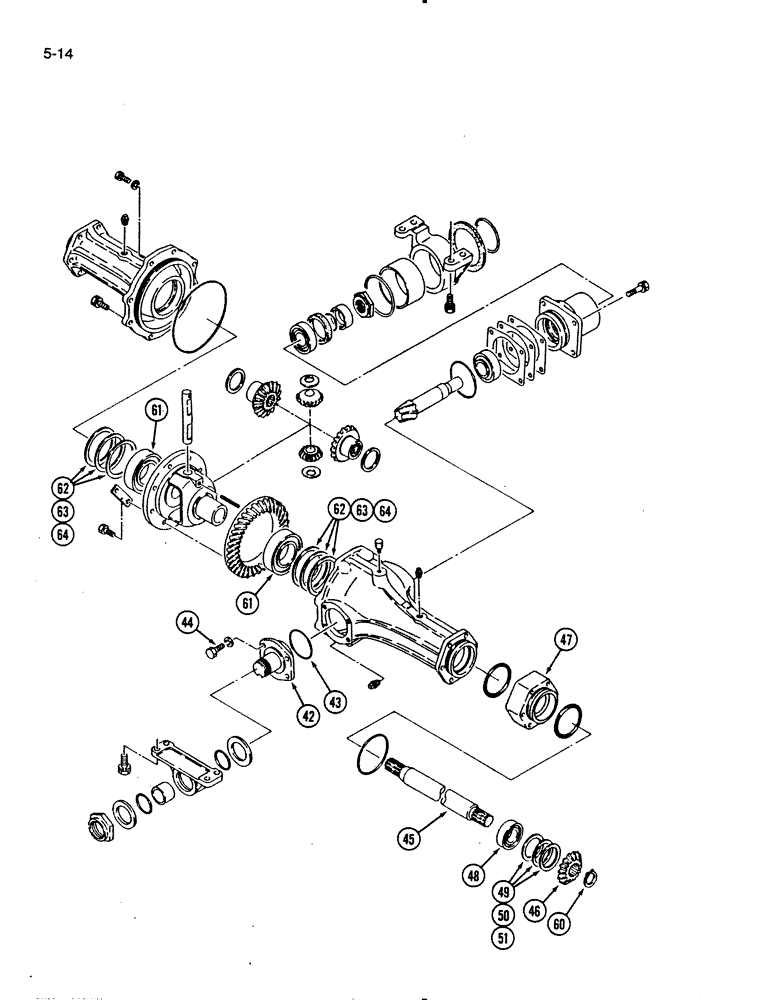

Запчасти Case IH 275 (5-14) - FRONT AXLE SHAFTS HOUSING AND DIFFERENTIAL, MFD TRACTORS (CONTD) (05) - STEERING

42

1962134C1

NOZZLE HOLDER

PIVOT - axle housing

1шт.

43

1962509C1

O-RING

O-RING - 70 mm ID

1шт.

44

514-824

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, M12 x 1.75 x 30 mm Grade 10.9

4шт.

45

1962135C1

SHAFT HOUSING

SHAFT - axle

2шт.

46

1962116C1

GEAR WHEEL

GEAR - pinion, 15 tooth

2шт.

47

1962136C1

SPACER

- axle housing

2шт.

Bolt for p/n 1962136c1 ref 47 see fig 5-19 csd 6/5

1шт.

48

1271866C91

BALL BEARING

ASSEMBLY - ball

2шт.

1963146C1

SHIM

KIT - shim, Includes: Ref. 49 - 51

1шт.

49

NSS

NOT SOLD SEPARAT

SHIM - axle shaft, 0.006 inch (0.15 mm)

1шт.

50

NSS

NOT SOLD SEPARAT

SHIM - axle shaft, 0.008 inch (0.2 mm)

1шт.

51

NSS

NOT SOLD SEPARAT

SHIM - axle shaft, 0.012 inch (0.03 mm)

1шт.

60

933086R1

SNAP RING,M30, Ext

- retaining, external, 28 mm ID

2шт.

61

1271861C91

BALL BEARING

ASSEMBLY - ball

2шт.

1963147C1

SHIM

KIT - shim, Includes: Ref. 62 - 64

1шт.

62

NSS

NOT SOLD SEPARAT

SHIM - bearing, 0.003 inch (0.07 mm)

1шт.

63

NSS

NOT SOLD SEPARAT

SHIM - bearing, 0.008 inch (0.2 mm)

1шт.

64

NSS

NOT SOLD SEPARAT

SHIM - bearing 0.016 inch (0.4 mm)

1шт.
