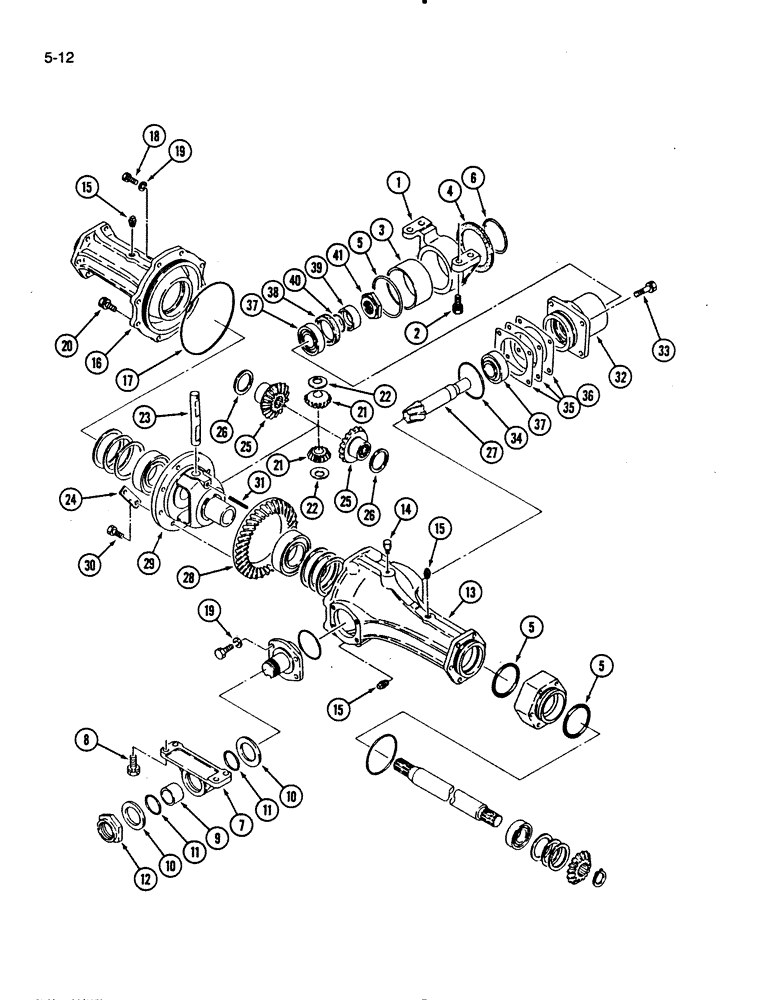

Запчасти Case IH 275 (5-12) - FRONT AXLE SHAFTS, HOUSING AND DIFFERENTIAL, MFD TRACTORS (05) - STEERING

1

1962123C1

BRACKET

- mounting, rear

1шт.

2

514-821

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

- hex, M12 x 1.25 x 40 mm

4шт.

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

3

1963020C1

BUSHING

- mounting bracket

1шт.

4

1962554C1

OIL SEAL

SEAL - oil

1шт.

5

1962515C1

O-RING

O-RING - 80 mm ID

5шт.

6

1962516C1

O-RING

O-RING - 65 mm ID

1шт.

7

1962124C1

BRACKET

- mounting, front

1шт.

8

514-821

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

- hex, M12 x 1.25 x 40 mm

4шт.

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

9

1963019C1

BUSHING

- mounting bracket

1шт.

10

1962117C1

SLEEVE

SPACER - flat, 62 mm OD

2шт.

11

1962512C1

O-RING

- 40 mm ID

2шт.

12

1963611C1

NUT

- bearing lock (Replaces 1962118C1)

1шт.

13

1962125C1

CASE

HOUSING - front axle, left

1шт.

for bolts p/n 1962125c1 ref 13 see pg 5-19 csd 6-5

1шт.

14

1962112C1

FILTER CARTRIDGE

BREATHER - front axle housing

1шт.

15

103885

PLUG,Slotted, 3/8" NPT

- slotted, headless, 3/8 PT

3шт.

16

1962126C1

CASE

HOUSING - front axle, right

1шт.

17

1962518C1

O-RING

O-RING - 175 mm OD

1шт.

18

1962114C1

BOLT (SPREADER),Hex, M12 x 1.75 x 40mm

BOLT - hex, 40 mm long

1шт.

19

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

5шт.

20

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

7шт.

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

7шт.

21

1962039C1

GEAR WHEEL

GEAR - pinion

2шт.

22

1962040C1

THRUST WASHER

- thrust

2шт.

23

1962049C1

SHAFT HOUSING

SHAFT - pinion gear

1шт.

24

1962113C1

PLATE ASSY.

PLATE - lock

4шт.

25

1962054C1

GEAR WHEEL

GEAR - side (Replaces 1962127C1)

2шт.

26

1962041C1

THRUST WASHER

- thrust

2шт.

1963057C1

GEAR WHEEL

PINION AND RING GEAR - differential

1шт.

27

NSS

NOT SOLD SEPARAT

SHAFT - pinion

1шт.

28

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

29

1962130C1

CASE

HOUSING - differential

1шт.

30

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

8шт.

31

30394R1

LOCK PIN,M6 x 50, Slotted

PIN - spring

1шт.

32

1962131C1

CASE

HOUSING - bearing

1шт.

33

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, M10 x 30 mm

4шт.

892-11010

LOCK WASHER,M10

4шт.

34

1962517C1

O-RING

- 75 mm ID

1шт.

1963145C1

SHIM

KIT - shim, Includes: Ref. 35 & 36

1шт.

35

NSS

NOT SOLD SEPARAT

SHIM - pinion shaft, 0.003 inch (0.07 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

SHIM _ pinion shaft, 0.008 inch (0.2 mm)

1шт.

37

1273014C92

TAPERED BEARING

BEARING ASSEMBLY - pinion shaft

2шт.

38

1962548C1

OIL SEAL

SEAL - oil

1шт.

39

1962115C1

BUSHING

- oil seal

1шт.

40

1269878C1

O-RING

O-RING - 30 mm ID

1шт.

41

1962119C1

NUT

- hex, special

1шт.
