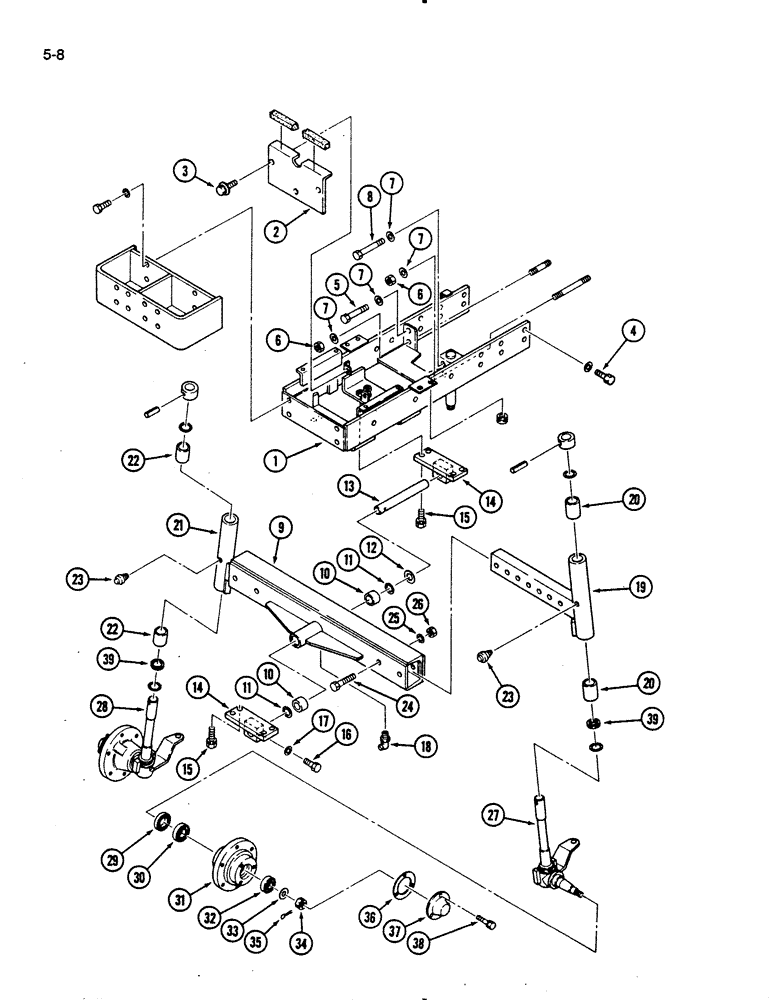

Запчасти Case IH 275 (5-08) - ADJUSTABLE FRONT AXLE (05) - STEERING

1

1962092C1

BRACKET

FRAME - front

1шт.

2

1962090C1

PLATE ASSY.

PLATE - baffle

1шт.

3

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

3шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

895-110008

WASHER - flat, 9 x 17 x 2 mm

3шт.

4

514-832

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

12шт.

5

514-915

BOLT,Hex, M14 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, M14 x 35 mm

1шт.

6

525-5105

NUT,M14 x 1.5, Cl 8

- hex, M14

2шт.

7

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

- hardened, 15 x 28 x 3 mm

4шт.

8

514-923

BOLT,Hex, M14 x 1.5 x 75mm, Cl 8.8

- hex special, M14 x 75 mm

1шт.

9

1962083C1

CENTER AXLE

AXLE ASSEMBLY - center section, Includes: Ref. 10

1шт.

10

1962084C1

BUSHING

- front axle

2шт.

11

1962519C1

O-RING

O-RING - 29 mm ID

2шт.

12

1962091C1

SPACER

- axle pivot pin

1шт.

13

1962094C1

AXLE PIN

PIN - axle pivot

1шт.

14

1962095C1

BRACKET

- pivot pin

2шт.

15

514-821

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

- hex, M12 x 1.25 x 40 mm

8шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

8шт.

16

1269753C1

BOLT

BOLT - special

1шт.

17

892-11010

LOCK WASHER,M10

1шт.

18

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING - grease, short, 65 degree, 1/8-27 PT

1шт.

19

1962096C1

CENTER AXLE

AXLE ASSEMBLY - left end section, Includes: Ref. 20

1шт.

20

1962084C1

BUSHING

- front axle

2шт.

21

1962467C1

CENTER AXLE

AXLE ASSEMBLY - right end section, Includes: Ref. 22

1шт.

22

1962084C1

BUSHING

- front axle

2шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease

2шт.

24

814-14065

BOLT,Hex, M14 x 2 x 65mm, Cl 8.8

Hex, M14 x 65, 8.8

4шт.

25

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

4шт.

26

525-5105

NUT,M14 x 1.5, Cl 8

- hex, M14

4шт.

27

1962100C1

KNUCKLE JOINT

SPINDLE - axle, left

1шт.

28

1962101C1

KNUCKLE JOINT

SPINDLE - axle, right

1шт.

29

1962085C1

OIL SEAL

SEAL - oil

2шт.

30

1271858C91

BALL BEARING

BEARING ASSEMBLY - ball

2шт.

31

1962097C1

HUB CAP

HUB - wheel, front

2шт.

32

1271862C91

BEARING, BALL

BEARING ASSEMBLY - ball

2шт.

33

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

2шт.

34

1271877C1

NUT

- castle, M16

2шт.

35

632-657

COTTER PIN,M4 x 40

PIN - cotter, 4 x 40 mm

2шт.

36

1962086C1

GASKET

- hub cap

2шт.

37

1962087C1

CYLINDER END CAP

CAP - hub

2шт.

38

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

6шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

6шт.

39

1271869C91

THRUST BEARING

ASSEMBLY - thrust, ball

2шт.
