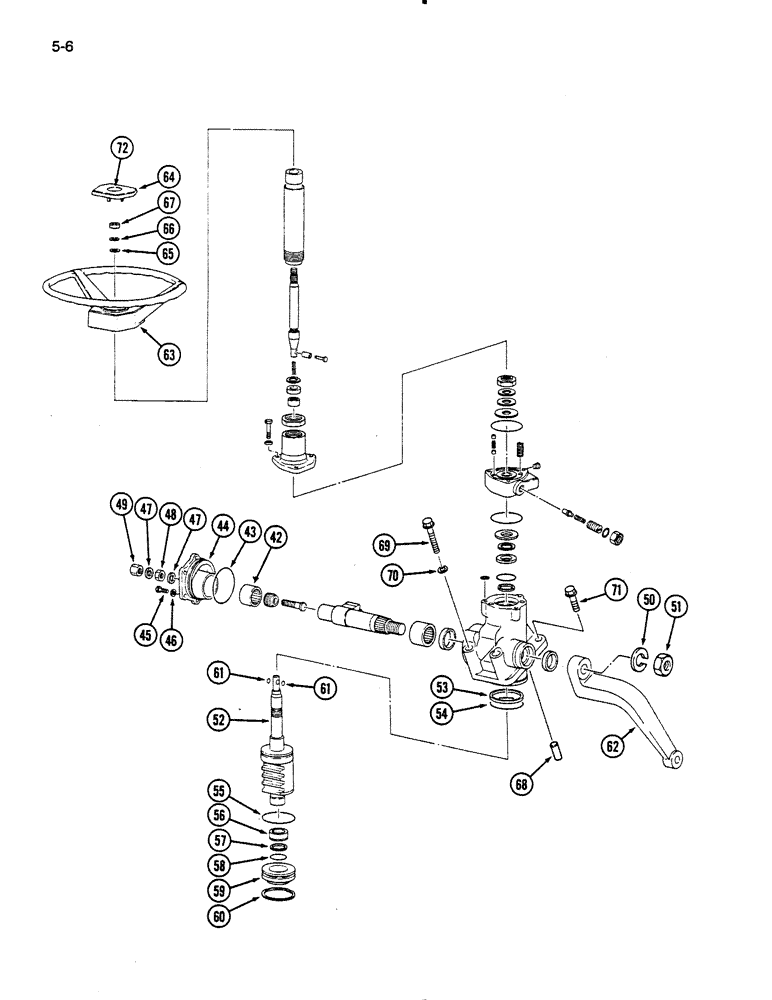

Запчасти Case IH 275 (5-06) - STEERING GEAR AND COLUMN, POWER STEERING (CONTD) (05) - STEERING

1275433C91

COVER ASSY

COVER ASSEMBLY - steering shaft, Includes: Ref. 42 - 44

1шт.

42

1275385C1

NEEDLE BEARING

- steering shaft

1шт.

43

NSS

NOT SOLD SEPARAT

O-RING - 60 mm ID

1шт.

Part of Seal Kit, P/N 1275450C1

1шт.

44

NSS

NOT SOLD SEPARAT

COVER - side (Order 1275433C91)

1шт.

45

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

- hex, M10 x 25 mm, Grade 10.9

4шт.

46

892-11010

LOCK WASHER,M10

4шт.

47

NSS

NOT SOLD SEPARAT

SEAL - packing

2шт.

Part of Seal Kit, P/N 1275450C1

1шт.

48

1275411C1

NUT

- hex, special, M10 x 1.5 mm

1шт.

49

1275410C1

NUT

- hex, special, M10 x 1.5 mm

1шт.

50

892-11027

LOCK WASHER,M27

WASHER - lock, 27 mm

1шт.

51

1963076C1

NUT

- hex, special

1шт.

52

1275431C1

GEAR WHEEL

GEAR ASSEMBLY - steering, Includes: Ref. 53 & 54

1шт.

53

NSS

NOT SOLD SEPARAT

SEAL - steering gear

1шт.

Part of Seal Kit, P/N 1275450C1

1шт.

54

NSS

NOT SOLD SEPARAT

O-RING - steering gear, 50 mm ID

1шт.

Part of Seal Kit, P/N 1275450C1

1шт.

1275432C91

COVER ASSY

COVER ASSEMBLY - front, Includes: Ref. 55 - 59

1шт.

55

NSS

NOT SOLD SEPARAT

O-RING - 56 mm ID

1шт.

Part of Seal Kit, P/N 1275450C1

1шт.

56

1275382C1

NEEDLE BEARING

- needle cover

1шт.

57

NSS

NOT SOLD SEPARAT

RING - cover

1шт.

Part of Seal Kit, P/N 1275450C1

1шт.

58

NSS

NOT SOLD SEPARAT

O-RING - cover, 30 mm ID

1шт.

Part of Seal Kit, P/N 1275450C1

1шт.

59

NSS

NOT SOLD SEPARAT

COVER - front (Order 1275432C91)

1шт.

60

934444R1

SNAP RING,M63, Int

RING - retaining, internal, 67 mm OD

1шт.

61

NSS

NOT SOLD SEPARAT

SEAL - steering gear

2шт.

Part of Seal Kit, P/N 1275450C1

1шт.

62

1962280C1

ARM

- pittman

1шт.

63

99328C1

WHEEL (STEERING)

WHEEL - steering

1шт.

64

99329C1

CYLINDER END CAP

CAP - steering wheel

1шт.

65

895-11014

WASHER,M14 x 28 x 2.5

- flat, 15 x 28 x 3 mm

1шт.

66

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

1шт.

67

525-5105

NUT,M14 x 1.5, Cl 8

- hex, M14 x 1.5 mm

1шт.

68

1963004C1

AXLE PIN

PIN - dowel

2шт.

69

814-10095

BOLT,Hex, M10 x 1.5 x 95mm, Cl 8.8

- hex, M10 x 95 mm

2шт.

70

892-11010

LOCK WASHER,M10

2шт.

71

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

892-11010

LOCK WASHER,M10

2шт.

72

1961804C1

DECAL

INSERT - steering wheel eagle

1шт.

1275450C2

STRIPPER PACKAGE

KIT - seal, Includes: Ref. 43, 47, 53, 54, 55, 57, 58 and 61 on Figures 5-04 and 5-06

1шт.
