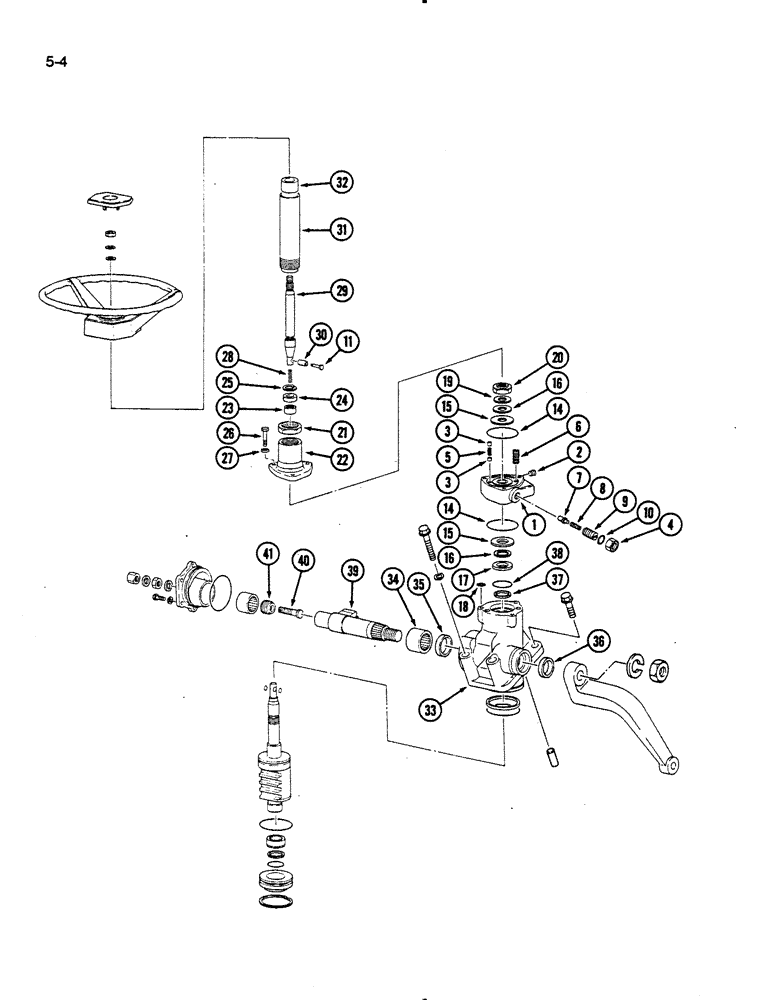

Запчасти Case IH 275 (5-04) - STEERING GEAR AND COLUMN, POWER STEERING (05) - STEERING

1275452C92

HOUSING

ASSEMBLY - valve (Replaces 1962274C1), Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

444689

PLUG,Hex Soc, 1/8"-27, Brass

- hex socket head, 1/8 - 27 automotive PT

2шт.

3

1275388C1

PISTON ASSY.

PISTON - valve housing

4шт.

4

1282967C1

NUT,M22 x 1.5 x 30mm

- poppet screw

1шт.

5

1275390C1

VALVE SPRING

SPRING - piston

2шт.

6

1282964C1

VALVE SPRING

SPRING - valve housing

2шт.

7

1282965C1

LOCK VALVE

VALVE - poppet

1шт.

8

1275394C1

VALVE SPRING

SPRING - poppet valve

1шт.

9

1282966C1

SCREW,M22 x 1.5 x 19mm

- poppet valve

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - poppet screw, 16 mm ID

1шт.

Part of Seal Kit, P/N 1275450C1

1шт.

11

1275407C1

RIVET

- steering shaft

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - 70 mm ID

2шт.

Part of Seal Kit, P/N 1275450C1

1шт.

15

1275414C1

WASHER

- flat, 52 mm OD

2шт.

16

1275417C1

NEEDLE BEARING

BEARING - needle, thrust

2шт.

17

1275415C1

WASHER

- flat, 43 mm OD

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - 8 mm ID

2шт.

Part of Seal Kit, P/N 1275450C1

1шт.

19

1275416C1

WASHER

- flat, 36 mm OD

1шт.

20

1275413C1

NUT

- hex, special, M22 x 1.5 mm

1шт.

21

1275418C1

NUT

- hex, special, M42 x 2.0 mm

1шт.

1275434C91

COVER ASSY

COVER ASSEMBLY - gear case, Includes: Ref. 22 - 25

1шт.

22

NSS

NOT SOLD SEPARAT

COVER - gear case

1шт.

23

1275398C1

NEEDLE BEARING

- cover

1шт.

24

1275399C1

OIL SEAL

SEAL - oil

1шт.

25

933110R1

SNAP RING,M32, Int

RING - retaining, internal, 34 mm OD

1шт.

26

514-728

BOLT,Hex, M10 x 1.25 x 65mm, Cl 8.8

- hex, M10 x 1.25 65 mm

3шт.

27

892-11010

LOCK WASHER,M10

3шт.

28

1275423C1

VALVE SPRING

SPRING - steering shaft

1шт.

29

1962275C1

SHAFT HOUSING

SHAFT ASSEMBLY - steering

1шт.

30

31258R1

LOCK PIN,M5 x 18, Slotted

PIN - spring

1шт.

31

1962272C1

BEAM

SHAFT - steering column

1шт.

32

1275387C1

BUSHING

- shaft

1шт.

33

1962277C1

CASE

HOUSING ASSEMBLY - gear box, Includes: Ref. 34 - 38

1шт.

34

1962268C1

NEEDLE BEARING,35 mm ID x 45 mm OD x 30 mm

BEARING - needle

1шт.

35

NSS

NOT SOLD SEPARAT

SEAL - packing

1шт.

Part of Seal Kit, P/N 1275450C1

1шт.

36

1962270C1

OIL SEAL

SEAL - oil

1шт.

37

NSS

NOT SOLD SEPARAT

RING - steering gear

1шт.

Part of Seal Kit, P/N 1275450C1

1шт.

38

NSS

NOT SOLD SEPARAT

O-RING - steering gear, 30 mm ID

1шт.

Part of Seal Kit, P/N 1275450C1

1шт.

39

1962279C1

SHAFT HOUSING

SHAFT - steering

1шт.

40

1275403C1

SCREW - adjuster

1шт.

41

1275404C1

ADJUSTER

- steering

1шт.

1275450C1

STRIPPER PACKAGE

KIT - seal, Includes: Ref. 10, 14, 18, 35, 37 and 38 on Figures 5-04 and 5-06

1шт.
