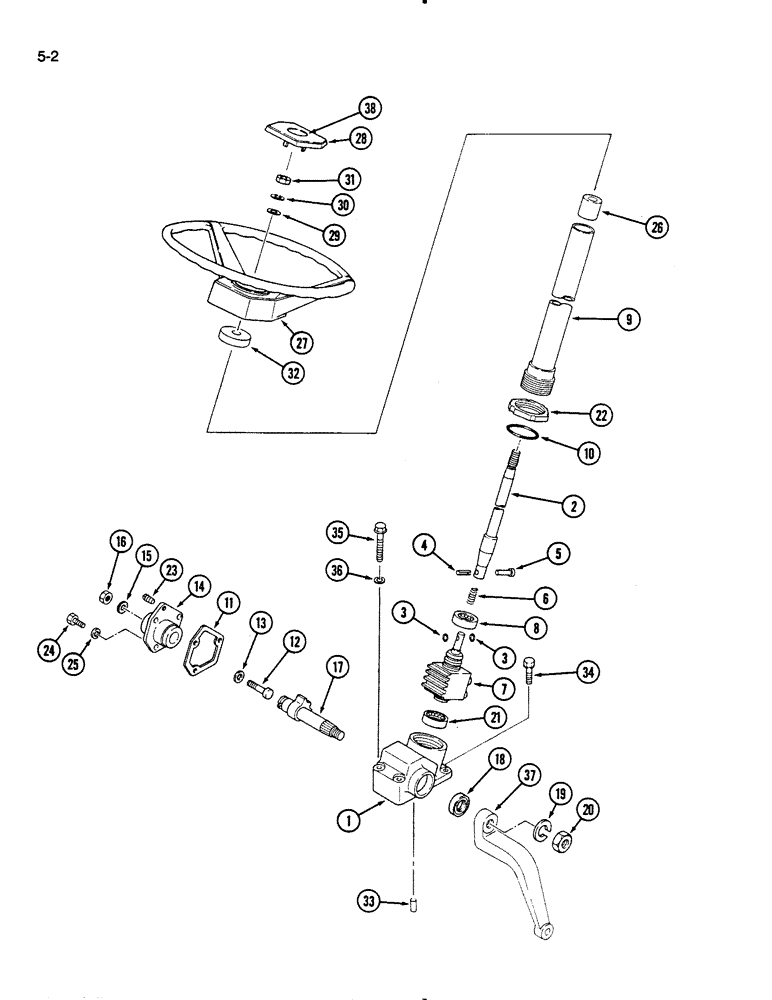

Запчасти Case IH 275 (5-02) - STEERING GEAR AND COLUMN, MANUAL STEERING (05) - STEERING

1

1962261C1

BOX

HOUSING - gear box

1шт.

1962266C2

STEERING ASSY

KIT - gear service, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT - steering

1шт.

3

1273674C1

O-RING,5.7mm ID x 10.6mm OD x 4.1mm

O-RING

2шт.

4

1273673C1

AXLE PIN

PIN - spring

1шт.

5

1273672C1

RIVET

- steering shaft

1шт.

6

1273685C1

VALVE SPRING

SPRING - steering shaft

1шт.

7

NSS

NOT SOLD SEPARAT

GEAR - steering

1шт.

8

1273670C91

BALL BEARING,25mm ID x 38mm OD x 11mm W

1шт.

9

1962262C1

BEAM

SHAFT - steering column

1шт.

10

1962260C1

O-RING,53.5mm ID x 2mm Width

- 54 mm ID

1шт.

11

1962259C1

MISC PACKAGING

GASKET - side cover

1шт.

12

1273676C1

ADJUSTMENT SCREW,M10 x 1.25 x 37mm

SCREW - adjusting

1шт.

13

1273677C1

SHIM

KIT - adjusting screw

1шт.

14

1962263C1

COVER ASSY

COVER - side

1шт.

15

1962257C1

SEALING WASHER

- seal

1шт.

16

525-5100

NUT,M10 x 1.25, Cl 8

- hex, M10 x 1.5 mm

1шт.

17

1962265C1

SHAFT HOUSING

SHAFT - steering sector

1шт.

18

1273682C1

OIL SEAL

SEAL - oil

1шт.

19

892-11020

LOCK WASHER,M20

WASHER, LOCK, M20

1шт.

20

525-5116

NUT,M20 x 1.5, Cl 8

- hex, M20

1шт.

21

1273670C91

BALL BEARING,25mm ID x 38mm OD x 11mm W

ASSEMBLY - steering gear

1шт.

22

1962258C1

NUT

- steering column

1шт.

23

103884

PLUG,Slotted, 1/4" NPT

- slotted headless, 1/4 PT

1шт.

24

614-825

BOLT - hex, M8 x 25 mm

3шт.

25

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

26

1273665C1

BUSHING

- column

1шт.

27

99328C1

WHEEL (STEERING)

WHEEL - steering

1шт.

28

99329C1

CYLINDER END CAP

CAP - wheel

1шт.

29

895-11014

WASHER,M14 x 28 x 2.5

- flat, 15 x 28 x 3 mm

1шт.

30

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

1шт.

31

525-5105

NUT,M14 x 1.5, Cl 8

- hex, M14 x 1.5 mm

1шт.

32

1273231C1

COVER ASSY

COVER - steering column

1шт.

33

1963004C1

AXLE PIN

PIN - dowel

2шт.

34

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

892-11010

LOCK WASHER,M10

2шт.

35

814-10085

BOLT,Hex, M10 x 1.5 x 85mm, Cl 8.8

2шт.

36

892-11010

LOCK WASHER,M10

2шт.

37

1962264C1

ARM

- pittman

1шт.

38

1961804C1

DECAL

INSERT - steering wheel eagle

1шт.
