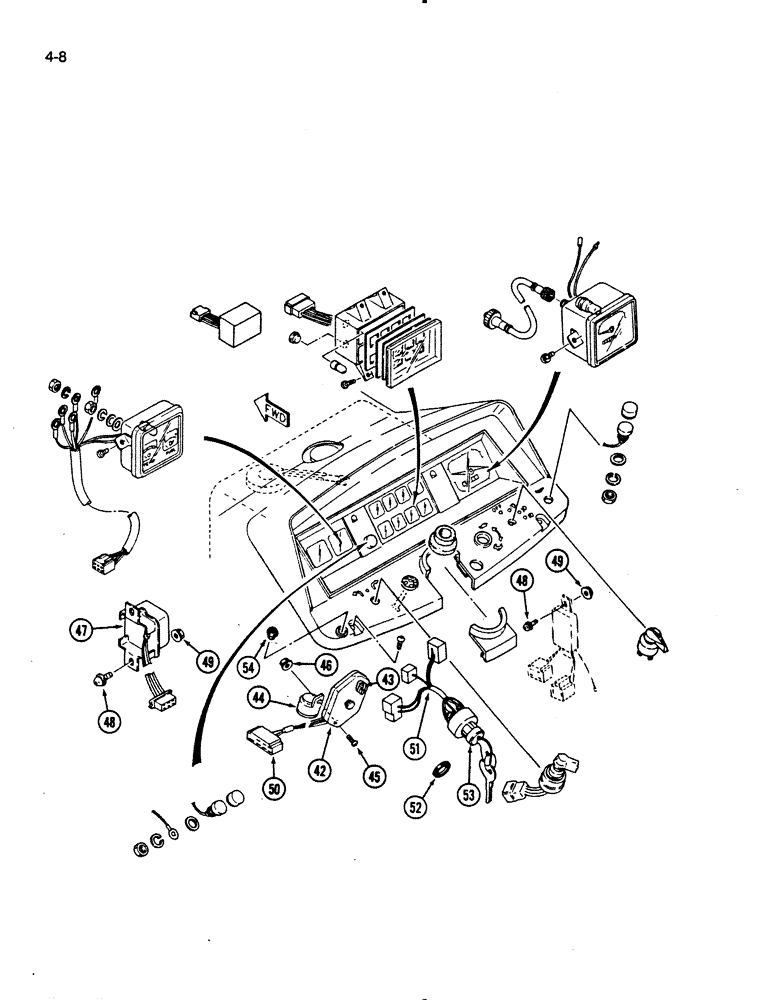

Запчасти Case IH 275 (4-08) - INSTRUMENT CLUSTER, FUSES AND FUSE HOLDER (CONTD) (04) - ELECTRICAL SYSTEMS

42

1271723C1

BOX

HOLDER - fuse, Include: Ref. 43

1шт.

43

9426334

FUSE,10 Amp, Type 3AG

- 10 ampere

4шт.

44

1271722C1

FLASHER UNIT

FLASHER - turn signal

1шт.

45

30290R1

SCREW,Cross Pan Hd, M5 x 20

- pan head cross recess, M5 x 20 mm

2шт.

46

934871R1

NUT,M5, Cl 5

- hex, M5, class 5

2шт.

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

2шт.

47

1271720C1

REGULATOR

- voltage

1шт.

48

30577R1

SCREW,Cross Pan Hd, M6 x 25

- machine, pan head cross recess, M6 x 25 mm

4шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

49

31109R1

NUT,M6 x 1, Flg, Cl 8

- hex, flange, M6, Grade 10

4шт.

50

1962567C1

HARNESS

- wiring (Replaces 1265154C2)

1шт.

51

1963106C1

HARNESS

- wiring, ignition switch

1шт.

52

1963152C1

MISC PACKAGING

PACKING - starter switch

1шт.

53

99178C1

IGNITION SWITCH

SWITCH ASSEMBLY - ignition, Includes: Ref. 40 & 41 on Figure 4-06 and 52

1шт.

54

1963595C1

PLUG

- rubber

1шт.
