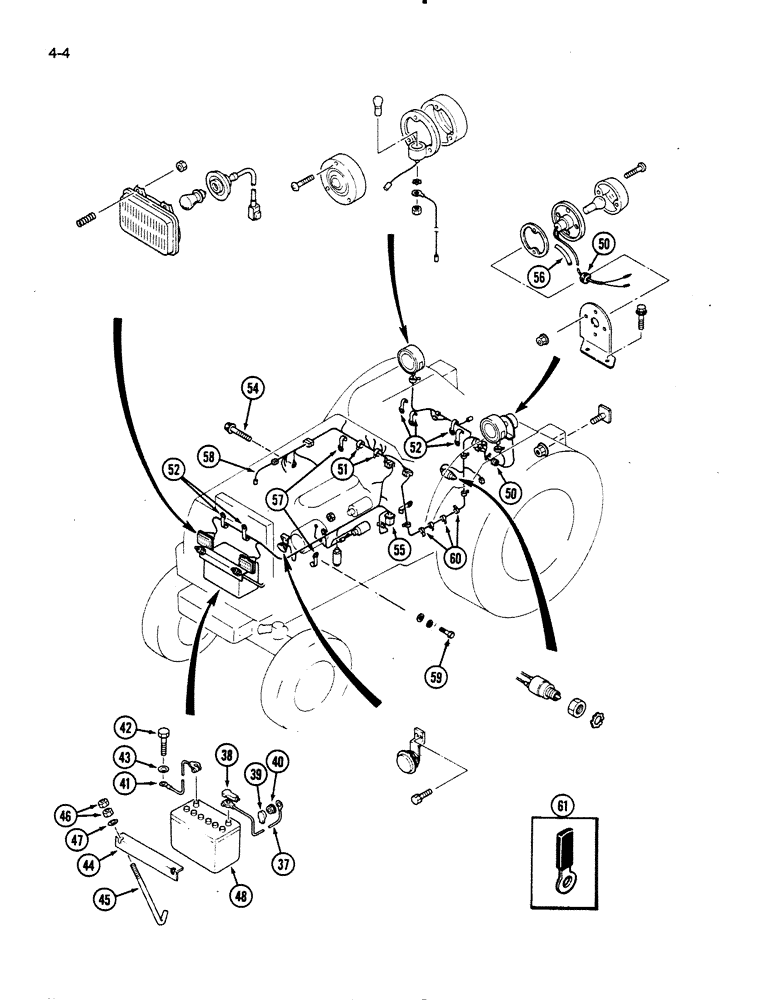

Запчасти Case IH 275 (4-04) - WIRING HARNESS AND BATTERY (CONTD) (04) - ELECTRICAL SYSTEMS

37

1962370C1

CABLE PULLING GRIP

CABLE ASSEMBLY - battery, positive, Includes: Ref. 38 & 39

1шт.

38

1963089C1

CAP - battery terminal

1шт.

39

1962362C1

CYLINDER END CAP

CAP - battery cable

1шт.

40

31082R1

NUT,M8 x 1.25, Flg, Cl 8

- flange, M8

1шт.

41

1962363C1

CABLE PULLING GRIP

CABLE ASSEMBLY - battery, negative

1шт.

42

1962561C1

BOLT (SPREADER),M8 - 1.25 x 25mm

BOLT- hex, special

1шт.

43

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

44

1962371C1

CLAMP

BRACKET - battery hold down

1шт.

45

1271761C1

BOLT,M6 x 1 x 275mm

ROD - battery hold down

2шт.

46

825-1106

NUT,Hex, M6, Cl 8

- hex, M6

4шт.

47

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

48

B2472

DRY BATTERY

BATTERY - 12 volt (Replaces 1962372C1) (Replaces T40362)

1шт.

50

117961

GROMMET,3/8" ID x 27/32" x .062"

- fender

3шт.

51

111619C1

STRAP

- tie

9шт.

52

1271755C1

CLAMP

- wire

4шт.

54

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

1шт.

55

1963090C1

RELAY

- wiring

1шт.

56

1963005C1

TUBE

- tail lamp (Replaces 1963095C1)

1шт.

57

1962981C1

CLAMP

- wire (Replaces 1963094C1)

4шт.

58

1963091C1

HARNESS

- wiring

1шт.

59

613-5012

BOLT,Hex, M5 x 0.8 x 12mm, Cl 8.8, Full Thd

- hex, M5 x 12 mm

1шт.

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

1шт.

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

60

533959R1

CABLE TIE,.135" x 11"

STRAP - retaining

4шт.

61

1963134C1

CLAMP

- cable

1шт.
