Запчасти Case IH 275 (4-02) - WIRING HARNESS AND BATTERY (04) - ELECTRICAL SYSTEMS

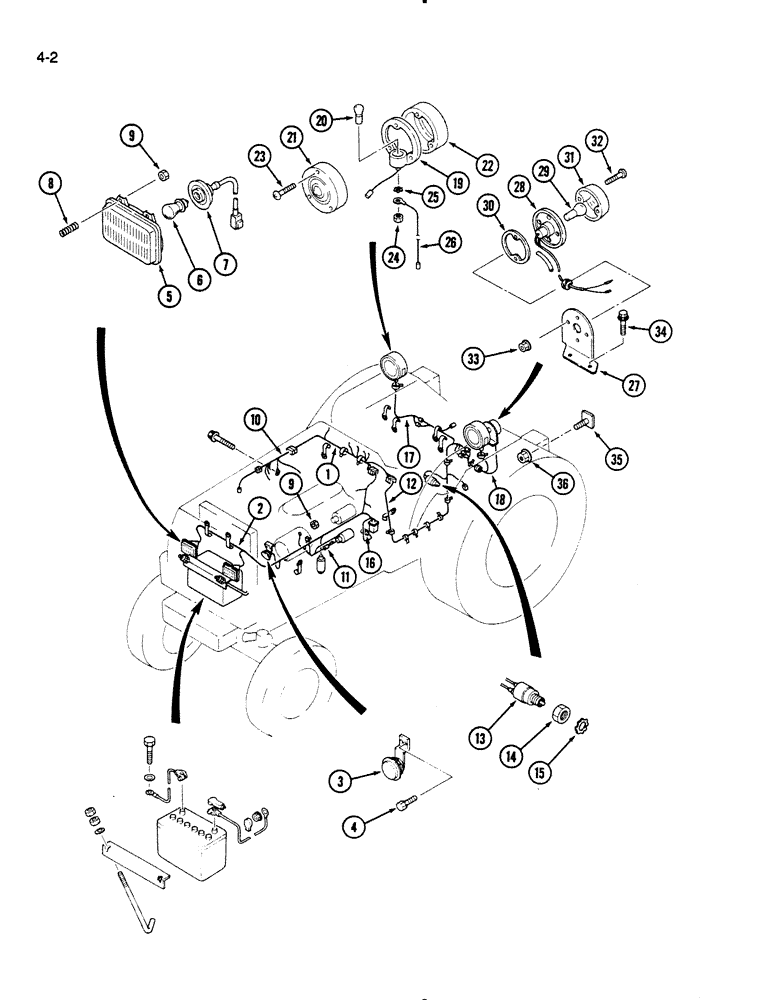

Схема запчастей Case IH 275 - (4-02) - WIRING HARNESS AND BATTERY (04) - ELECTRICAL SYSTEMS
16
36
23
17
34
10
9
32
2
15
30
13
14
11
3
18
5
22
12
8
29
1
28
33
19
25
35
27
7
4
9
21
26
6
20
24
31

Артикул

Название

Примечание

Количество

1

1962366C1

HARNESS

- wiring

1шт.

2

1962367C1

HARNESS

- wiring, front

1шт.

3

1271721C1

HORN

- tractor

1шт.

4

814-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

1271730C91

LIGHT

LAMP ASSEMBLY - head, Includes: Ref. 5 - 7

2шт.

5

NSS

NOT SOLD SEPARAT

UNIT - sealed beam

1шт.

6

1271731C1

BULB

- head lamp

1шт.

7

NSS

NOT SOLD SEPARAT

SOCKET - head lamp

1шт.

8

1271733C1

VALVE SPRING

SPRING - headlight adjusting

6шт.

9

934871R1

NUT,M5, Cl 5

- flange, M5

7шт.

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

7шт.

10

1962368C1

HARNESS

- wiring

1шт.

11

1962562C1

CONNECTOR, ELEC

LINK - fusible

1шт.

12

1962369C1

HARNESS

- wiring

1шт.

13

1271754C2

SWITCH

ASSEMBLY - safely, Includes: Ref. 14 & 15

1шт.

item 13. NEUTRAL safety.

1шт.

14

NSS

NOT SOLD SEPARAT

NUT - M16 x 1.5

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - safety switch

1шт.

16

1963088C1

SWITCH

ASSEMBLY - brake lamp

1шт.

ITEM 16. DESCRIPTION SHOULD ALSO SAY "used also for PTO NEUTRAL SAFETY SWITCH". per note in 275 tractor figure 4-3.

1шт.

17

1962364C1

HARNESS

- wiring, rear

1шт.

18

1962365C1

HARNESS

- wiring

1шт.

1271734C91

LIGHT ASSY.

LAMP ASSEMBLY - signal, Includes: Ref. 19 - 25 and 50

2шт.

19

NSS

NOT SOLD SEPARAT

GASKET - lamp, rubber

1шт.

20

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

21

NSS

NOT SOLD SEPARAT

LENS - front

1шт.

22

NSS

NOT SOLD SEPARAT

LENS - rear

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW - M4 x 40 mm

3шт.

24

30168R1

NUT,M10, Cl 10

- hex, M10, Grade 10

1шт.

25

893-11010

LOCK WASHER,Ext Tooth, M10

WASHER, LOCK, Ext Tooth, M10

1шт.

26

NSS

NOT SOLD SEPARAT

WIRE - signal lamp, 8-5/64 inch (205 mm) long (Order B17725 and cut to length, 1-54773R1 terminal, 1-244058R1 terminal and 2-165565R1, or 2-238100R1 or 2-915073R1 terminals)

1шт.

27

1265152C1

BRACKET

- tail lamp

1шт.

1271739C91

LIGHT

LAMP ASSEMBLY - tail, Includes: Ref. 28 - 32 and 56

1шт.

28

NSS

NOT SOLD SEPARAT

SOCKET - tail lamp

1шт.

29

71421

BULB,R5W, 12V, 5W

- tail lamp (No. 67)

1шт.

30

NSS

NOT SOLD SEPARAT

GASKET - tail lamp, rubber

1шт.

31

NSS

NOT SOLD SEPARAT

LENS - tail lamp

1шт.

32

NSS

NOT SOLD SEPARAT

SCREW - M3 x 30 mm

2шт.

33

934871R1

NUT,M5, Cl 5

- flange, M5

2шт.

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

2шт.

34

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

2шт.

35

1271744C1

REFLECTOR

- red

2шт.

36

31109R1

NUT,M6 x 1, Flg, Cl 8

- flange, M6, Grade 10

2шт.
