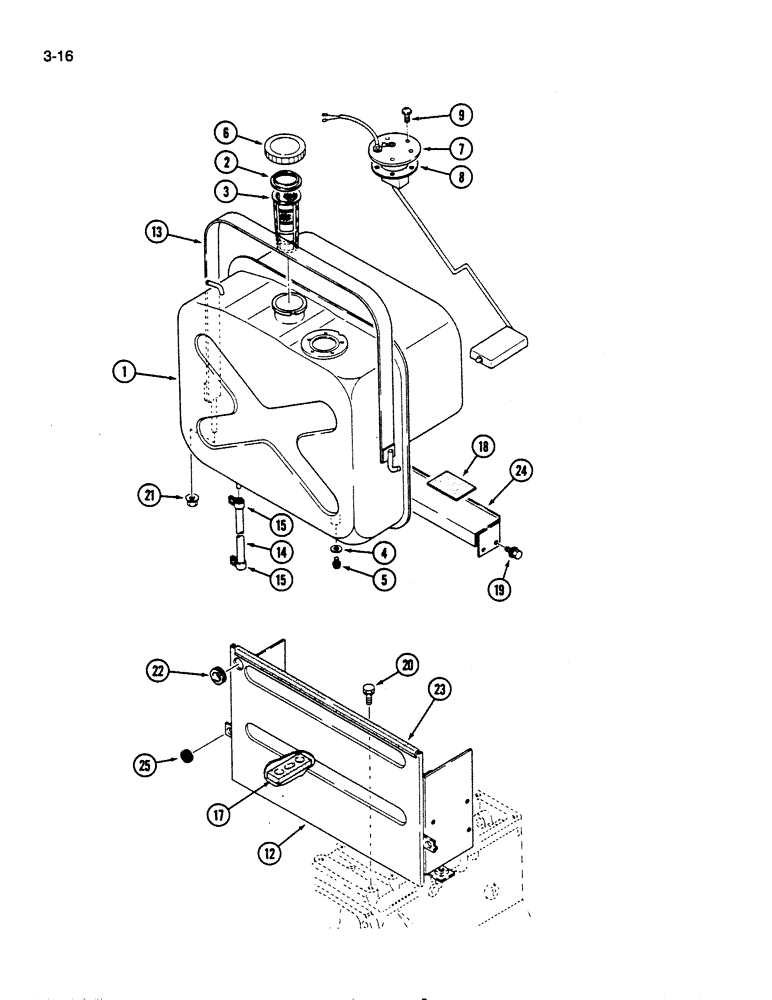

Запчасти Case IH 275 (3-16) - FUEL TANK AND SUPPORTS (03) - FUEL SYSTEM

1

1961851C1

FUEL TANK

TANK - fuel

1шт.

2

1269627C1

SEAL

- fuel tank cap

1шт.

3

1269628C2

STRAINER ELEMENT

STRAINER - fuel

1шт.

4

1275284C1

SEALING WASHER

SEAL - drain plug

1шт.

5

1269630C1

BOLT,M8 x 1.25 x 12mm

PLUG - drain

1шт.

6

99395C1

CAP ASSY.

CAP - fuel tank

1шт.

7

1961852C1

GAUGE ASSY.

UNIT ASSEMBLY - fuel level sender, Includes: Ref. 8

1шт.

8

1269634C1

GASKET

- fuel level sender

1шт.

9

30496R1

SCREW,Cross Pan Hd, M4 x 10

- pan head cross recess, M4 x 10 mm, Grade 4.8

5шт.

892-11004

LOCK WASHER,M4

WASHER, LOCK, M4

5шт.

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(Flat, 4.3 x 9 x 0.8 mm) M4

5шт.

12

1961853C1

BRACKET

- tank

1шт.

13

1961854C1

BAND

- fuel tank

1шт.

14

NSS

NOT SOLD SEPARAT

HOSE - fuel, 13-25/64 inch (340 mm) long (Order 427683C1 and, Serial Range: cut-length)

1шт.

15

27860R1

HOSE CLAMP,#06, .44/.78 Type F Worm, W/liner

CLAMP - hose

2шт.

17

1961849C1

SUPPORT ASSY.

BRACKET - rubber

2шт.

18

1961848C1

PLATE ASSY.

PLATE - rubber

2шт.

19

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER - lock, 6 mm

4шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

4шт.

20

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

892-11010

LOCK WASHER,M10

4шт.

21

31082R1

NUT,M8 x 1.25, Flg, Cl 8

- flange, M8, Grade 8

1шт.

22

1962974C1

GROMMET

- rubber, fuel return

1шт.

23

1961847C1

BAND

EDGE - rubber

1шт.

24

1961855C1

BRACKET

PLATE - rubber

1шт.

25

1962975C1

GROMMET

- rubber

2шт.

427683C1

HOSE,6.35mm ID x 7620mm L, SAE 30R7

- rubber, 1/4 ID x 12 inch (6 x 305 mm)

1шт.
