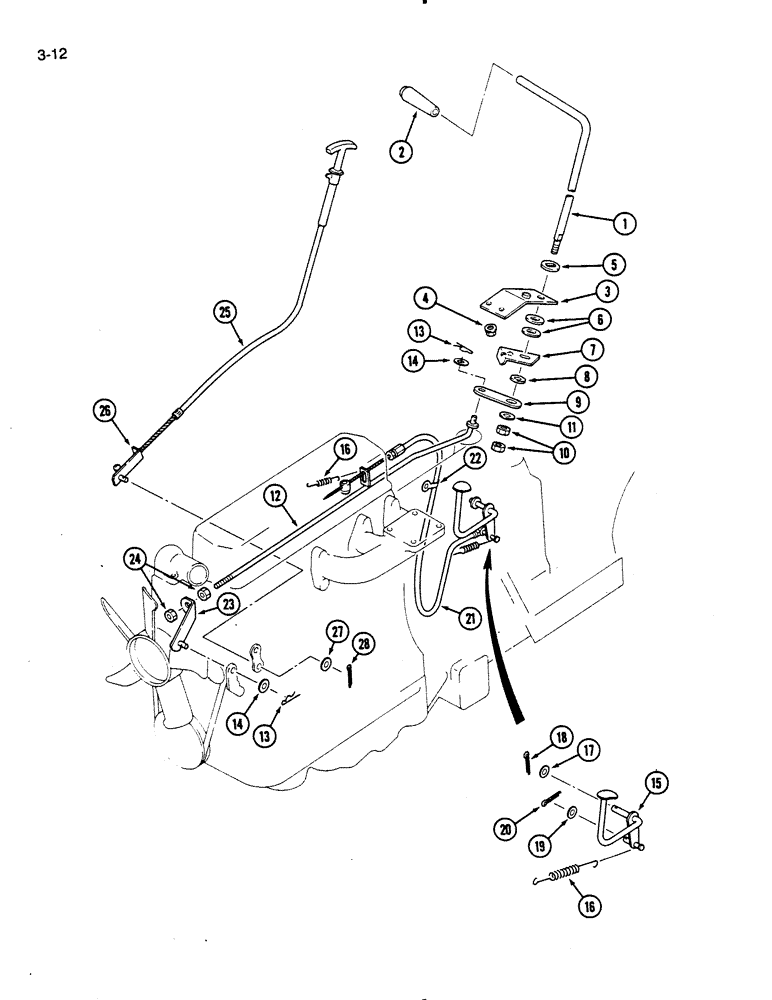

Запчасти Case IH 275 (3-12) - THROTTLE CONTROLS, PRIOR TO P.I.N. CCJ0028423 (03) - FUEL SYSTEM

1

1962195C1

LEVER

- throttle

1шт.

2

1962980C1

GRIP

KNOB - throttle lever (Replaces 1269854C1)

1шт.

3

1962189C1

PLATE

- throttle lever

1шт.

4

31109R1

NUT,M6 x 1, Flg, Cl 8

- flange, M6, Grade 10

2шт.

5

1282541C1

WASHER

- flat, special (Replaces 1962190C1)

1шт.

6

1269855C1

WASHER

- spring

2шт.

7

1962193C1

ARM

- control

1шт.

8

1962191C1

SPACER

- 4 mm thick

1шт.

9

1962192C1

LEVER

- control

1шт.

10

525-5115

NUT,M12 x 1.25, Cl 8

- hex, M8, Grade 10

2шт.

11

896-16008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

- hardened, 9 x 17 x 2 mm

1шт.

12

1962196C1

ROD

- control

1шт.

13

1269734C1

AXLE PIN

PIN - hair

2шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

2шт.

15

1962197C1

PEDAL

- foot throttle

1шт.

16

1269552C1

VALVE SPRING

SPRING - park lock pedal (Replaces 1962174C1)

2шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

1шт.

18

632-628

COTTER PIN,M3.2 x 20

PIN - cotter, 3 x 20 mm

1шт.

19

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

20

932951R1

COTTER PIN,M1.6 x 12

PIN - cotter, 3 x 20 mm

1шт.

21

1981368C1

ELECTRICAL WIRE

CABLE - throttle (Replaces 1962198C1)

1шт.

22

1271755C1

CLAMP

- cable

1шт.

23

1963062C1

JOINT TURNING

LEVER - throttle linkage

1шт.

24

825-1108

NUT,Hex, M8, Cl 8

2шт.

25

1963063C1

CABLE PULLING GRIP

CABLE ASSEMBLY - fuel shutoff, Includes: Ref. 29 & 30

1шт.

26

1962576C1

JOINT TURNING

CONNECTOR - cable end

1шт.

27

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

28

932952R1

COTTER PIN,M2 x 20

PIN - cotter, 2 x 20 mm

1шт.

1981370C1

PLATE ASSY.

mounts to R.H. side of rear engine plate

1шт.

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

for plate mounting

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , For plate mounting M8

1шт.
