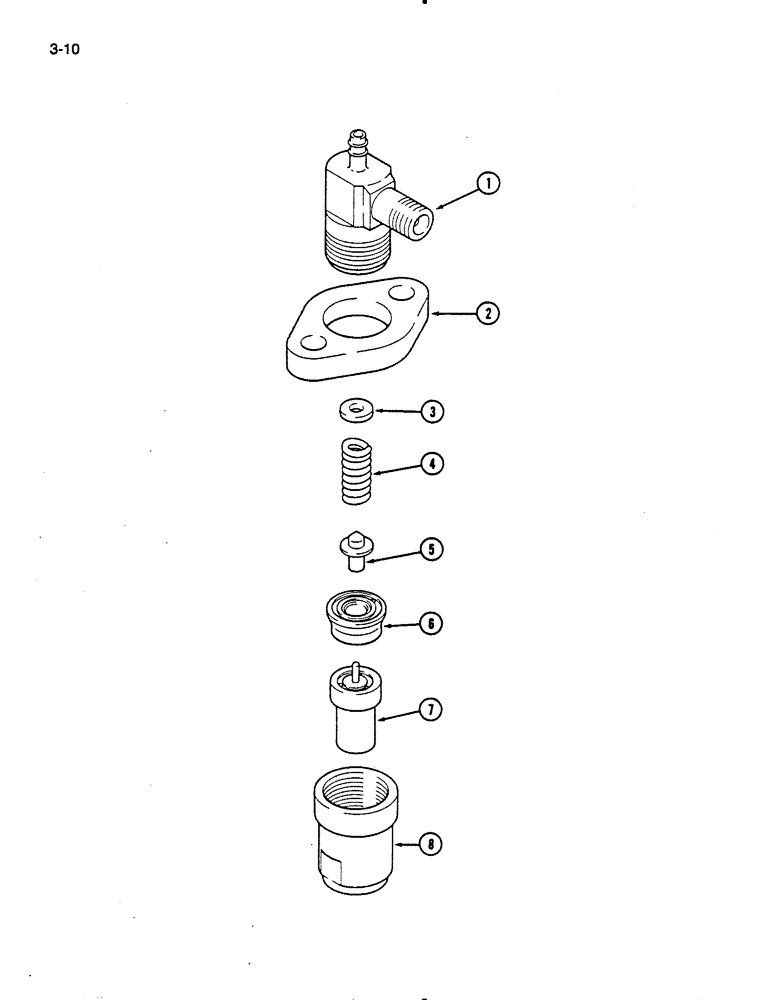

Запчасти Case IH 275 (3-10) - FUEL INJECTOR NOZZLE (03) - FUEL SYSTEM

1962898C1

NOZZLE INJECTION

NOZZLE AND HOLDER ASSEMBLY - fuel injection, new, Includes: Ref. 1 - 8

3шт.

1

NSS

NOT SOLD SEPARAT

BODY - injector

1шт.

2

NSS

NOT SOLD SEPARAT

FLANGE - holder

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER - adjusting

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING - pressure

1шт.

5

NSS

NOT SOLD SEPARAT

PIN - pressure

1шт.

6

NSS

NOT SOLD SEPARAT

STOP - nozzle assembly

1шт.

7

NSS

NOT SOLD SEPARAT

TIP ASSEMBLY - nozzle injector

1шт.

8

NSS

NOT SOLD SEPARAT

CAP NUT - nozzle end

1шт.
