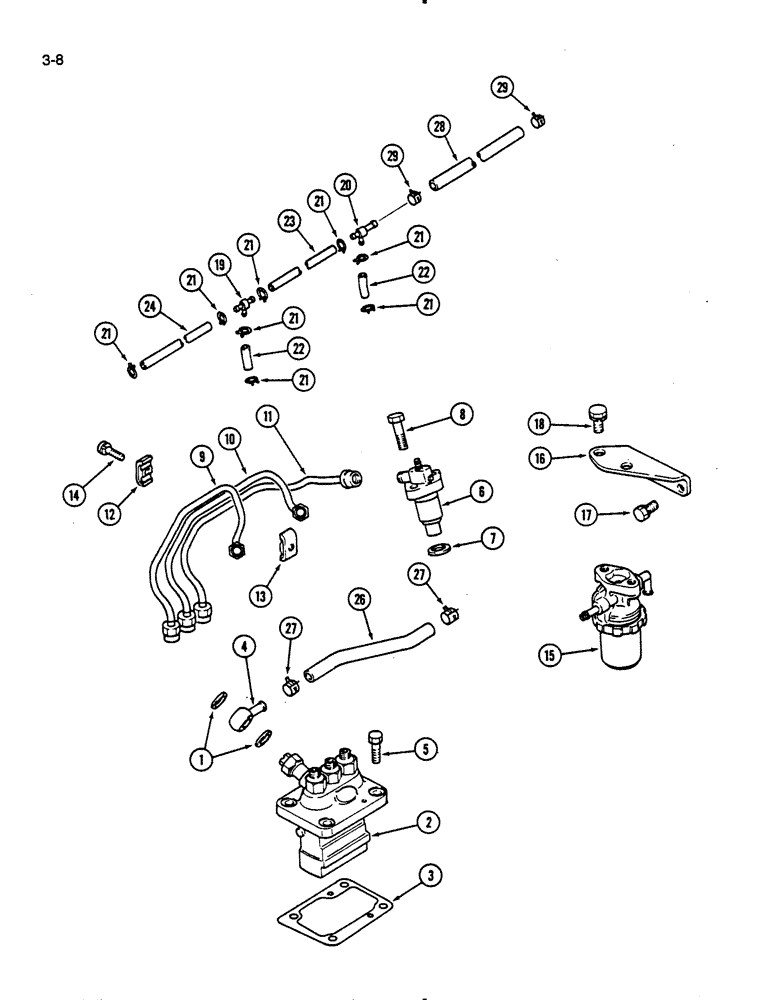

Запчасти Case IH 275 (3-08) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM

1

1273070C1

SEALING WASHER

SEAL - washer

2шт.

2

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, See Figure 3-02

1шт.

3

1275096C1

KIT

SHIM KIT - injection pump adjusting

1шт.

4

1962897C1

COLLAR CLAMP

TEE - union

1шт.

5

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

6

REF

INSTRUCTION

NOZZLE ASSEMBLY - fuel injection, See Figure 3-10

3шт.

7

1273000C1

GASKET

- nozzle holder

3шт.

8

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

6шт.

9

1962899C1

FUEL TUBE

TUBE ASSEMBLY - fuel injection, No. 1 cylinder

1шт.

10

1962900C1

FUEL TUBE

TUBE ASSEMBLY - fuel injection, No. 2 cylinder

1шт.

11

1962901C1

FUEL TUBE

TUBE ASSEMBLY - fuel injection, No. 3 cylinder

1шт.

12

1273005C1

CLAMP

- injection tubes

2шт.

13

1273004C1

CLAMP

- injection tubes

2шт.

14

30194R1

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

- hex, M6 x 25 mm

2шт.

892-11006

LOCK WASHER,M6

WASHER - lock, 8 mm

2шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

15

REF

INSTRUCTION

FILTER ASSEMBLY - fuel, See Figure 3-06

1шт.

16

1962774C1

SUPPORT ASSY.

BRACKET - filter mounting

1шт.

17

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER - lock, 10 mm

2шт.

18

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

892-11010

LOCK WASHER,M10

2шт.

1962776C1

LINE

HOSE ASSEMBLY - leak off, Includes: Ref. 19 - 24

1шт.

19

1273011C1

TEE

- fuel, leak off

1шт.

20

1962777C1

JOINT TURNING

TEE - fuel, leak off

1шт.

21

28068R1

HOSE CLAMP,#4, 1/4", Spring

CLAMP - hose

8шт.

22

NSS

NOT SOLD SEPARAT

HOSE - rubber, 13/64 ID x 63/64 inch (5 ID x 25 mm)

2шт.

Order 1954142C1 and cut to length.

1шт.

23

NSS

NOT SOLD SEPARAT

HOSE - rubber, 13/64 ID x 3-35/64 inch (5 ID x 90 mm)

1шт.

Order 1954142C1 and cut to length.

1шт.

24

NSS

NOT SOLD SEPARAT

HOSE - rubber, 13/64 ID x 4-33/64 inch (5 ID x 115 mm)

1шт.

Order 1954142C1 and cut to length.

1шт.

26

NSS

NOT SOLD SEPARAT

HOSE - fuel, 5/16 ID x 9 inch long (8 x 230 mm) (Order 1954143C1 and, Serial Range: cut-length)

1шт.

27

210511R1

HOSE CLAMP,#8, 1/2", Spring

CLAMP - hose

2шт.

28

NSS

NOT SOLD SEPARAT

HOSE - fuel, 1/4 ID 17-23/32 inch (6 x 450 mm) (Order 427683C2 and, Serial Range: cut-length)

1шт.

29

210511R1

HOSE CLAMP,#8, 1/2", Spring

CLAMP - hose

2шт.

427683C2

HYDRAULIC HOSE,6.35 mm ID BULK, SAE 30R6 or SAE 30R7

HOSE - rubber, 1/4 ID x 12 inch (6 x 305 mm)

1шт.

1954142C1

FUEL HOSE,0.19" ID x 25.00' Bulk, SAE 30R1

0.19" ID x 25.00' Bulk, SAE 30R1

1шт.

1954143C1

FUEL HOSE,0.31" ID x 25.00' Bulk

0.31" ID x 25.00' Bulk

1шт.
