Запчасти Case IH 275 (3-06) - FUEL FILTER (03) - FUEL SYSTEM

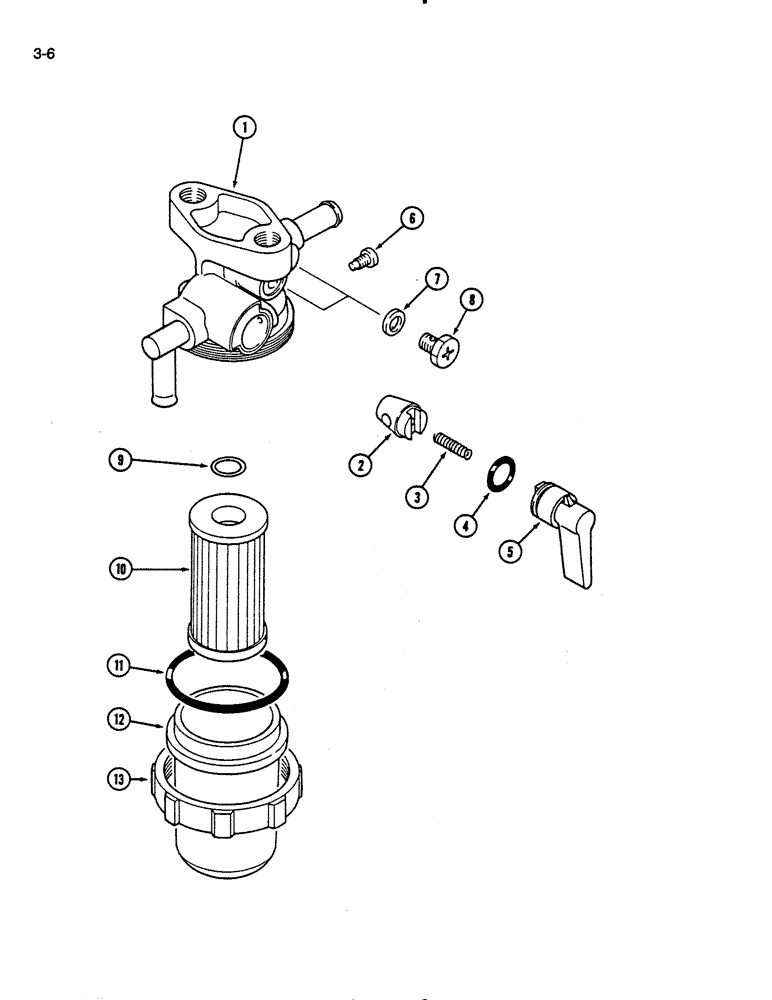

Схема запчастей Case IH 275 - (3-06) - FUEL FILTER (03) - FUEL SYSTEM
3
2
6
11
10
13
1
9
5
7
8
12
4

Артикул

Название

Примечание

Количество

1962773C1

FILTER CARTRIDGE

FILTER ASSEMBLY - fuel, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - filter (Order 1962773C1)

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - filter (Order 1962773C1)

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING - valve (Order 1962773C1)

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - valve (Order 1962773C1)

1шт.

5

NSS

NOT SOLD SEPARAT

LEVER - valve (Order 1962773C1)

1шт.

6

NSS

NOT SOLD SEPARAT

SCREW - filter body (Order 1962773C1)

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET - air vent screw (Order 1962773C1)

2шт.

8

NSS

NOT SOLD SEPARAT

SCREW - air vent (Order 1962773C1)

2шт.

1273082C1

KIT

ELEMENT KIT - fuel filter, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - filter cup (Order 1273082C1)

1шт.

10

NSS

NOT SOLD SEPARAT

ELEMENT - fuel filter (Order 1273082C1)

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - element (Order 1273082C1)

1шт.

12

1981529C1

BOWL

- filter (Order 1962773C1)

1шт.

13

NSS

NOT SOLD SEPARAT

NUT - ring (Order 1962773C1)

1шт.

Выбрано товаров: 15
