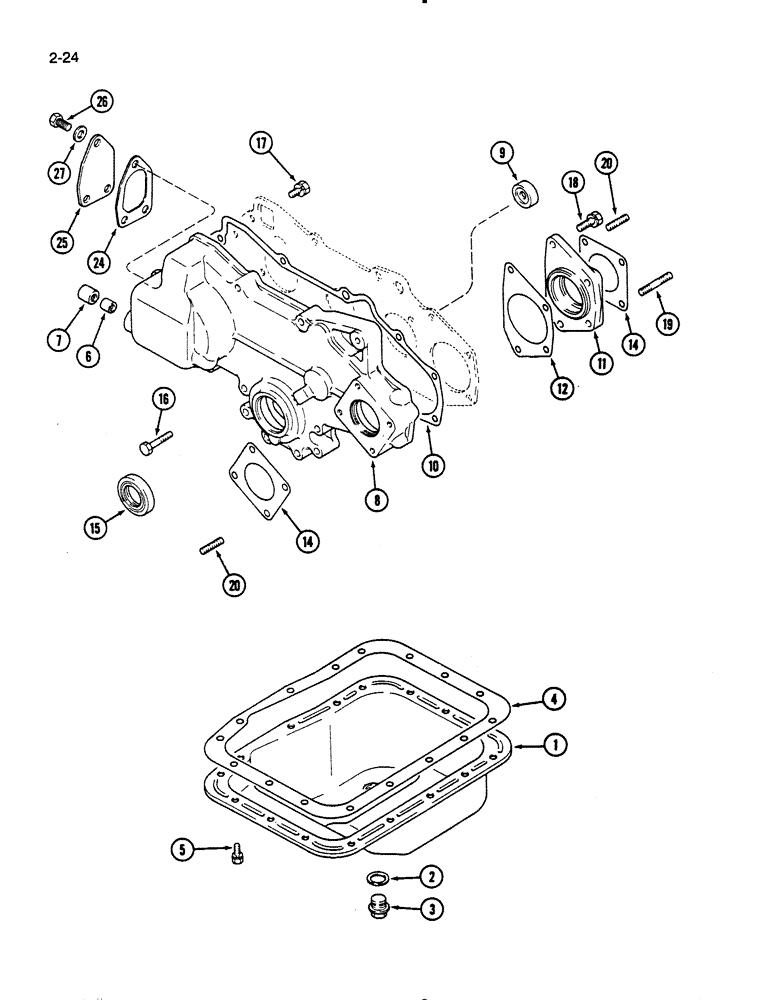

Запчасти Case IH 275 (2-24) - OIL PAN AND FRONT GEAR COVER (02) - ENGINE

1

1962823C1

PAN ASSY.

PAN ASSEMBLY - oil, engine, Includes: Ref. 2 & 3

1шт.

2

1271905C1

GASKET

- drain plug

1шт.

3

1271906C1

PLUG

- oil drain

1шт.

4

1962792C1

GASKET

- oil pan

1шт.

5

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

16шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

16шт.

6

1273346C91

NEEDLE BEARING

BEARING ASSEMBLY - needle

1шт.

7

1273347C91

NEEDLE BEARING

BEARING ASSEMBLY - needle

1шт.

8

1962825C1

CASE

COVER ASSEMBLY - gear, front (Prior to Engine Serial No. K3M5396)

1шт.

8

1963630C1

CASE

COVER ASSEMBLY - gear, front (Engine Serial No. K3M5396 and after)

1шт.

9

1273077C1

PLUG

- thrust

1шт.

10

1962791C1

GASKET

- gear cover

1шт.

11

1962827C1

HOUSING

- pump gear bearing

1шт.

12

1962797C1

GASKET

- housing

1шт.

14

1962335C1

GASKET

- pump

2шт.

15

1273348C1

OIL SEAL

SEAL - oil

1шт.

16

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

- hex, M8 x 45 mm

10шт.

17

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

18

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

19

1273128C1

STUD

- threaded, M8 x 45 mm

2шт.

20

1273130C1

STUD

- threaded, M8 x 22 mm

6шт.

24

1963632C1

GASKET

- governor cover

1шт.

25

1963631C1

COVER ASSY

COVER - governor

1шт.

26

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

3шт.

27

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.
