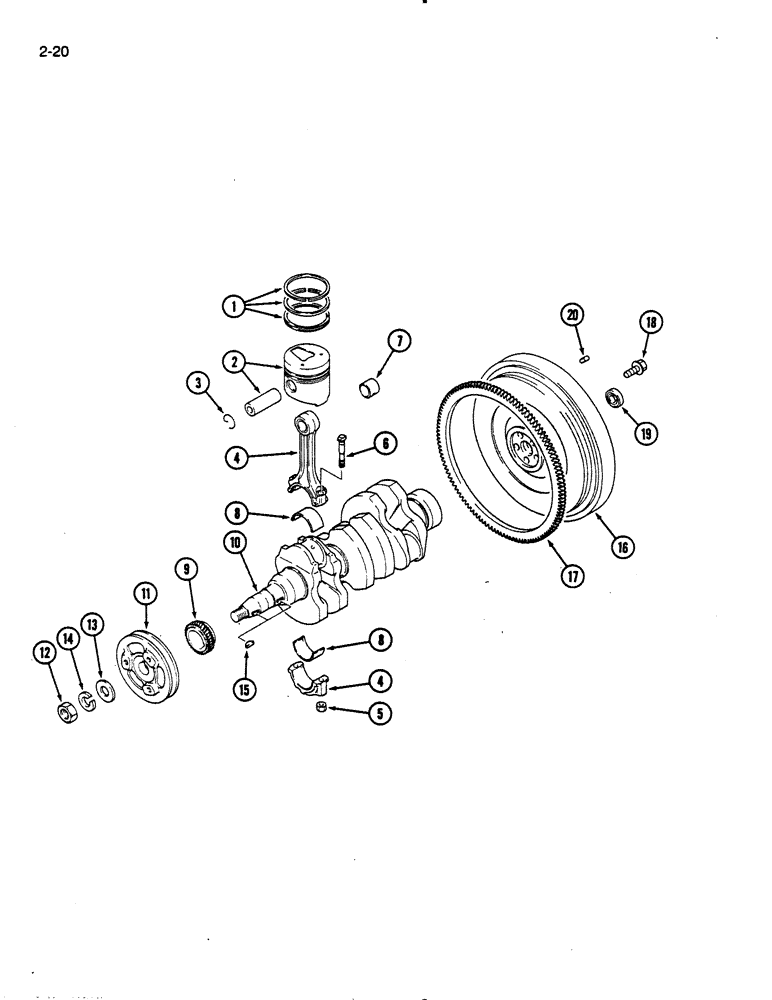

Запчасти Case IH 275 (2-20) - PISTON, CONNECTING ROD, CRANKSHAFT AND FLYWHEEL (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
1962844C1
SET OF RINGS
KIT - piston, standard
3шт.
1
1962846C1
RING
KIT - piston, 0.25 mm oversize
3шт.
1
1962848C1
RING
KIT - piston, 0.50 mm oversize
3шт.
1
1962850C1
RING
KIT - piston, 0.75 mm oversize
3шт.
2
1962852C1
PISTON ASSY.
PISTON AND PIN KIT - standard
3шт.
2
1962854C1
PISTON ASSY.
PISTON AND PIN KIT - 0.25 mm oversize
3шт.
2
1962856C1
PISTON ASSY.
PISTON AND PIN KIT - 0.50 mm oversize
3шт.
2
1962858C1
PISTON ASSY.
PISTON AND PIN KIT - 0.75 mm oversize
3шт.
3
1273079C1
RING
CLIP - piston pin retainer
6шт.
4
1962859C1
ROD
ASSEMBLY - connecting, Includes: Ref. 5 - 7
3шт.
5
1962865C1
NUT
- connecting rod
6шт.
6
1962866C1
BOLT (SPREADER),M9-1 x 57.5mm
BOLT - connecting rod
6шт.
7
1962867C2
BEARING LINER
BEARING - connecting rod
3шт.
8
1962869C1
BEARING SET
BEARING KIT - connecting rod, standard
3шт.
8
1962871C1
BEARING SET
BEARING KIT - connecting rod, 0.25 mm undersize
3шт.
8
1962873C1
BEARING SET
BEARING KIT - connecting rod, 0.50 mm undersize
3шт.
8
1962875C1
BEARING SET
BEARING KIT - connecting rod, 0.75 mm undersize
3шт.
9
1271963C1
GEAR WHEEL
GEAR - crankshaft, front
1шт.
10
1962876C1
CRANKSHAFT
- engine
1шт.
11
1962877C1
PULLEY
- crankshaft
1шт.
12
1282748C1
NUT
- crankshaft
1шт.
13
1962878C1
WASHER
- flat
1шт.
14
892-11020
LOCK WASHER,M20
WASHER, LOCK, M20
1шт.
15
1271974C1
KEY
- Woodruff, 5 x 19 mm
2шт.
16
1962879C1
FLYWHEEL
ASSEMBLY - crankshaft (Prior to P.I.N. 17657689)
1шт.
16
1963587C1
FLYWHEEL
ASSEMBLY - crankshaft (P.I.N. CCJ0028001 and after), Includes: Ref. 17
1шт.
17
1962880C1
GEAR WHEEL
GEAR - ring
1шт.
18
1271833C2
FLANGE BOLT,Hex Wshr Hd, M12 x 1.25 x 29mm
BOLT - flywheel
5шт.
19
1273355C91
BEARING, BALL,15 mm ID x 32 mm OD x 9 mm
BEARING ASSEMBLY - ball
1шт.
Note - 1273355C91 Bearing, Flywheel Pilot - 1963857C1 Flywheel, New Production
1шт.
20
1962881C1
AXLE PIN
PIN - dowel (Prior to P.I.N. 17657689)
2шт.
