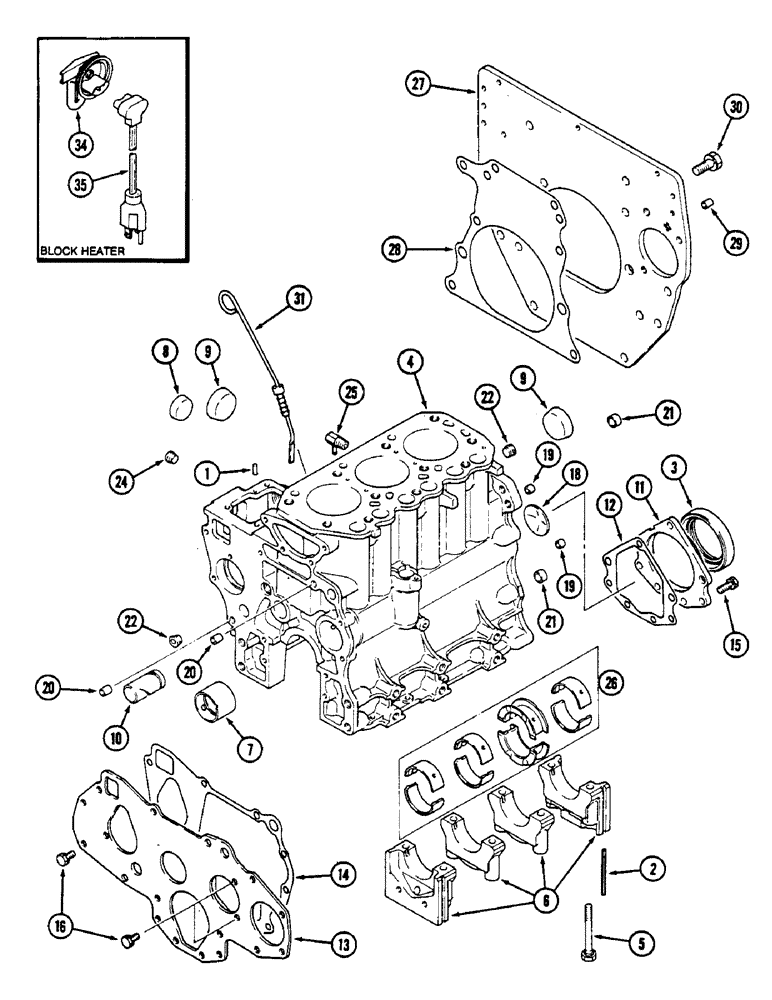

Запчасти Case IH 275 (2-18) - CYLINDER BLOCK (02) - ENGINE

1962922C1

ENGINE ASSEMBLY

Mittsubishi, subs to 1962801C1, K3M-13R

1шт.

1

30991R1

DOWEL,M4 x 10

PIN - dowel, hardened, 4 mm OD x 10 mm

2шт.

2

1271776C1

SEAL

SEAL - end bearing cap, side

4шт.

3

1273127C1

OIL SEAL

SEAL - oil

1шт.

4

1962801C1

BLOCK

ASSEMBLY - cylinder, Includes: Ref. 5 - 9

1шт.

5

1271825C1

BOLT,Hex, M10 x 1.25 x 81mm

BOLT - bearing cap

8шт.

6

NSS

NOT SOLD SEPARAT

CAP - bearing (Order 1962801C1)

4шт.

7

1962802C1

CAMSHAFT BEARING

BUSHING - camshaft

1шт.

8

1962803C1

PLUG

- tapered cup, 35 mm

2шт.

9

30734R1

PLUG,M45, Tapered

- tapered cup, 45 mm

2шт.

10

1271781C1

SHAFT HOUSING

SHAFT - idler

1шт.

11

1962804C1

CASE

RETAINER - oil seal

1шт.

12

1962795C1

GASKET

- oil seal (Replaces 1962805C1)

1шт.

13

1962806C1

PLATE ASSY.

PLATE - front

1шт.

14

1962807C1

GASKET

- front plate

1шт.

15

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

7шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

7шт.

16

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

3шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

18

1962808C1

PLUG

- expansion

1шт.

19

1271786C1

SPACER

- bushing, 8 mm OD x 9 mm long

2шт.

20

1271787C1

SPACER

- bushing, 8 mm OD x 13 mm long

12шт.

21

1271788C1

SPACER

- bushing, 12 mm OD x 9 mm long

2шт.

22

444699

PLUG,Hex Soc, 3/8"-18

- hex socket, brass, 3/8 PT

2шт.

24

444693

PLUG,Hex Soc, 1/4"-18, Brass

- hex socket head, 1/4 - 18 automotive PT

1шт.

25

1271724C1

ELBOW UNION

ELBOW - water drain

1шт.

26

1962811C1

CRANK

LINER SET - main bearing, crankshaft, standard

1шт.

26

1962813C1

BEARING SET

LINER SET - main bearing, crankshaft, 0.25 mm undersize

1шт.

26

1962815C1

BEARING SET

LINER SET - main bearing, crankshaft, 0.50 mm undersize

1шт.

26

1962817C1

BEARING SET

LINER SET - main bearing, crankshaft, 0.75 mm undersize

1шт.

27

1962819C1

PLATE ASSY.

PLATE - rear

1шт.

28

1962820C1

GASKET

- rear plate

1шт.

29

1962821C1

AXLE PIN

PIN - dowel

2шт.

30

1273131C1

BOLT,Hex, M10 x 1.25 x 40mm

BOLT - hex, with washer, M12 x 28 mm

6шт.

31

1962822C1

GAUGE ASSY.

DIPSTICK - oil level

1шт.

245565C1

STRIPPER PACKAGE

HEATER ASSEMBLY - cylinder block, Includes: Ref. 34 & 35

1шт.

34

NSS

NOT SOLD SEPARAT

ELEMENT - heater (Order 245565C1), block

1шт.

35

NSS

NOT SOLD SEPARAT

CORD ASSEMBLY - heater (Order 245565C1), block

1шт.
