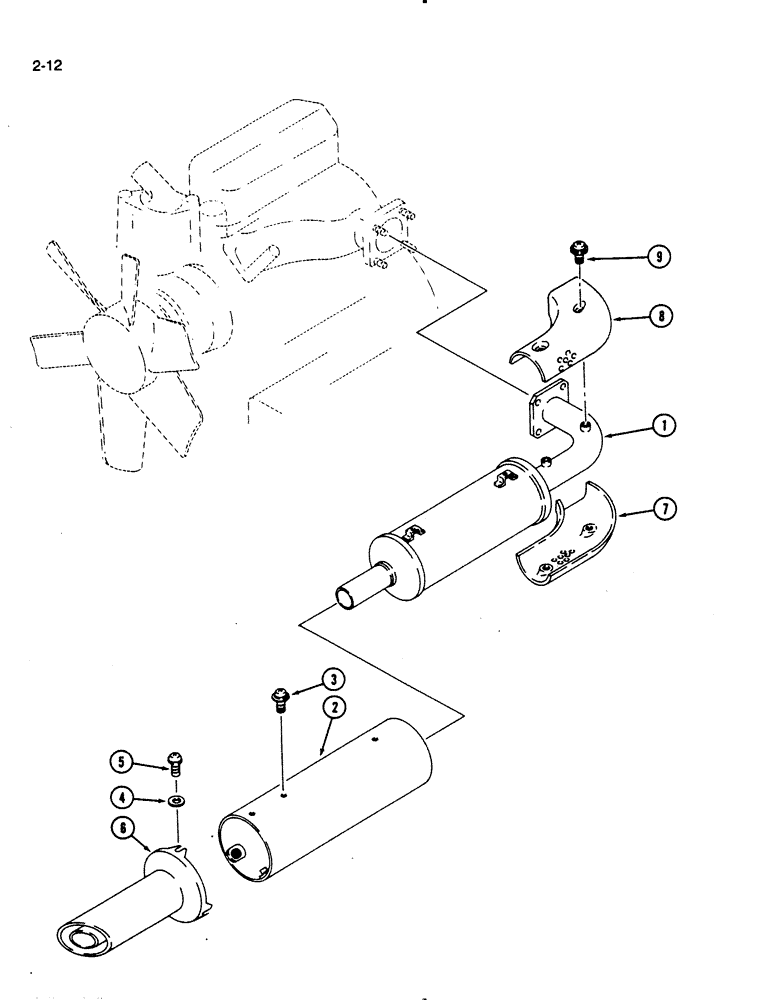

Запчасти Case IH 275 (2-12) - EXHAUST MUFFLER, HORIZONTAL (02) - ENGINE

1

1961832C1

MUFFLER

ASSEMBLY - exhaust, Includes: Ref. 2 - 5 and washers

1шт.

2

1269757C1

HOUSING

COVER

1шт.

3

30497R1

SCREW,Cross Pan Hd, M6 x 12

- pan head cross recess, M6 x 12 mm, Grade 4.8

4шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

896-16006

WASHER,6.4mm ID x 14.5mm OD x 2.5mm Thk

4шт.

4

896-16006

WASHER,6.4mm ID x 14.5mm OD x 2.5mm Thk

3шт.

5

30497R1

SCREW,Cross Pan Hd, M6 x 12

- pan head cross recess, M6 x 12 mm, Grade 4.8

3шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

3шт.

6

1269758C1

PIPE

- exhaust, horizontal

1шт.

7

1269759C2

COVER ASSY

COVER - lower

1шт.

8

1269798C2

COVER ASSY

COVER - upper

1шт.

9

30497R1

SCREW,Cross Pan Hd, M6 x 12

- pan head cross recess, M6 x 12 mm, Grade 4.8

4шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

30210R1

WASHER,M6 x 14.5 x 2.5, HT

- flat, 1/4 x 35/64 x 3/32 inch (6 x 14 x 3 mm)

4шт.

896-16006

WASHER,6.4mm ID x 14.5mm OD x 2.5mm Thk

4шт.
