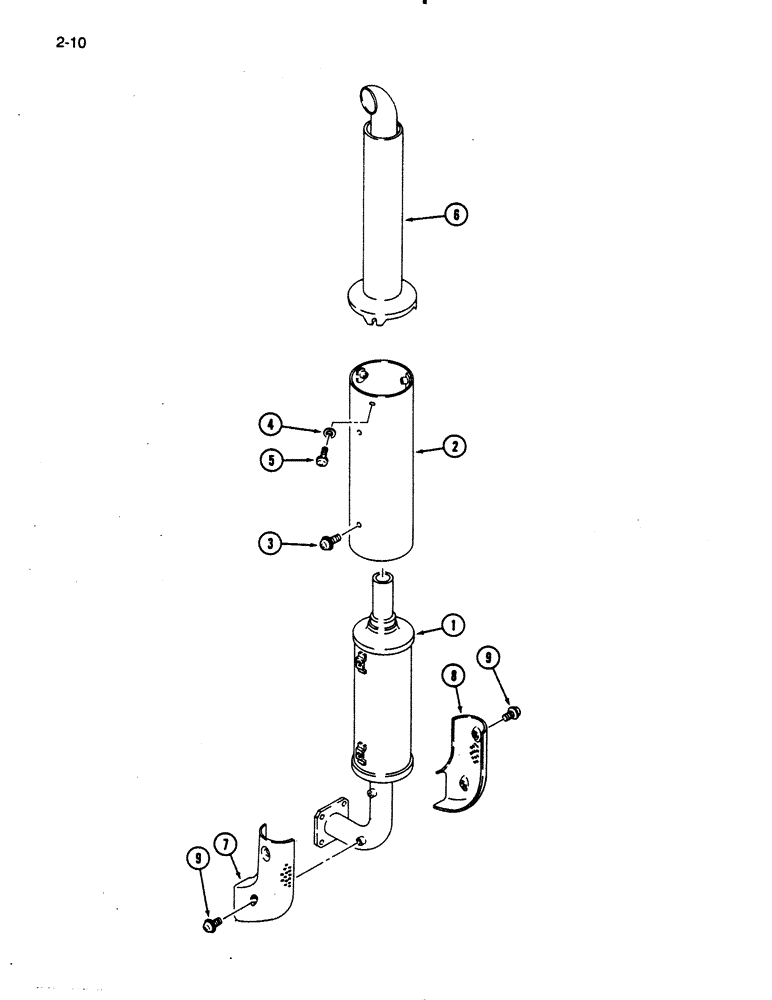

Запчасти Case IH 275 (2-10) - EXHAUST MUFFLER, VERTICAL (02) - ENGINE

1

1961832C1

MUFFLER

ASSEMBLY - exhaust, Includes: Ref. 2 - 5 and washers

1шт.

2

1269757C1

HOUSING

BODY - muffler body

1шт.

3

30497R1

SCREW,Cross Pan Hd, M6 x 12

- pan head cross recess, M6 x 12 mm, Grade 4.8

4шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

896-16006

WASHER,6.4mm ID x 14.5mm OD x 2.5mm Thk

4шт.

4

896-16006

WASHER,6.4mm ID x 14.5mm OD x 2.5mm Thk

3шт.

5

30497R1

SCREW,Cross Pan Hd, M6 x 12

- pan head cross recess, M6 x 12 mm, Grade 4.8

3шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

3шт.

6

1273016C2

PIPE

COVER - tail pipe

1шт.

7

1269759C2

COVER ASSY

COVER - front

1шт.

8

1269798C2

COVER ASSY

COVER - rear

1шт.

9

30497R1

SCREW,Cross Pan Hd, M6 x 12

- pan head cross recess, M6 x 12 mm, Grade 4.8

4шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

896-16006

WASHER,6.4mm ID x 14.5mm OD x 2.5mm Thk

4шт.
